Audiolab 8300XP 140W per channel Stereo Power Amplifier. Available with Online Finance and Free Delivery.

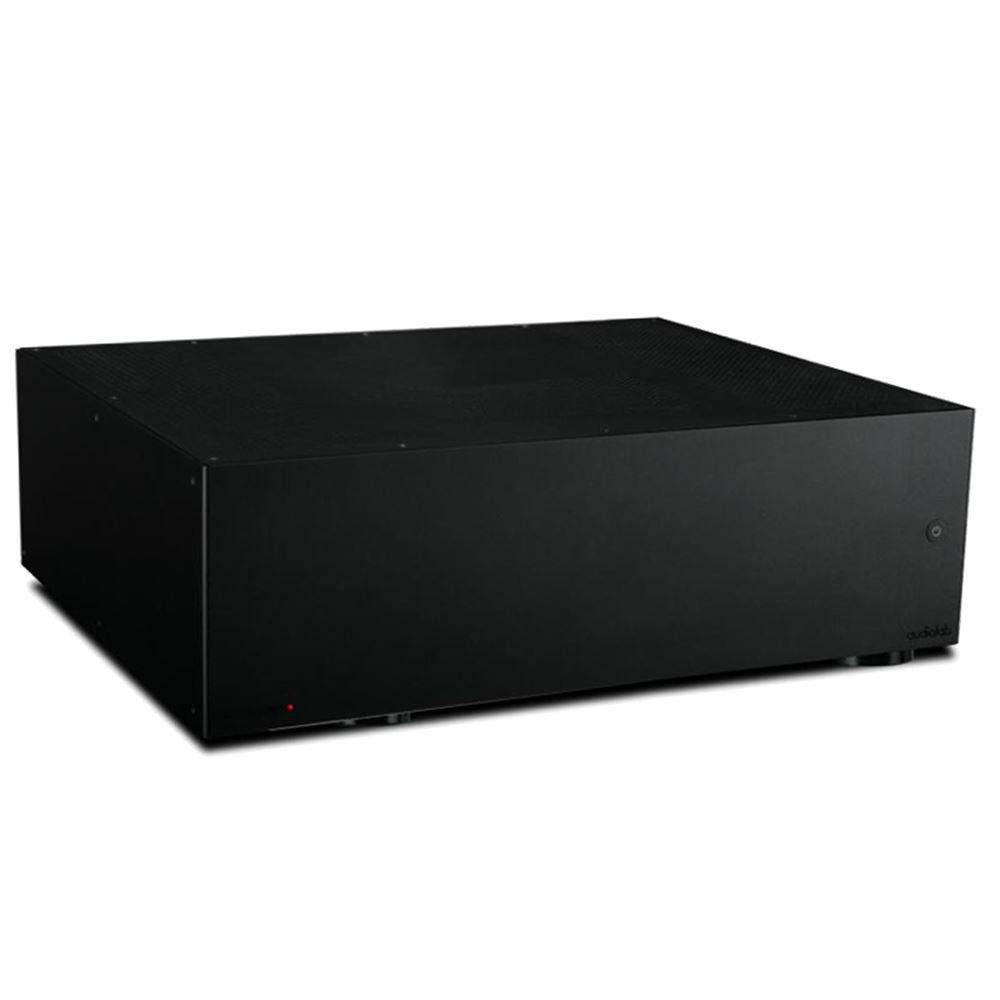

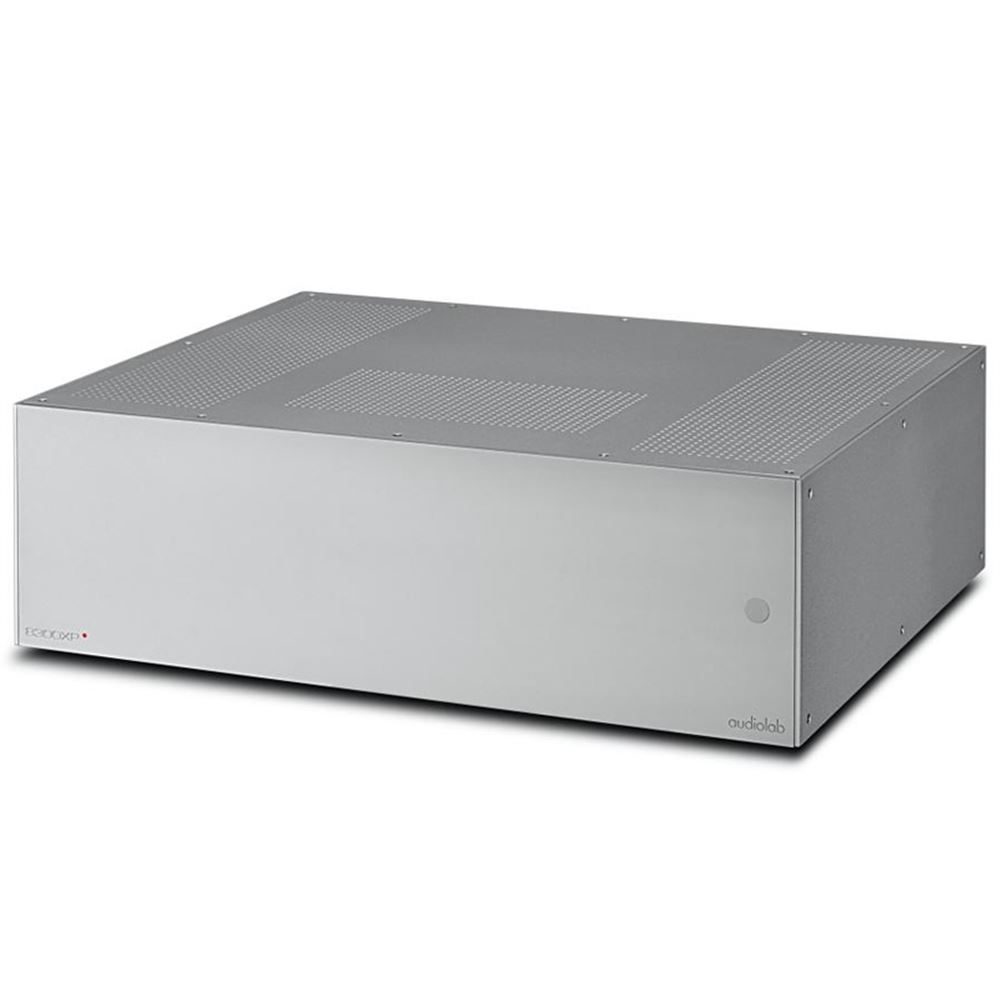

The 8300XP is a classic Audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior.
Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining Audiolab’s class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

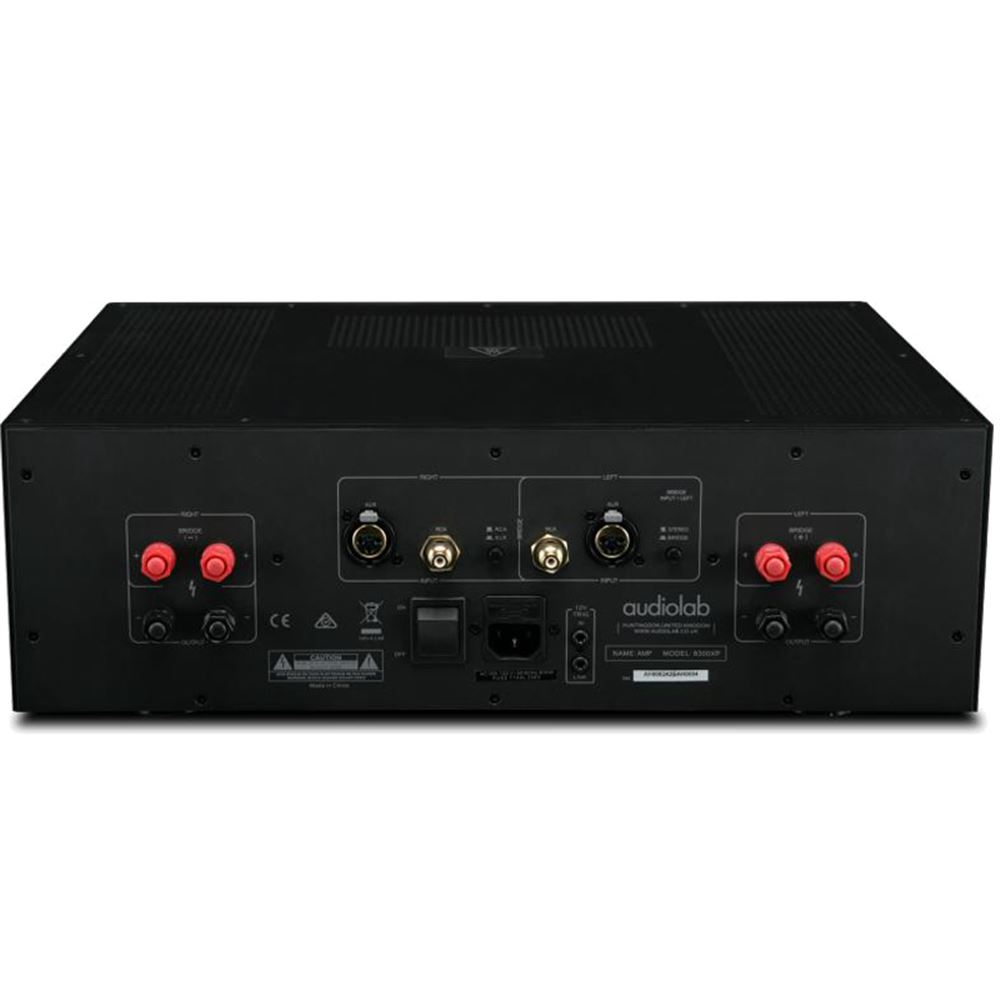

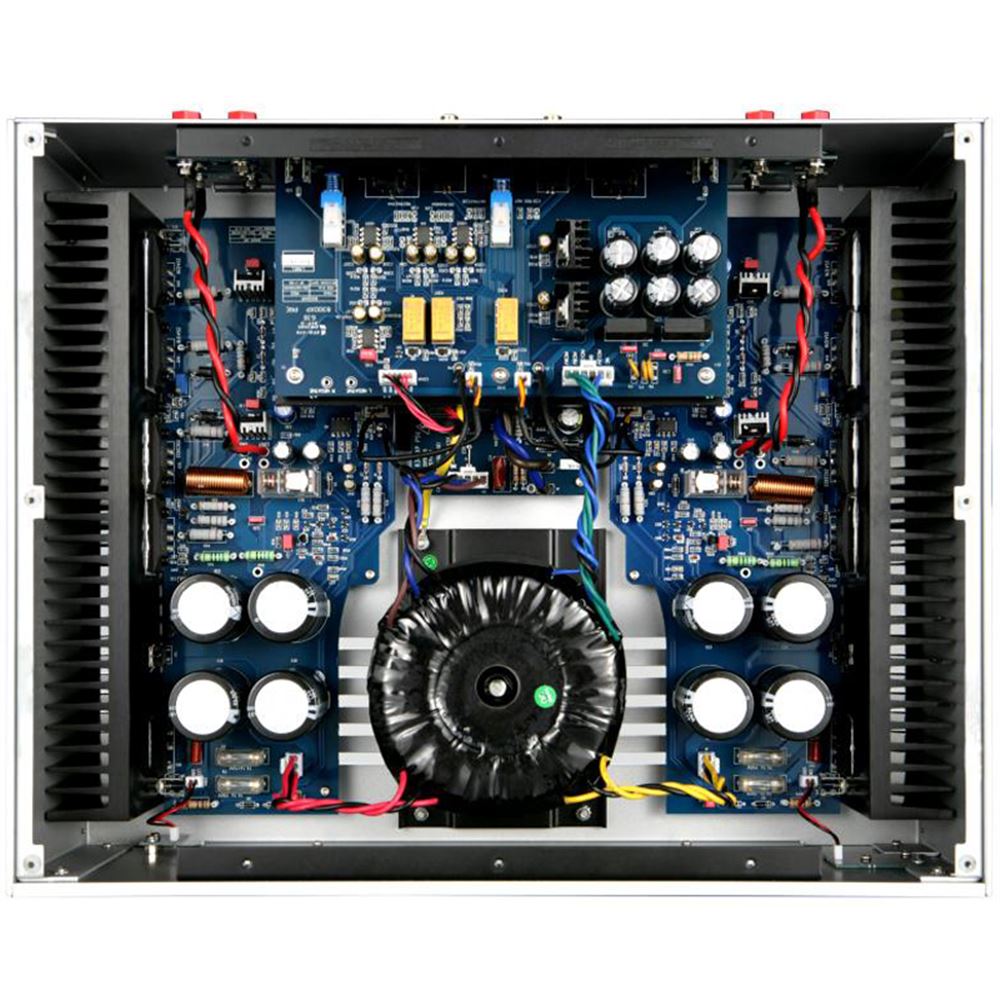

Exemplary build quality and reliability ensure that this is a power amp for all seasons, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.
Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All Audiolab amplifiers are gain-matched, ensuring perfect integration with other Audiolab components.
Specifications
Rate power output 140W RMS (8O <1% THD, 1kHZ stereo), 230W RMS (4O <1% THD, 1kHZ stereo), 480W RMS (8O <1% THD, 1kHZ bridge)
Gain 29dB @ 1kHz (stereo), 36dB @ 1kHz (bridge)
Input sensitivity 1100mV
Input impedance 15k (balanced) 10k (unbalanced)
Frequency response -3dB 20Hz - 80KHz, +/-1dB 20Hz - 30KHz
Total harmonic distortion (THD) 0.004% (20W, ref. 1kHZ)
Intermodulation distortion (IM) 0.004% (20W, ref. 7kHz + 60Hz)
Transient inermodulation distortion (TID) 113dB (A Weighted, ref. 140W)
Signal-to-noise ratio (S/N) 140W / 113dB
Damping factor 160
Power Requirement 240V ~ 50-60Hz, 230V ~ 50-60Hz, 115V ~ 50-60Hz, 100V ~ 50-60Hz
Dimension (mm) (WxHxD) 444 x 149 x 367
Carton Size (mm) (WxHxD) 550 x 260 x 580
Weight 16Kg (Net) 18.5Kg (Gross)
