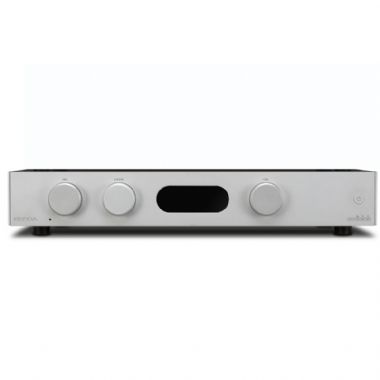

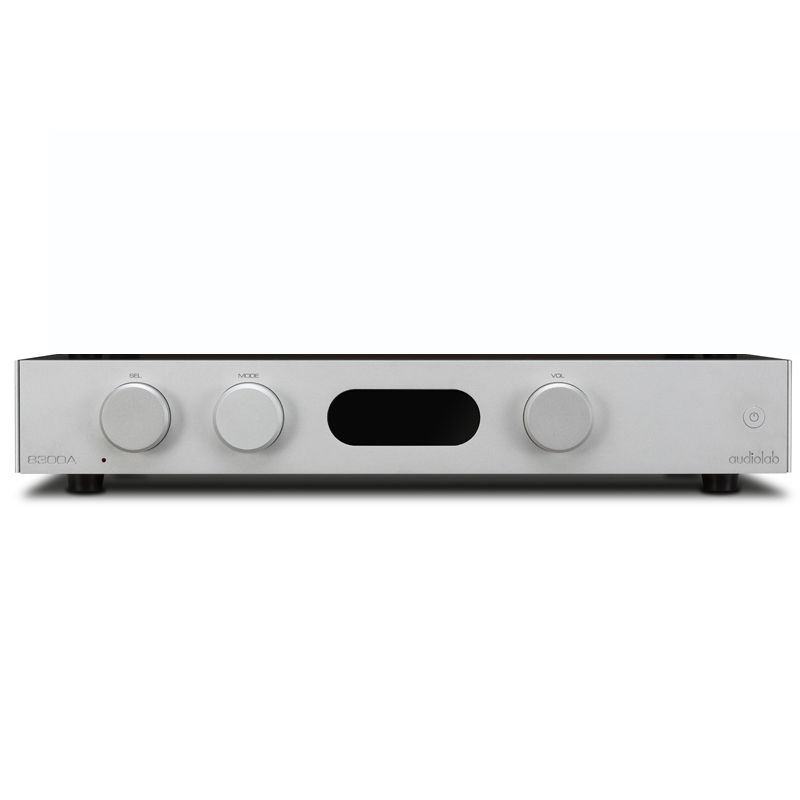

Audiolab 8300A Stereo HiFi Amplifier with Phono Stage Available with Online Finance and Free Delivery
Completely redesigned from scratch, our new integrated amplifier, the 8300A is miles ahead of what was already an industry-leader. Higher power, an additional phono stage and new Audiolab styling means the amplifier is more stylish and more versatile than ever. Most importantly it's new, ultra-efficient circuitry and streamlined components create a listening experience which brings new definition to your favourite music.
Specifications
Rated max power output , THD < 1% 2 x 75W RMS (8 ohm) , 2x115W (4 ohm)
(Vmains = 230V , THD < 1%)
Core Technology Dual Mono Power Amp Design
Peak output current +/- 15A
Display OLED 128x64 pixels 2.7"
Frequency response +/- 0.1dB (10Hz – 20KHz)
+/- 3.0dB (1Hz – 100KHz)
Channel Imbalance < 0.2dB (10Hz – 20KHz)
Controls Logarithmic Ladder Volume Design
Finish Fine Textured Aluminium (Black / Silver)
Total harmonic distortion (THD) < 0.002% (Power Out = 50W @ 1KHz, BW = 20 – 20KHz)
Standby Feature Yes
Signal-to-noise ratio > 107dB (BW = 20 – 20KHz )
>109dB(A-weighted, BW = 20 – 20KHz)
12v Trigger Yes
Damping factor >100 (8ohm Load @ 1KHz)
Inputs 1 x RCA
Pre-Amplifier Section
Outputs 2 x Binding Post Terminal
Inputs CD,Vide,Tuner,AUX1,AUX2,XLR (Balanced) & Phono (MM/MC)
Dimensions (H x W x D) 80 (inc. feet) x 444 x 330.3mm (inc. connectors / controls)
Outputs 2 x RCA
Weight 7.8kg
Input sensitivity (Phono RIAA) 3.4mV (MM) , 340uV (MC)
Input impedance (line inputs) 50K // 100pF
Input impedance (phono inputs) 47K // 100pF (MM), 100R // 1.5nF (MC)
Input Voltage (Line) 3.5V max. (< 0.02% THD)
Output voltage 2.3V max. (< 0.02% THD)
Output impedance 120 ohm
Frequency response (Line) +/- 3.0dB (1Hz - 100kHz)
Frequency response (Line) +/- 3.0dB (1Hz - 100kHz)
Frequency response (Phono RIAA) +/- 1.0dB (20Hz - 20kHz)
Channel Imbalance < 0.2dB (10Hz - 20kHz)
Total harmonic distortion (THD)-Line <0.001%
Total harmonic distortion (THD)-Phono <0.002%
Signal-to-noise ratio (Line) (Volume = 0dB , Vin=1V, BW=20-20KHz ) > 107dB
> 109dB(A-weighted)
Signal-to-noise ratio Phono (MM) (Volume = 0dB , Vin=3mV , Rs=1K, BW=20-20KHz) > 73dB
> 78dB(A-weighted)
Signal-to-noise ratio Phono (MC)
(Volume = 0dB , Vin=300uV , Rs=0R, BW=20-20KHz) > 68dB
> 73dB(A-weighted)
Crosstalk < 80dB (L-> R & R->L @10KHz)
Power amplifier Section
Gain 29dB (20Hz-20KHz)
Input Sensitivity 840mV (Power Out = 70W into 8ohm)
Input impedance 15K // 100pF
.
