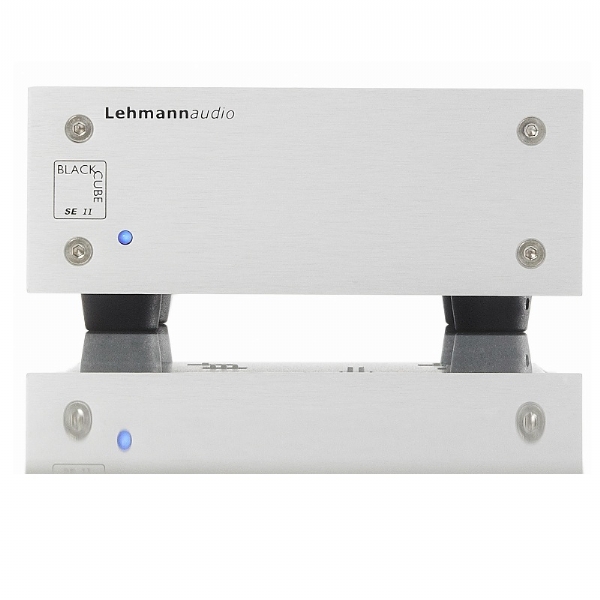

The Lehmann Black Cube SE II Phono Pre Amplifier comes with top notch technology that points towards higher price points, like all Lehmannaudio electronics.

The input stages used in the this device can also be found in top notch mixing consoles or in well known professional microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors to realize an artefact-free transport of microdynamics and room information. The switches for gain and load settings have gold plated connectors for reliable performance.

A true audiophile phono stage
The maximum gain of the Black Cube SE II is high enough for even very low output MC cartridges. Cartridge adaption itself is totally flexible because gain and lading can be chosen independently from each other. To top this all off, there is a slot for a custom impedance resistor, so that even the most exotic MC cartridges can be loaded adequately without having to buy expensive impedance plugs. No soldering needed.

Because of the small outer dimensions, the SE II audio section can be placed next to the turntable. This minimizes loss due to cable length.

Lehmannaudio always pays special attention to details: the cable between power supply and audio section is shielded and ensures flexible placement of audio section and PWX power supply. The cases of both th power supply and the audio section are made of non-magnetic aluminum; additionally equipped with a top cover coated with a special anti-resonance treatment for better suppression of microphonic effects.

A brand new feature that is built into the SE II is the entirely passive bass filter, that is a great help when tayloring the lower corner frequency of the vinyl reproduction to personal needs. 16 different filter curves can be realized.

Technical Data:

Input Stage: Dual Mono Microphone Pre-Amp
            (Chip Newest Generation)
Gain Settings: 36dB, 46dB, 56dB, 66dB
Max. Gain 66dB
Internal Impedance: 47k, 1k, 100 R
Internal Input Capacitance
            & Cap Type:
100 p
            Kp 1%
Soft Bass Rolloff Filter: 16 Different Settings For
            Optimized Configuration Of High Pass Filter, DIP-Switch
            Configurable
High Gain: Yes, Dip Switch
RIAA Filter Caps: MKP
Bass Coupling After RIAA: MKP
Second Gain Stage: Dual Mono Burr Brown OPA 134
Output Capacitor: MKP
DC Output Jumper:

Yes

.

Black Cube SE II

"This is a true audiophile phono stage and, partnered with equipment of equal quality, the results are remarkable."

Lehmann Black Cube SE II Phono Stage

£925.00
This product is now sold out and cannot be purchased.
Click here to view our full range of Lehmann products
From £13.66 per month

  Delivery Standard Shipping and Click & Collect

  Payment Secure payment available
