SME V-12 Series 5 12" Precision Turntable Pick Up Tone Arm

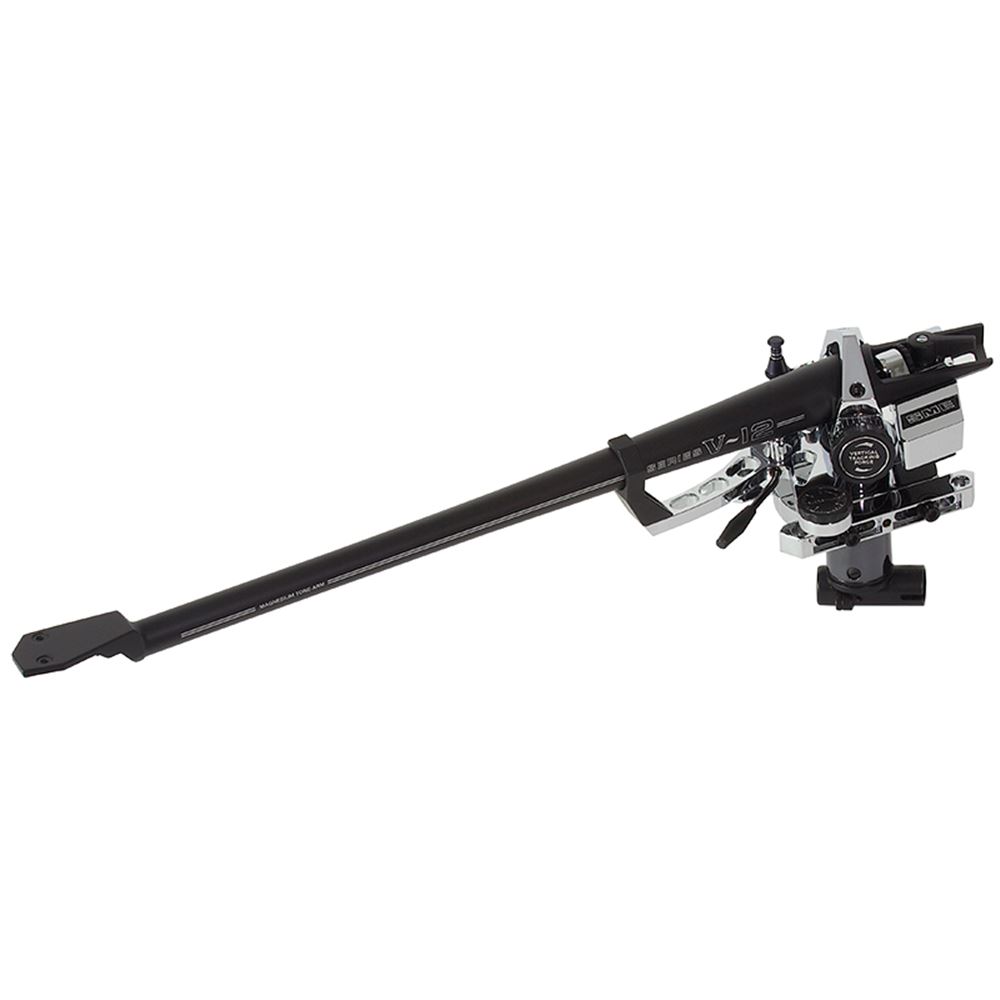

SME V 12 Chrome

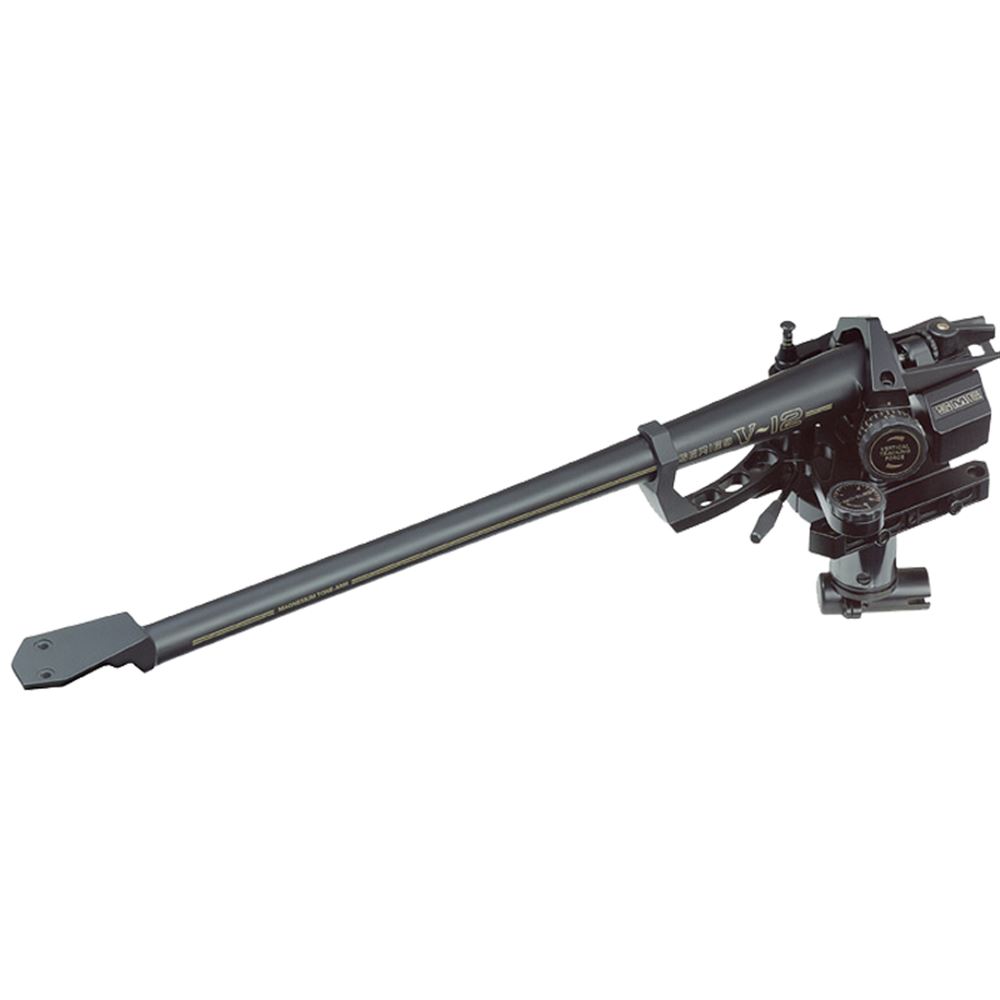

SME V 12 Black

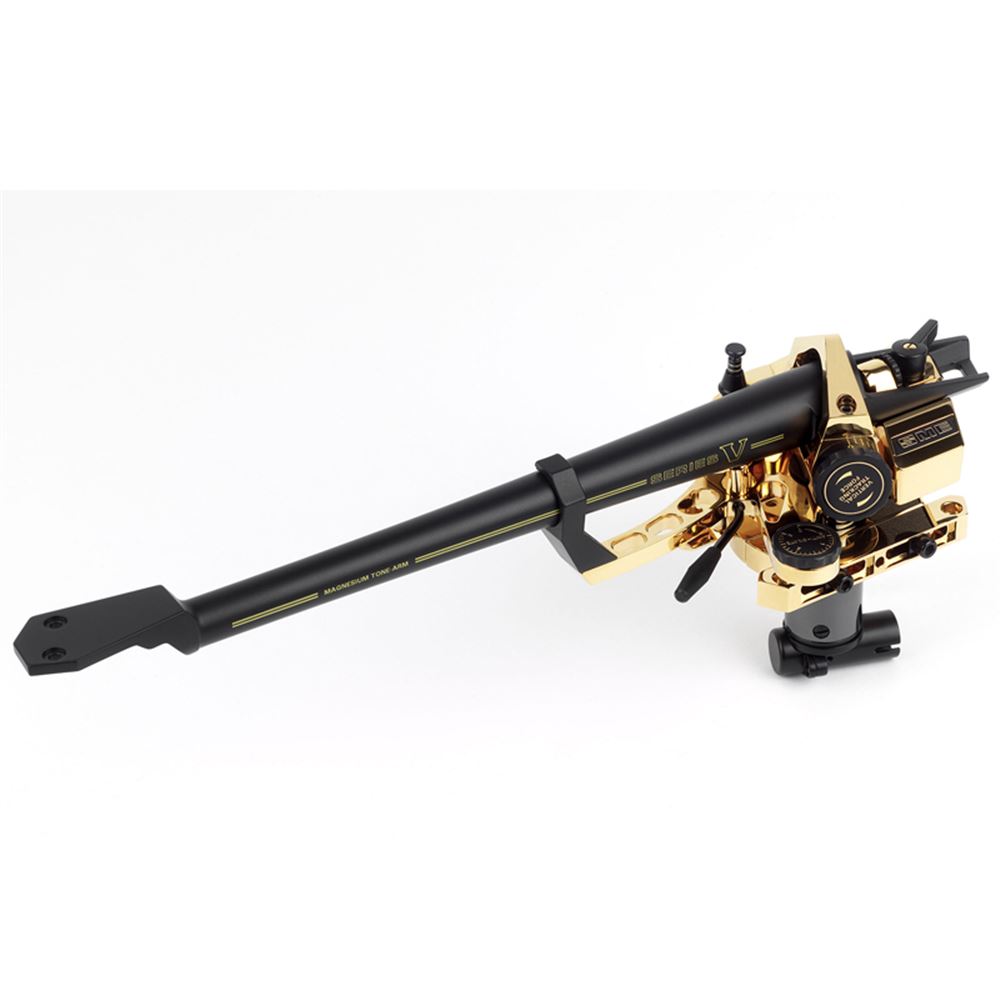

SME Gold Plated Detail

Swipe the images above to see more shots

(based on 0 review(s))

Click here to write a review

Price: £5800.00



SME V-12 Series 5 12" Precision Turntable Pick Up Tone Arm Available with Online Finance and Free Delivery

Based on the multi-award winning Series V pick-up arm, the Series V-12 incorporates the same design and engineering that have made SME a byword for excellence. Coherent musical control is held over the entire frequency range in terms of tonal quality, stability and stereo imaging. Startling dynamic range, neutrality, structurally inert, the Series V-12 embodies every worthwhile feature in a pick-up arm.

The 12 inch tone-arm is pressure die-cast in magnesium complete with an Integrated headshell to eliminate tone-arm resonances in the audio spectrum and offers a 27% reduction in maximum angular error distortion over 9 inch models. Listening: the benefits of minimal tracking error and harmonic distortion are clearly revealed.

The 12in pressure die-cast tone-arm utilises the advantages of magnesium and exploits the reduction in maximum tracking error/distortion afforded by the greater arm length when compared with 9in models.
Internal constrained layer damps minute residual vibration leaving the tone-arm acoustically inert.
Fine machined cartridge platform, enamel free to avoid interface resonance.
Stainless steel cross shaft, ground and thread ground. Carried in massive yoke on Ø10mm precision ball races. Axes at record mean level to minimise warp-wow.
Dynamic balance. Graduated vertical tracking force control applies up to 3.0g x 0.125g VTF through resonance controlled spring.
Stainless steel vertical shaft, ground and thread ground, with integral Ø16mm flange to couple shaft and yoke.
Ø23mm steel pillar, heat treated, ground and honed, carries two Ø17mm precision ball races, widely spaced to resist tilt.
Anti-skate control operates through tension spring and filament. Dial corresponds with VTF and has a positive OFF position.
Lowering/raising control gives smooth positive action. Height of lift can be adjusted.
Subsonic lateral-mode damper can be instantly adjusted or cancelled.
Dual-lock base provides movement control with high rigidity.
Tungsten-alloy balance carried on two-point suspension. Extra-low inertia design assists warp riding.
Underslung weight housing corrects centre of gravity and provides non-reflective tone-arm termination.
Swivelling, damped output socket minimises vibration transmission in sub-chassis use.
Fine adjustment of horizontal tracking angle (HTA).
Reference lines on tone-arm facilitate VTA setting.
Fine adjustment of horizontal tracking angle (HTA).
Alignment protractor designed to provide HTA setting with greater accuracy.
Advanced jig/template system guarantees correct positioning.

A special chrome finish option is available for the Series V-12 and a gold plated option.
