Wharfedale Diamond A2 Active Floor Standing Speakers inc H1 Hub. Available with Online Finance and Free Delivery.

Wharfedale Diamond Active Series couple innovative, convenient wireless technology with an award-winning loudspeaker formula for tremendous bass delivery and scintillating high frequencies.
There is no need for bulky amplifiers and trailing wires anymore.

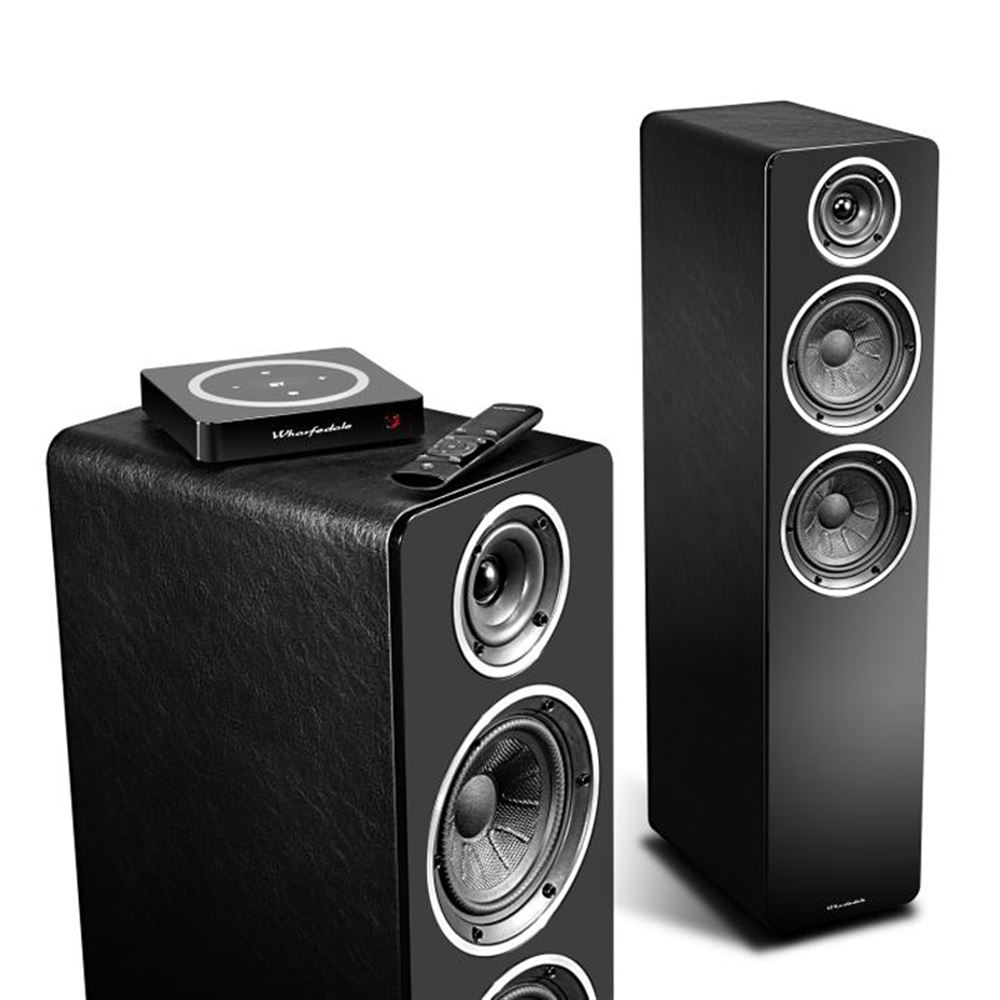

The Diamond A2, is the larger floorstanding speaker in the series at 91.2cm high. The Diamond A1 is the smaller ‘bookshelf’-size speaker (31.5cm high) in the range. The Diamond A2 speakers are supplied in a pair with accompanying Diamond H1 Hub. Within each speaker is a 50W amplifier in each speaker to deliver a combined ‘system power’ of 100W.

How Do They Work?
Wharfedale’s Diamond Active Series speakers work differently to conventional wireless or powered speakers. They include an advanced wireless hub, to which the playback device is paired via Bluetooth (with support for the sonically superior aptX codec). The H1 hub then conveys the left and right audio signals to the appropriate speaker via uncompressed wireless transmission, allowing greater freedom in terms of positioning. As well as removing the need for the speakers to be connected together via a cable – that’s why we call it ‘true wireless’ – the fact that each speaker incorporates its own 50W amplifier helps to ensure consistent, fully optimised stereo sound.

To enable interference-free wireless transmission, the H1 hub avoids the often-crowded 2.4GHz frequency band, focusing on 5.8GHz instead. The intelligent wireless module has the ability to switch automatically between frequencies when required, thus avoiding any local interference wherever the speakers are sited. Each speaker may be placed up to 20m from the hub, giving exceptional positioning flexibility; the only other siting requirement is that both speakers, with their dedicated amplifiers, need to be plugged into the mains.

Drivers
The Diamond A2 sports two proprietary 165mm bass/mid drivers, made with woven Kevlar – as featured in the Diamond 200 Series. The cone incorporate semi-elliptical ‘break-up’ areas, which smooth the response throughout the audible range, while rear-firing reflex ports augment the bass.

The 25mm fabric dome tweeter is also derived from the Diamond 200 Series, incorporating a precision-drive magnet system and a meticulously designed waveguide around the diaphragm for optimal dispersion. The drive units are combined via a sophisticated crossover network, specifically developed to optimise the performance of the Diamond Active speakers’ integrated amplifier/driver configuration, delivering a cohesive performance that is bold and engaging, yet also impressively refined.

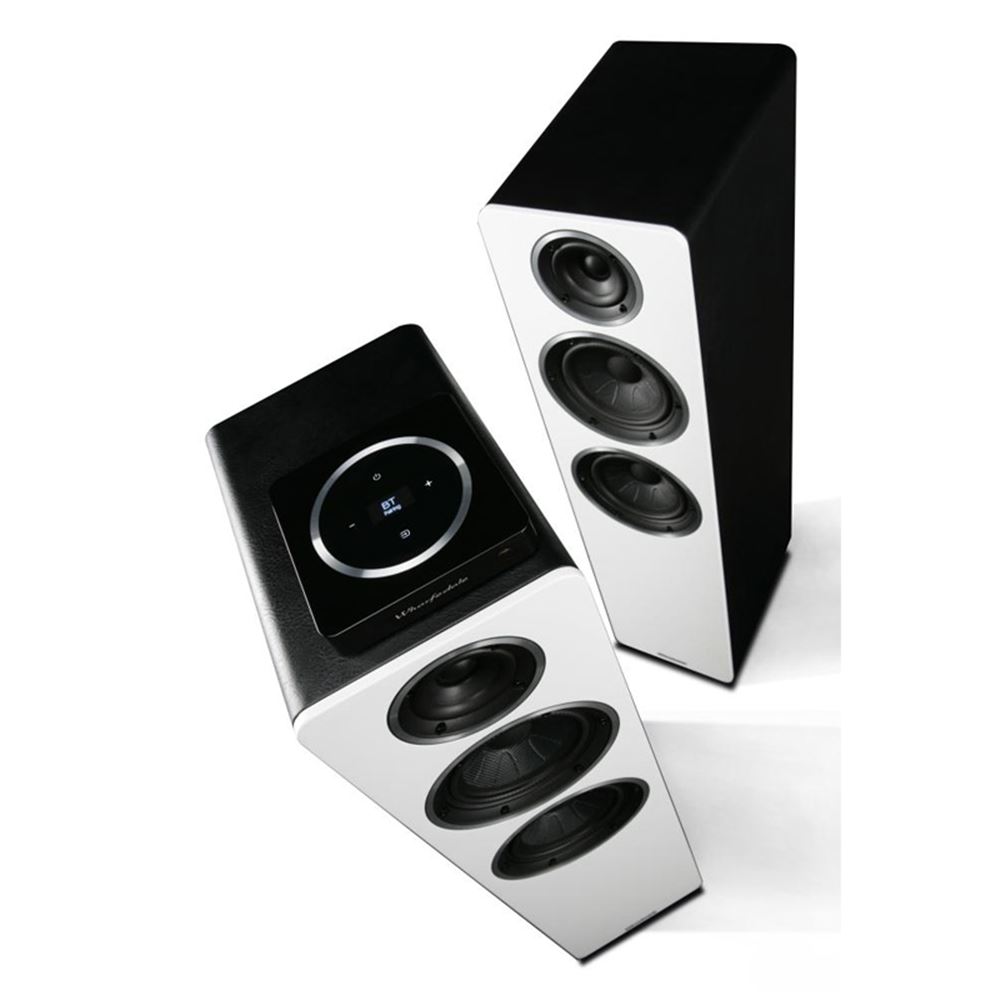

All Diamond Active Models are available in a choice of Black Leatherette with High Gloss White or a High Gloss Black Front Baffle.

Specification
Design philosophy and core technology 5.8GHz True Wireless technology
+/- 6dB Bass Control
Balance Function
Mode selector: Left/Mono/Right
Digital Amplifier with DSP

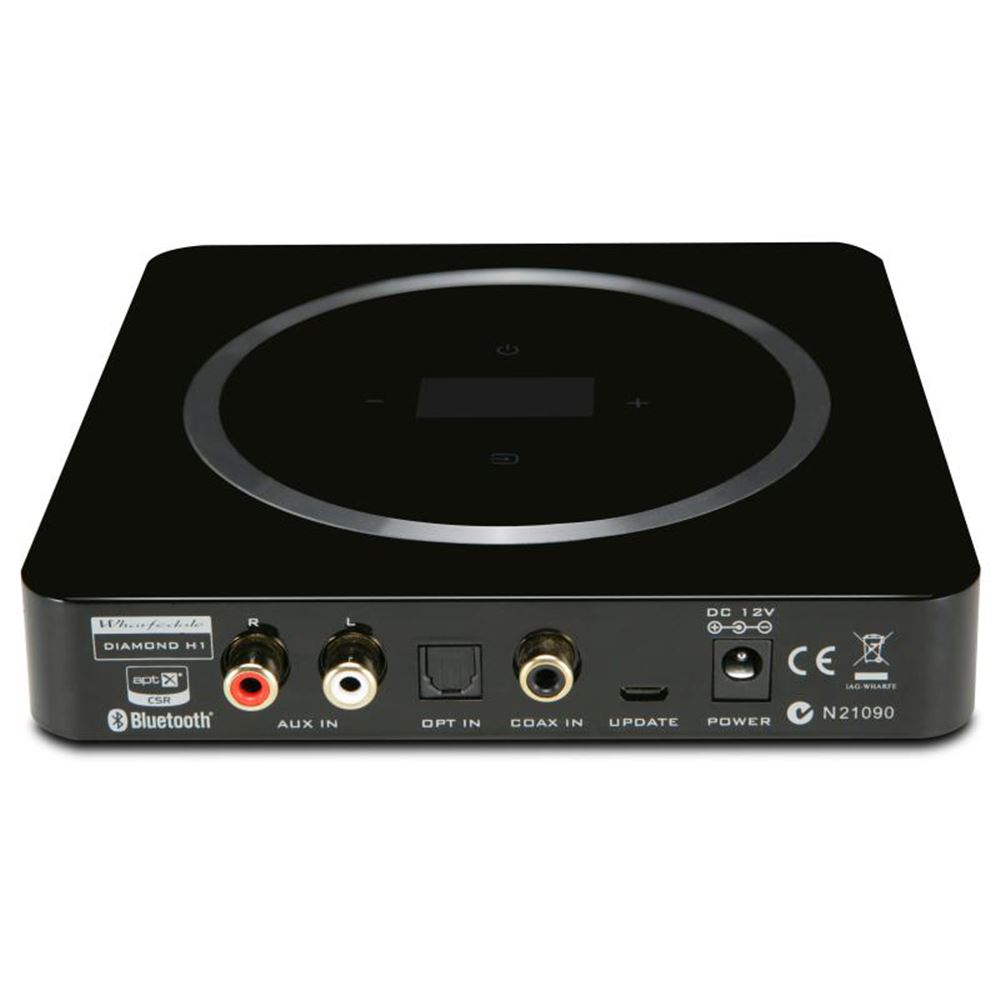

Digital Input 1 x Coaxial, 1 x Toslink Optical
Analog Input RCA x 2
Bluetooth Input aptX (Priority), SBC
Input sensitivity 350mV
Signal frequencies 5.2/5.8GHz wireless uncompressed
Sampling rate for digital inputs Up to 24bit / 96kHz
Wireless reception distance 20m
Enclosure type bass reflex
Transducer complement 2.5-way
Drivers 165mm Woven Kevlar Woofer x 2 / 25mm Soft Dome Tweeter
System power output 100W
Peak SPL 96dB
Frequency response (+/-3dB) 40Hz – 20KHz
Bass extension (-6dB) 35Hz
Crossover frequency 2.8kHz
Speaker Finish Black Leatherette with High Gloss White / Black Front Baffle

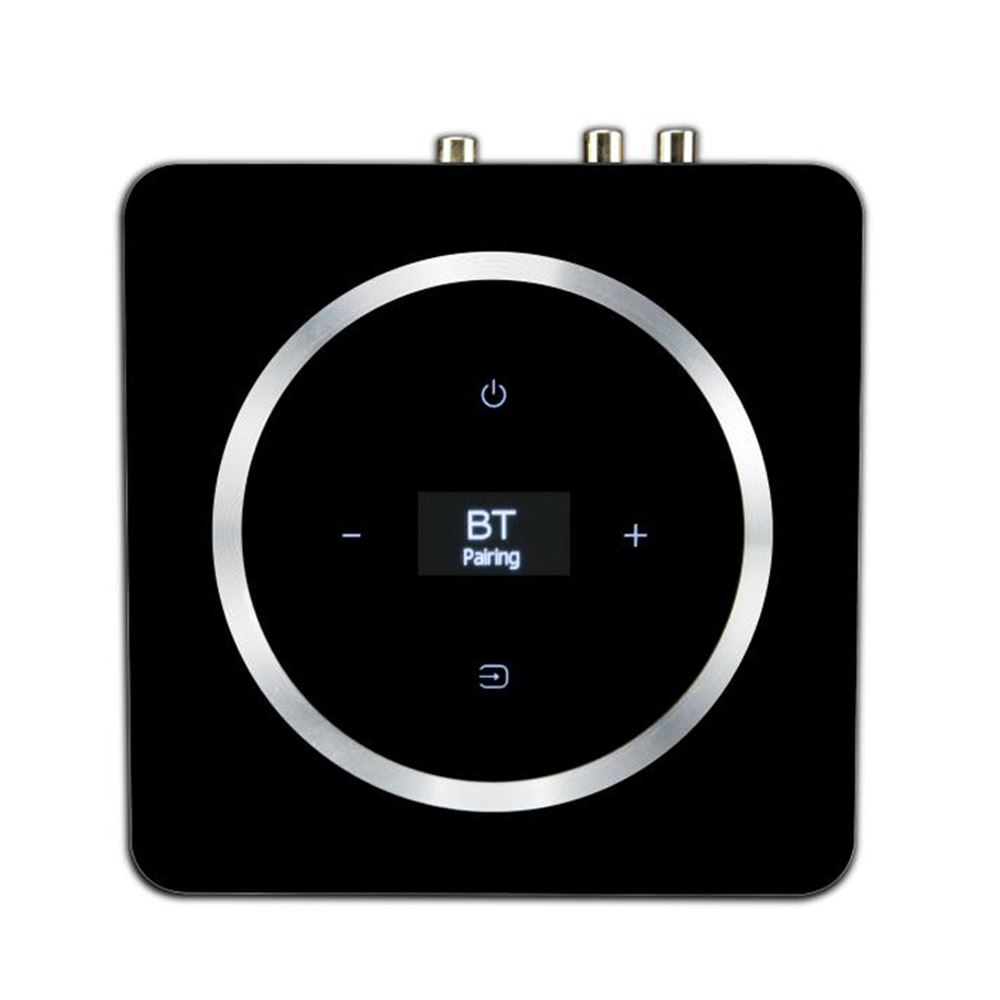

Hub Finish High Gloss Black with Touch Sensitive Display
Speaker Dimensions & Weight (each)
Cabinet Volume 38L
Height (on feet) (912+25)mm
Width 210mm
Depth (300+10)mm
Net Weight 18.8 Kg
Hub Dimensions & Weight
Height 28.8mm
Width 150mm
Depth 156mm
Net weight 0.46kg



Wharfedale Diamond A2 Active Floor Standing Speakers inc H1 Hub

£999.00
