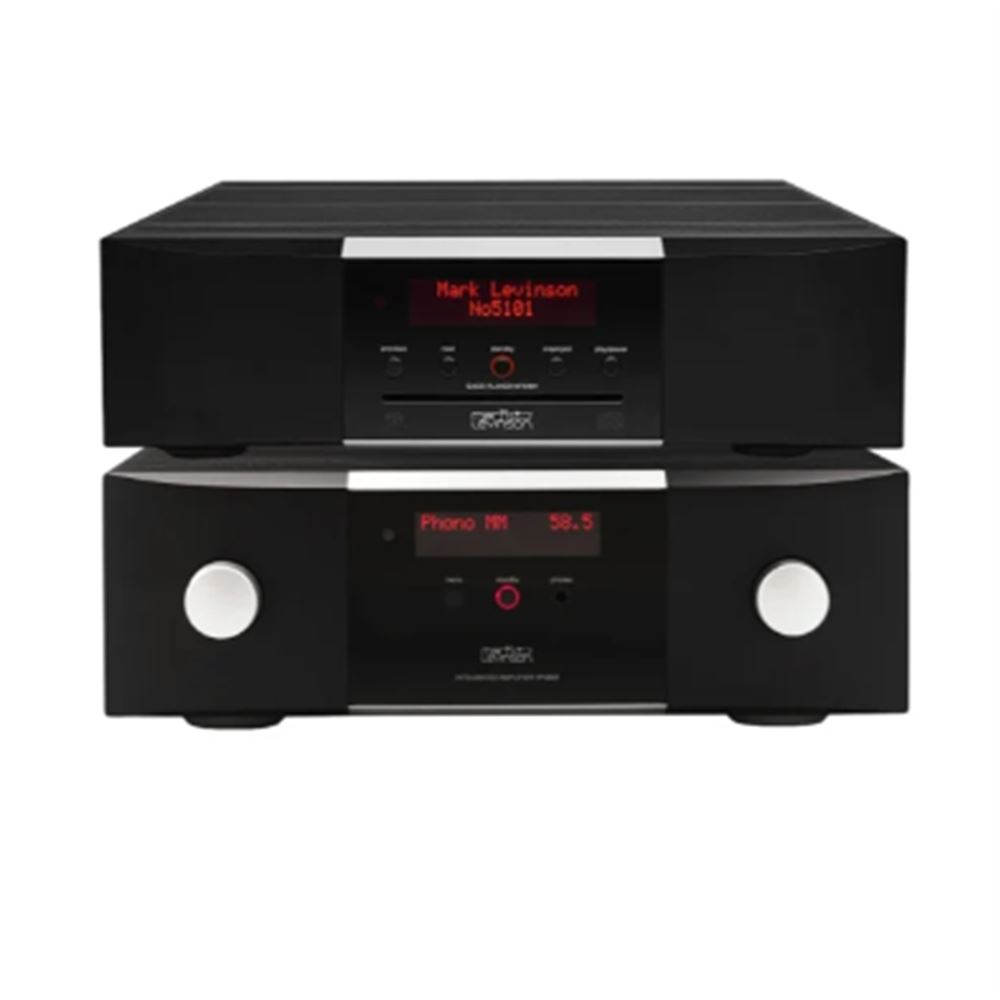

Mark Levinson No.5101 with 5805 CD, Streamer and Amplifier Trade-In Offer

No. 5101 CD Player and Streamer  Combines audiophile physical compact disc formats with modern high resolution network streaming capabilities over Ethernet and WiFi, a standalone PrecisionLink II DAC and expansive control features, the Nº 5101 is a unique 3-in-1 solution.

Digital Audio
The Nº 5101 features outstanding digital audio capability with the Mark Levinson PrecisionLink II DAC. The latest generation ESS PRO Sabre 32-bit D/A converter with jitter elimination circuitry and a fully balanced, discrete current-to-voltage converter form the heart of the digital audio processing stage. Five digital audio inputs are provided: one coaxial and one optical S/PDIF, and USB for playback of high resolution PCM (up to 24 bit/192k, Network (WiFi and Ethernet) for streaming from a NAS drive which supports FLAC, WAV, AIFF, OGG, MP3, AAC and WMA, and an SACD input which supports disc formats including SACD, CD-A, CD-R and CD-RW.

Analogue Output Stage
The Nº 5101 utilizes proprietary Mark Levinson PurePath circuitry- a fully discrete, direct-coupled, dual-monaural line-level output circuit for exceptional reproduction of the analog signal, which is delivered to the balanced XLR stereo outputs as well as the single ended RCA connectors. A linear power supply with an oversized toroidal transformer is employed to ensure the widest bandwidth and dynamic range possible.

Control
System integration and communication ports include IP (Ethernet), RS-232, IR input, and 12V trigger input. A newly designed, aluminum IR remote is included with the Nº 5101. In addition, drivers are available for major control systems.

Industrial Design
Robust materials, lavish finishes and bold geometry are hallmark attributes of Mark Levinson designs. The one- inch thick, bead-blasted, black-anodized, solid aluminum front panels are machined and contoured to flow seamlessly into the sleek glass display, which itself is recessed into a bead-blasted, clear-anodized aluminum bezel.

The iconic hourglass knobs are machined with a gently curved profile softly transitioning into a rounded front, bead-blasted and clear anodized, with feet to match. With debossed top cover vents, screen-printed logo and legends behind the glass panel, and machined aluminum buttons, no detail has been overlooked.

The Mark Levinson Nº5101 is proudly designed, engineered, and precision-crafted in the USA.

No. 5101 Highlights
3-in-1 companion source for Nº5805 or Nº5802 1. Slot Loading SACD Player 2. Network Streamer 3. DAC
Plays all disc formats, including SACD, CD-A, CD-R and CD-RW
Supports FLAC, WAV, AIFF, OGG, MP3, AAC and WMA
USB –A for USB Drive file playback
PrecisionLink II DAC
Linear power supply
ML PurePath analog output stage
Balanced and single-ended outputs
Optical and coaxial inputs
Ethernet and WiFi network streaming
RS232 control
Trigger and IR inputs
Handcrafted in the USA

Specifications

Signal to Noise Ratio, Single-ended            >94dB (wideband, unweighted, referred to 3V RMS output)
Signal to Noise Ratio, Balanced                  >106dB (wideband, unweighted, referred to 6V RMS output)
Power Consumption, Standby                     <0.4W
Power Consumption, Power On                    32W
Digital Audio Connectors                               1 optical digital input (Toslink), 1 coaxial digital S/PDIF input (RCA), 1 optical                         digital output (Toslink), 1                                                                            coaxial digital S/PDIF output (RCA)
Output Connectors                                        1 pair single-ended line level (RCA), 1 pair balanced line-level outputs (XLR)
Control and Network Connectors                  1 RS-232 port (DB9 connector), 1 IR input (1/9"/3.5mm phone jack), 1 12V DC trigger                         input (1/8"/3.5mm                                                                        phone jack), 1 Ethernet port (RJ-45 connector), 1 USB-A connector,                         1 Wi-Fi antenna connector (SMA                                                                              receptacle)
Wireless Format                                            2.4GHz, 802.11b/g/n
Supported File Types                                    FLAC, WAV, AIFF, OGG up to 24 bit.192kHz; DSF, DFF up to 5.6MHz (DSD128/DSD 2X); AAC                         up to 24                                                                          bit/96kHz; MP3 up to 320kbps/48kHz; WMA up to 192kbps/48kHz
Dimensions (H x W x D)                                4.97" x 17.25" x 18.36" (126 x 438 x 466mm)
Height Without Feet                                      4.5" (114mm)
Weight                                                           25.5 lb (11.5kg)
Packed Dimensions (H x W x D)                  11" x 27" x 24" (279 x 686 x 610mm)
Packed Weight                                              35.7 lb (16.2kg)

No. 5805 Integrated Amplifier

ANALOGUE INPUT STAGE
The foundation of the Nº 5805 is its proprietary PurePath signal path- a fully discrete, direct-coupled, dual-monaural line-level preamp circuit, for which the Shelton design team has two patents pending. A unique single gain stage mated to a digitally controlled resistor network for volume adjustment maintains maximum signal integrity and widest possible bandwidth. Each of its three stereo line level inputs—one balanced XLR and two single-ended, using custom Mark Levinson RCA connectors—has its own individual high-reliability signal switching relays.

A newly designed Phono stage features a hybrid gain topology, mating key discrete components from the acclaimed Nº 500 series Pure Phono stage with low-noise integrated circuits for high performance at lower cost. Also like the Nº 500 series, a hybrid active/passive RIAA equalizer employs precision resistors and polypropylene capacitors for exceptional accuracy and sonic clarity. The user can select MM/MC gain and infrasonic filter from the setup menu, while capacitive and resistive loading settings are easily accessed from the rear panel.

AMPLIFICATION

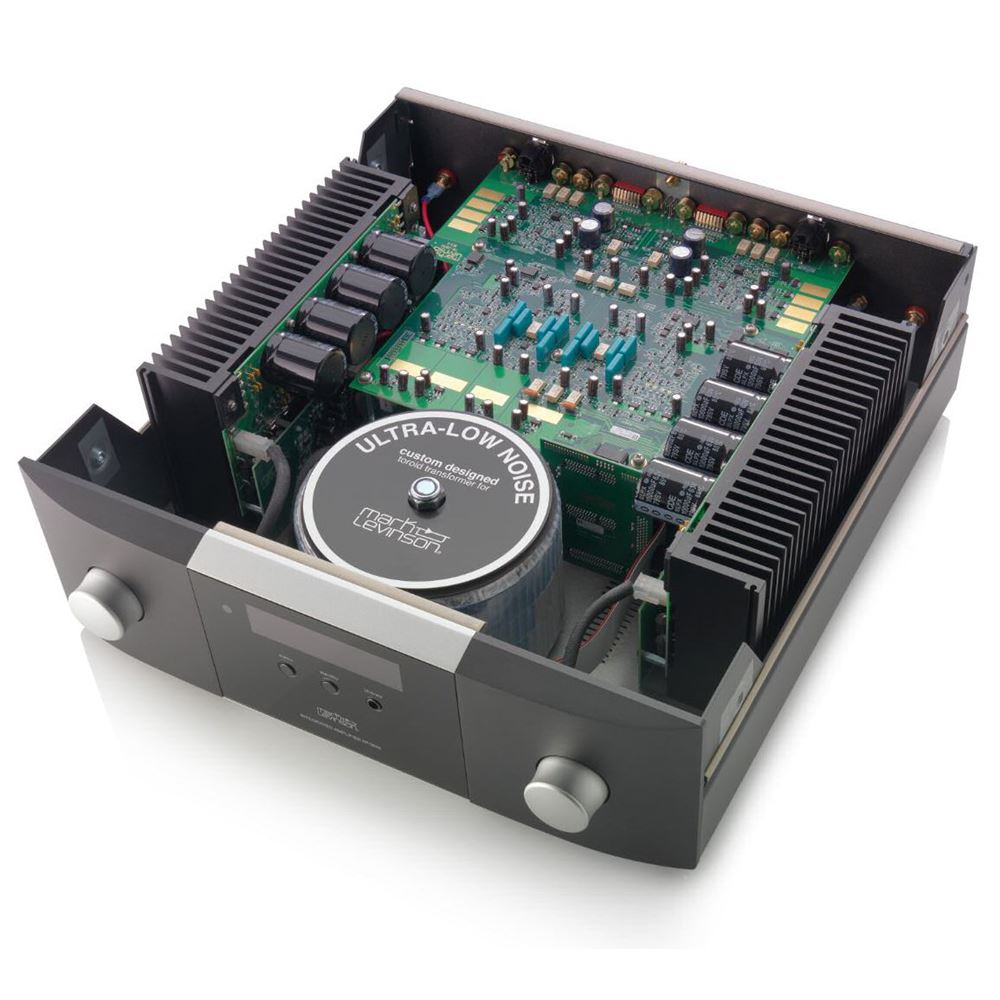

The fully discrete, direct-coupled, class AB amplifier channels get their power from an oversized (500 VA) toroidal transformer with individual secondary windings for the left and right channels. The voltage gain stage employs a topology directly descended from the acclaimed Nº 534 amplifier, which is mated to an output stage comprising two high-speed driver transistors operating in class A and six 260V, 15A output transistors. Two Thermal-Trak devices in a unique configuration guarantee stable output bias regardless of load or temperature. Four 10,000-microfarad capacitors per channel, located directly on the output stage circuit board, easily provide enough current for a conservative 125W/channel at 8 ohms, nearly 250W/channel at 4 ohms, and stable operation down to 2 ohms. Variable line-level RCA outputs allow system expansion and flexibility.

DIGITAL AUDIO
Building upon the superb analog platform, the Nº 5805 adds equally outstanding digital audio capability with the Mark Levinson PrecisionLink II DAC. The latest generation ESS Sabre 32-bit D/A converter with jitter elimination circuitry and a fully balanced, discrete current-to-voltage converter form the heart of the digital audio processing stage. Four digital audio inputs are provided: one coaxial and two optical S/PDIF, and one asynchronous USB for playback of high resolution PCM (up to 192kHz/32 bits) and DSD (up to DSD 5.6) files. The No 5805 includes MQA (Master Quality Authenticated) technology, which enables playback of MQA audio files and streams. A Bluetooth receiver equipped with AptX-HD enables the highest quality Bluetooth playback available.

CONTROL
System integration and communication ports include Ethernet, USB, RS-232, IR input, and 12V trigger input and output. A newly designed, solid aluminum IR remote is included with the Nº 5805. Finally, an internal webpage allows setup, import and export of configurations, and software updates using a PC and standard web browser. In addition Drivers are available for Crestron, RTI, Control 4, Savant, AMX, and URC.

BOLD NEW INDUSTRIAL DESIGN
Robust materials, lavish finishes, and striking geometry are hallmark attributes of Mark Levinson designs. The one-inch thick, bead-blasted, black-anodized, solid aluminum front panels are machined and contoured to flow seamlessly into the sleek glass display, which itself is recessed into a clear-anodized aluminum bezel.

The iconic Mark Levinson hourglass knobs are redefined – machined with a gently curved profile transitioning into a rounded front, with feet to match. With debossed top cover vents, screen-printed logo behind the glass panel, and aluminum buttons, no detail has been overlooked. An elegant 5000 Series custom aluminum IR remote control is included.

Specifications
Physical characteristics
Weight                28.1kg
Dimensions (HxWxD)        145 x 438 x 507mm
Shipping Weight            33.0kg
Shipping dimensions (HxWxD)    330 x 610 x 711mm

Technical specifications
Power output            125W
THD                <0.01%,1kHz | <0.03%, 20 kHz
Frequency response        20Hz to 20kHz
S/N Ratio            >96dB (20Hz to 20kHz | >93dB (20Hz to 20kHz)
Input sensitivity        Line input: 53mV RMS |Speaker output: 2.83V RMS
Input impedance            XLR 20kΩ | RCA: 10kΩ
Phono                MC/MM
Gain                8.5dB maximum
Sampling rate            384 kHz/32 bit PCM and DSD 11.2 MHz

Inputs/Outputs
Analog inputs            XLR x 1 | RCA x 2 | MC x 1 | MM x 1
Digital inputs            Optical x 2 | USB-B x 1 | Coaxial x 2 | XLR x 1
Analog outputs            RCA x 1 | Headphone x 1

Supported audio formats
Bluetooth            aptX HD

Connectivity
Ethernet            Yes

Included accessories
What's in the box        Remote Control
