The Pro-Ject Phono Box S3 B is a compact and affordable phono preamp, perfect for your HiFi setup. Compatible with both moving magnet and moving coil phono signals, it has a dual mono layout, balanced inputs, and fully symmetrical and discreet circuitry. Designed to be as minimalistic as possible, the layout is spacious, with all the controls spread out at an even distance so they can be easily distinguished.

You can command the Phono Box S3 B to be compatible with any cartridge, offering ultimate versatility and high-quality audio output when connected to any equivalent analog HiFi system. The Phono Box S3 B has four gain options, four capacitance options and five impedance options to tailor it to different turntables, cartridges, and styli.

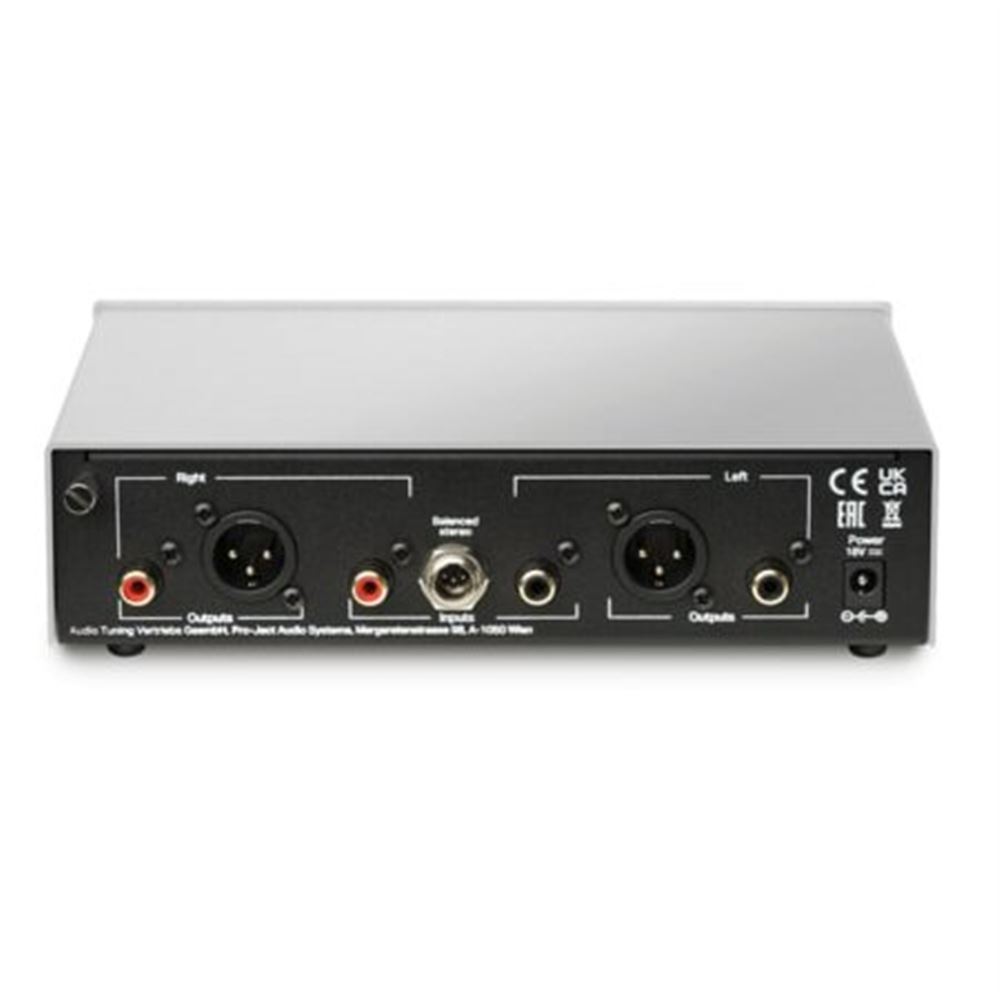

Housed in a robust steel chassis covered by sleek aluminium panels that provide electrical isolation, the Phono Box is as substantial as it is stylish. On the back of the preamp are the input and output connections consisting of two mono XLR outputs, two RCA out and in, and a stereo five-pin Mini XLR input. These connections are mono to ensure channel separation. You can use both channels as stereo left and right. Featuring an external power supply connected by a 12V DC input, the power supply introduces as little noise as possible to the preamp.

Specifications

Input impedance 10, 50, 100, 1k, 47k ohms

Input capacitance 50, 150, 300, 400 pF

Gain (+ 6dB using XLR Out) 40, 45, 60, 65 dB

SNR MM (40dB) 103dBV, 110dBV - ‚A‘ weighted

SNR MC (60dB) 85dBV, 90dBV - ‚A‘ weighted

THD at 1 kHz <0,001 MM, < 0,005 MC

THD (20Hz-20kHz) <0,008 MM, < 0,01 MC

RIAA-equalization curve accuracy <0,3dB / 20Hz - 20kHz

Subsonic filter at 20Hz with 18dB/octave

Input 1x 5-pin mini XLR / 1x pair RCA phono sockets

Line-level output 1x pair RCA, 1x pair XLR

Power supply DC 18V/500mA

Power consumption 18V/170mA DC, <0.5 W in standby

Dimensions 206 x 55 x 153 (164 with sockets) mm

Weight 930g without power supply

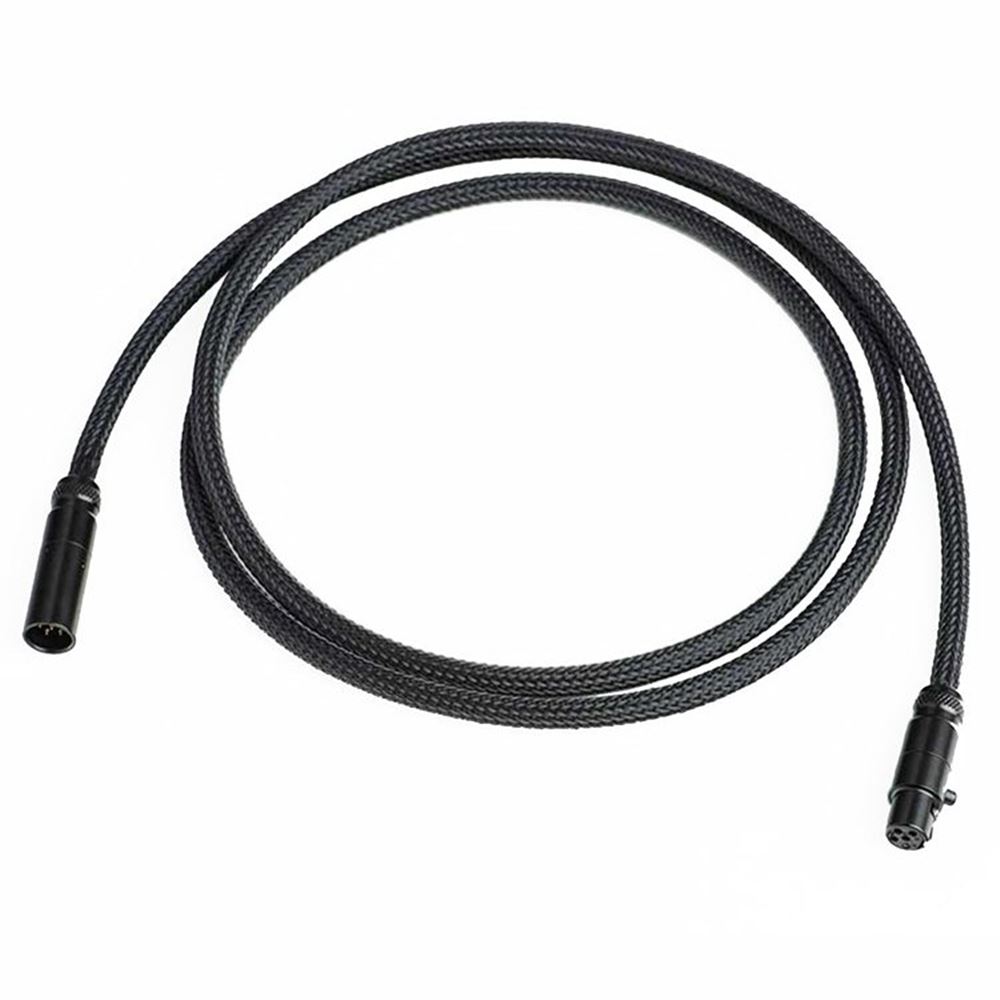

Project Connect-IT Phono S Mini XLR to Mini XLR Lead 1.23M - Product Description

The Connect IT Phono S Mini XLR cable is a balanced audio cable, designed to extract the most from your vinyl listening experience. Balanced audio connections are usually known from the professional sector like recording studios or live concerts. It is very important to have a stable & interference free connection, as these signals will be highly amplified. The same applies to the connection from your turntable to the phono preamplifier. The big advantage of a balanced connection is its ability to remove picked up noise and interferences. And best of all, cartridges by nature are already balanced signal transducers. With True Balanced you are simply using everything, literally everything, that your cartridge is picking up from the record groove. You are not throwing away half of the usable signal, like is done in typical single-ended RCA phono connections.
