SME Series 300 Precision Turntable Pick Up Arms

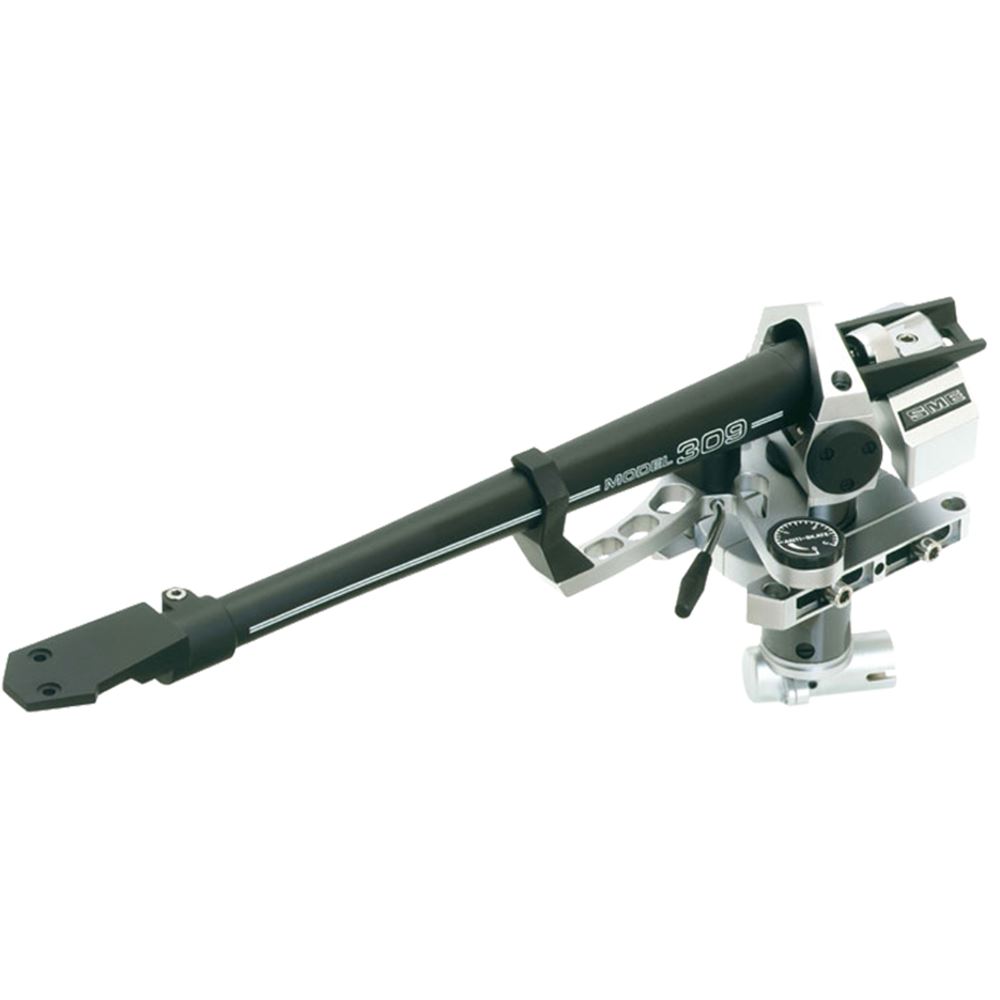

SME 309 ToneArm

Swipe the images above to see more shots

(based on 0 review(s))

Click here to write a review

Price: £1869.00

Please select your options and then add to basket



SME Series 300 Precision Turntable Pick Up Arms, Choose between SME 309 or 310 Arm types. Available with Online Finance and Free Delivery

The Series 300 broadens the application of SME technology.

One piece magnesium tone arm, available as Model 309 and Model 310.

The detachable magnesium headshell has a new style coupling, providing the convenience of rapid cartridge interchange without loss of rigidity.

Our designers can be justly proud of these models which offer a performance and manufacturing excellence unmatched by many more expensive models.

Unique pressure die-cast magnesium shell detachable and interchangeable without disturbing cartridge or wiring.
New design clamping arrangement ensures rigid junction with tone-arm.
Internal constrained layer damps minute residual vibrations making tone-arm acoustically inert.
Stainless steel cross shaft, ground and thread ground. Carried in massive yoke on 10mm precision ball races. Axis at record mean level to minimise warp-wow.
Unique assembly gives high rigidity and allows bearings to be critically adjusted before tone-arm is fitted.
Stainless steel vertical shaft, ground and thread ground, with integral 16mm diameter flange to couple shaft and yoke.
23mm diameter steel pillar, heat treated, ground and honed, carries two 17mm precision ball races, widely spaced to resist tilt.
Anti-skate control operates through tension spring and filament. Dial corresponds with VTF and has positive OFF position.
Lowering/raising control gives smooth positive action. Height of lift can be adjusted.
Dual-lock base provides movement control with high rigidity.
Tungsten-alloy balance weight carried on damped two-point suspension. Extra-low inertia design assists warp riding.
Underslung weight housing corrects centre of gravity and provides non reflective tone-arm termination.
Swivelling, damped output socket minimises vibration transmission in sub-chassis use.
Reference lines on tone-arm facilitate VTA setting.
Fine adjustment of horizontal tracking angle (HTA).
New design alignment protractor sets HTA with great accuracy.
Internal wiring in silver litz.
Balanced audio lead with gold plated phono plugs.

Distance from pivot to stylus SME309:  232.32mm    SME310:  238.50mm
Distance from pivot to turntable centre SME309:  215.35mm SME310:  222.0mm
