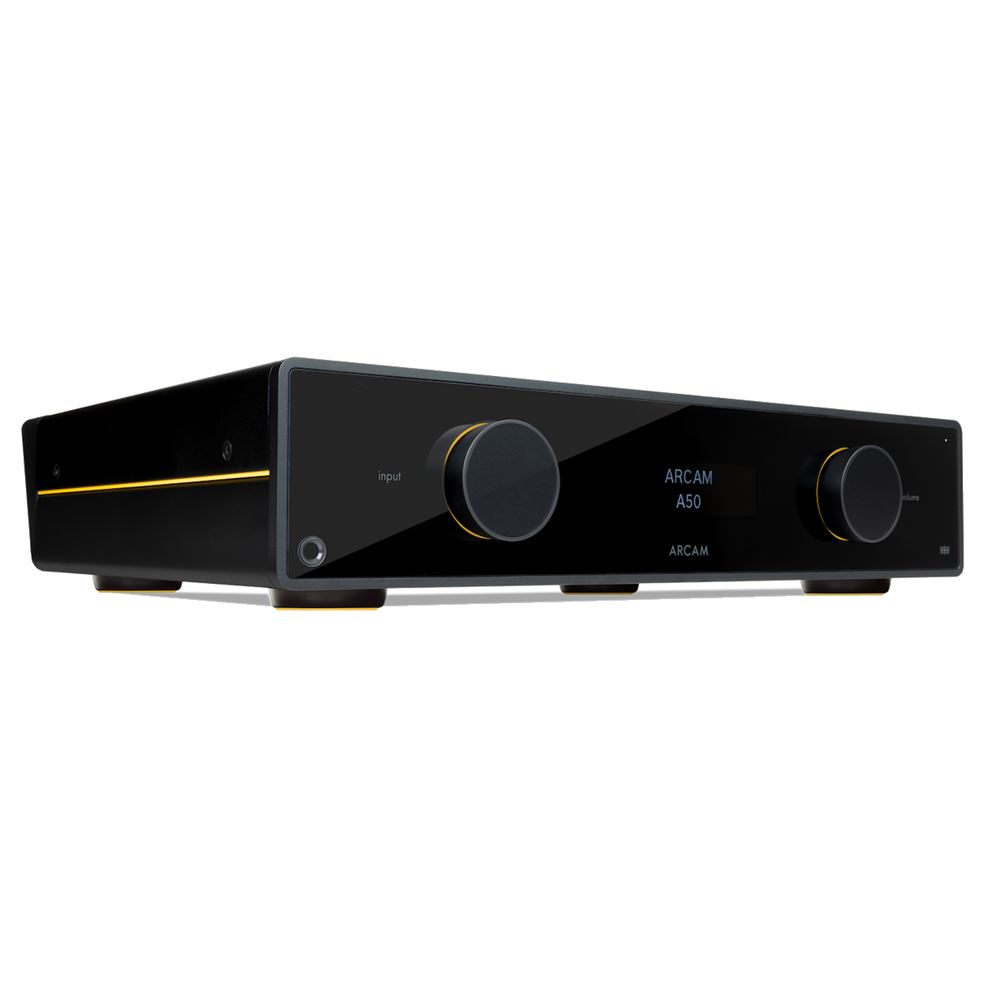

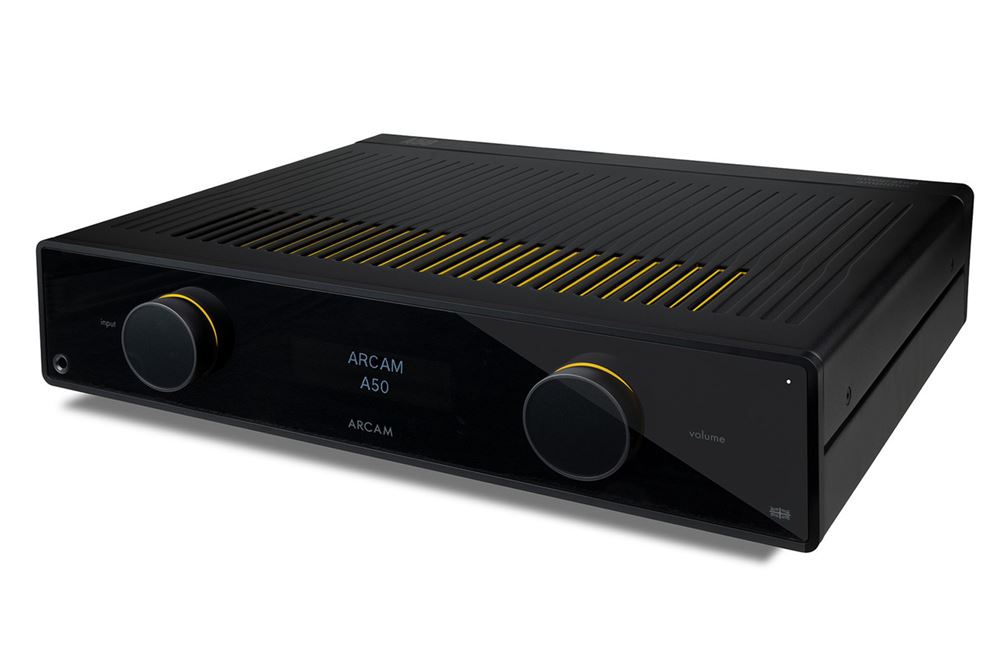

ARCAM Radia A50 Signature Dual Mono Integrated Amplifier with MM Phono and DAC

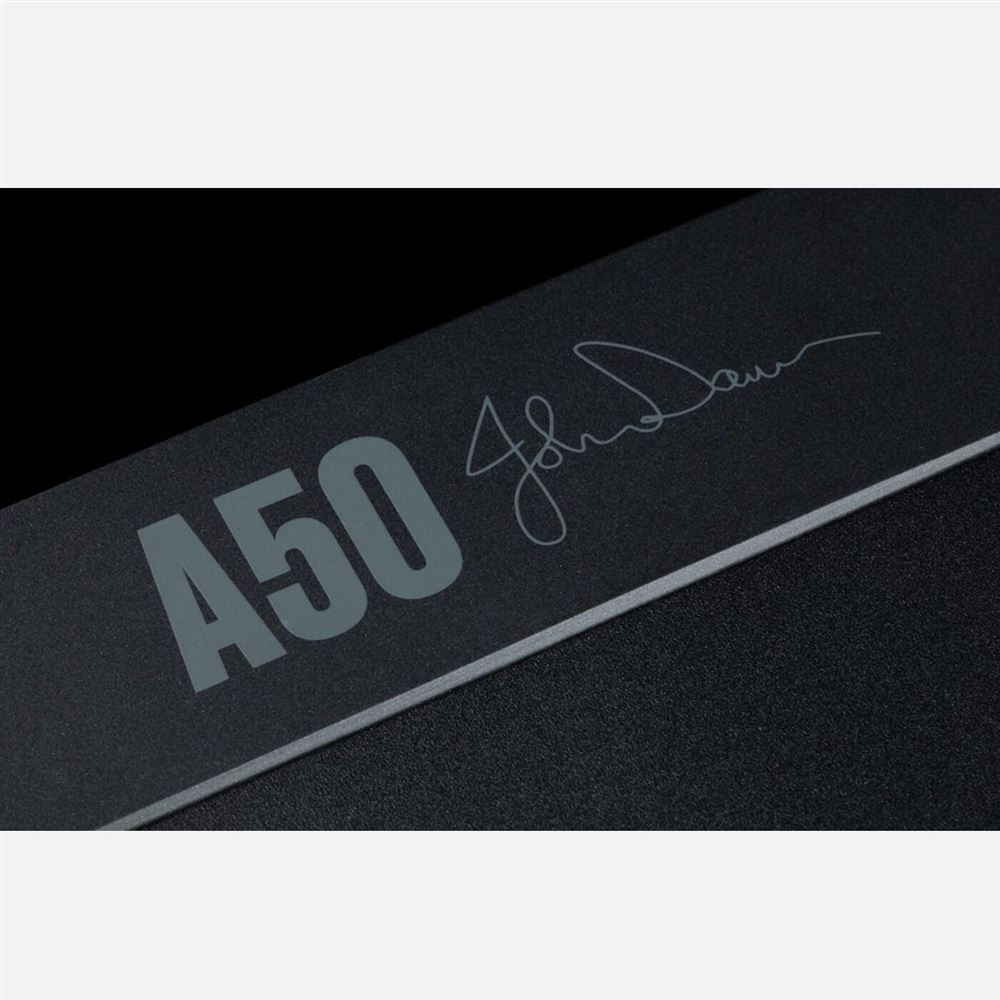

The ARCAM A50 Signature is a high-performance integrated amplifier created to celebrate 50 years of ARCAM amplification expertise. Designed, in conjunction with John Dawson, one of ARCAM's founding engineers and it carries his signature. It combines modern connectivity with advanced analogue and digital engineering.
Built around ARCAM’s most advanced Class G implementation to date, the A50 Signature is the brand’s first dual-mono Class G integrated amplifier. Each channel is a fully self-contained module, featuring independent transformer windings, dedicated power regulation, reservoir capacitors, Class G lifter stage, and output-stage heatsink. This architecture delivers exceptional channel separation, low noise, and high dynamic capability.
The amplifier supports a wide range of music sources, including digital streaming components, smartphones, TVs via HDMI eARC, CD players, and turntables. The DAC, phono stage, and volume control circuits are all new designs to complement the dual-mono amplifier and maintain signal integrity throughout.
The result is the best-sounding integrated amplifier ARCAM has ever produced, delivering consistent performance across digital and analogue sources alike.
Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz - 20kHz, 8 Ohms 150W
2 channels driven, 1kHz, 4 Ohms 220W
Harmonic distortion, 80% power, 8 Ohms at 1kHz 0.002%
Analogue Inputs
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input
Input impedance 47k + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Digital Inputs
Supported Sample Rates (kHz)
USB-C Only 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1
Other digital inputs 192, 176.4, 96, 88.2, 48, 44.1
Bit depths (bit) 32, 24, 16
Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
Headphone Output
Maximum output level (RMS) into 32 Ohms / 300 Ohms 2.5V/5V
Load range 16 Ohms - 2k Ohms
Wireless Specifications
Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm
General
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 700W*
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 99mm
Weight (net) 12kg*
Weight (packed) 14kg*
Supplied accessories
Mains lead(s)
Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instructions
