New... Arcam Radia A5+ Integrated Amplifier with Phono MM, DAC and Bluetooth

The "A" in ARCAM stands for amplification, where our expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to our first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, we haven't rested. Our engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.

The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.

With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.

ARCAM Class AB Amplification - provides brilliant musicality

2x 50W Power Output - powers loudspeakers with ease

Wireless audio with Snapdragon Sound and Auracast built-in - for the best sound with the most convenience

Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires

Fine-tuned phono stage - ensures your records sound as detailed and engaging as possible

Plastic Free Packaging - for easy disposal of natural materials

Specifications

Continuous power output (0.5% THD), per channel

2 channels driven, 20Hz - 20kHz, 8Ω 50W

2 channels driven, 1kHz, 4Ω 75W

Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%

Analogue Inputs

Number of inputs 3 (RCA pairs)

Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB

Frequency response 20Hz—20kHz ± 0.2dB

Phono (MM) Input

Input impedance 47kΩ + 100pF

Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB

Digital Inputs

Supported Sample Rates (kHz)

192, 176.4, 96, 88.2, 48, 44.1

Bit depths (bit) 24, 16

Frequency response (filter 1) 20Hz—20kHz ± 0.2dB

Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB

Headphone Output

Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V

Load range 16Ω - 2kΩ

Wireless Specifications

Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast

Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm

General

Mains voltage 100V or 110–120V or 220–240V, 50–60Hz

Power consumption (maximum) 350W

Power consumption (standby) <0.5W

Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm

Weight (net) 8kg

Weight (packed) 11kg

Supplied accessories

Mains lead(s)

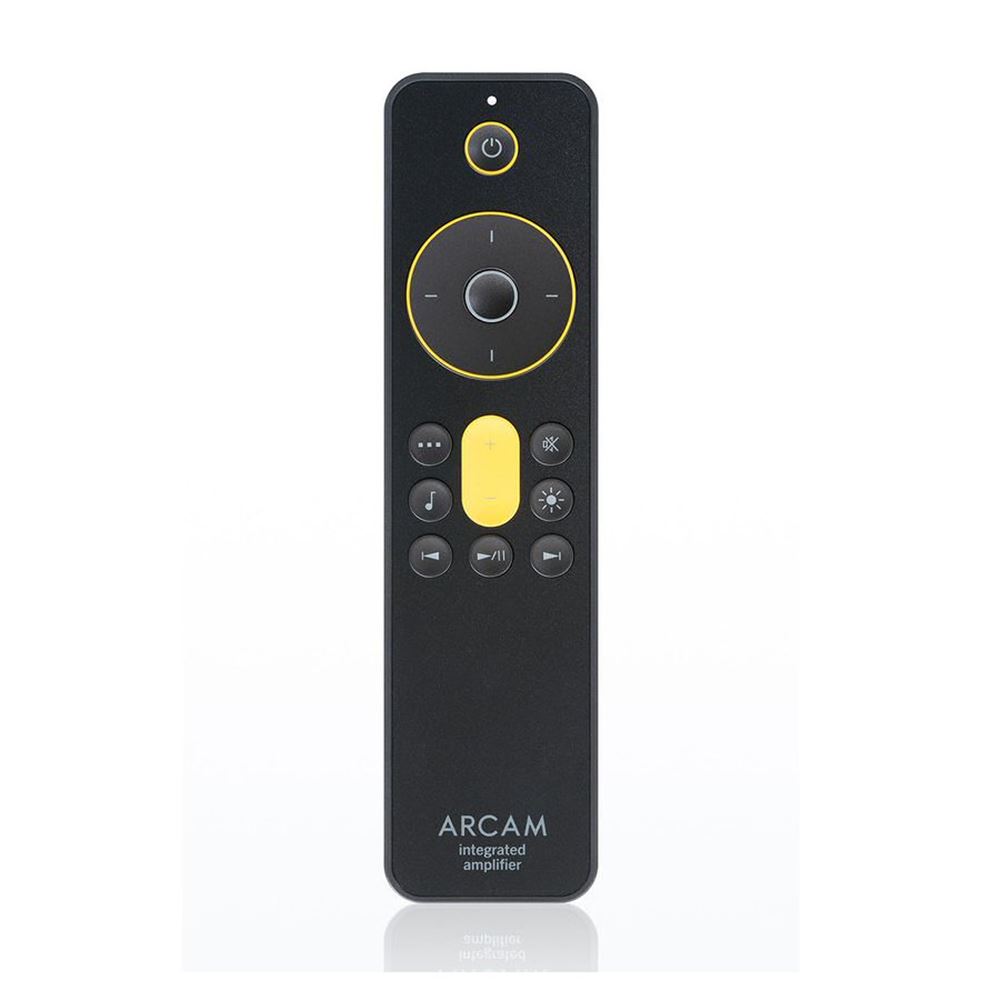

Remote control with 2 x AAA batteries

Quick Start Guide

Important Safety Instructions
