The Arcam AV41 brings tremendous fidelity and dynamics to your home theatre experience. This AV processor boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers. Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

The AV41 is a high-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifers.

The Arcam AV41 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-av41/

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Key Features

16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding

7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible

HDMI 2.1 with HDCP2.3

All inputs support 8K@60fps and 4K@120fps

Supports Dolby Vision, HDR10+, HDR10 and HLG

Includes Dirac Live® room correction

Ready for Dirac Live Bass Control*

Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators

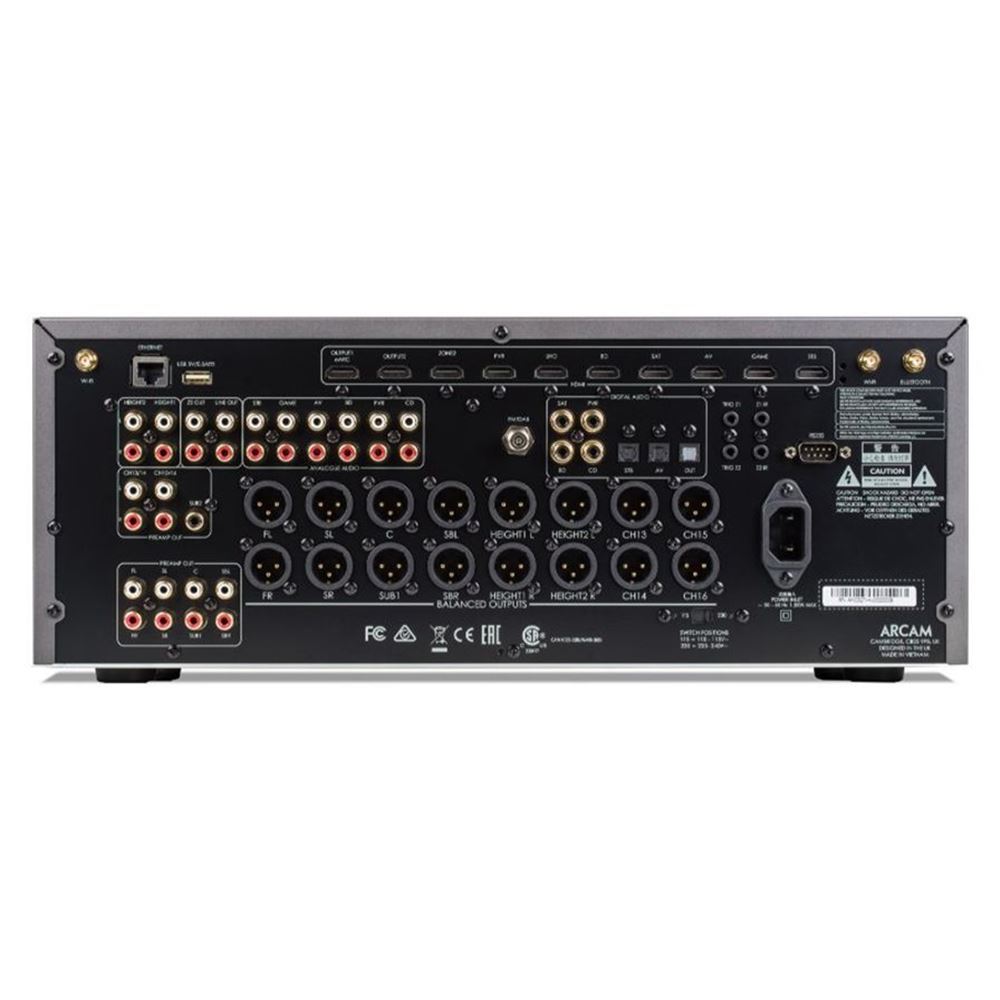

16 transformerless balanced XLR output channels

Pairs with PA720, PA240 & PA410 power amplifiers

Wi-Fi / Ethernet, RS232 and IR control

Google Chromecast® built-in for streaming audio

Apple® Airplay2

Bluetooth aptX®HD

Free MusicLife iOS and Android UPnP app

Roon Ready and supports MQA

SPECIFICATIONS

Stereo Line Inputs Maximum input

4.5V rms

Nominal sensitivity

1V, 2V, 4V (user adjustable)

Input impedance

47kΩ

Signal/noise ratio (A-wtd ref 100W) normal/stereo direct

100dB/110dB

Frequency response

20Hz—20kHz ± 0.2dB

Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs

Nominal output level

1V RMS (max. 5V RMS)

Output impedance

560Ω

THD+N (20Hz—20kHz)

–100dB

Headphone Output

Maximum output level into 32Ω

5Vrms

Output impedance

<100Ω

General Mains voltage

110–120V or 220–240V, 50–60Hz

Power consumption (maximum)

50W (Thermal dissipation approx. 170 BTU/hour)

Power consumption (idle, typical)

40W (Thermal dissipation approx. 170 BTU/hour)

Power consumption (standby)

<0.5W

Dimensions W x D (including speaker terminals) x H (including feet)

433 x 425 x 171mm

Weight (net)

10.6kg

Weight (packed)

13.9kg

Supplied accessories

Mains lead

Remote control with 2 x AAA batteries

Manual

DAB/FM aerial

3 x WiFi/Bluetooth antennas

Calibration microphone

USB cable

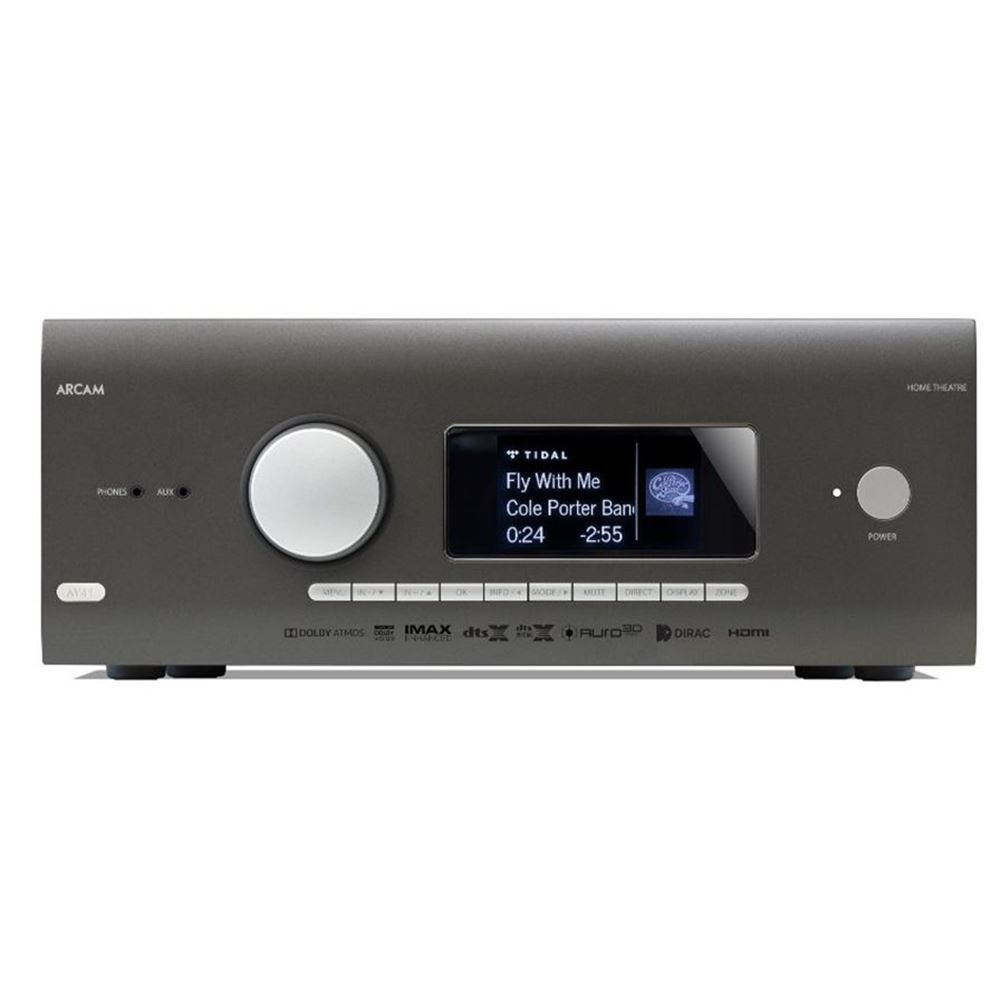

Arcam AV41 AV Processor

£4,499.00
From £66.42 per month
