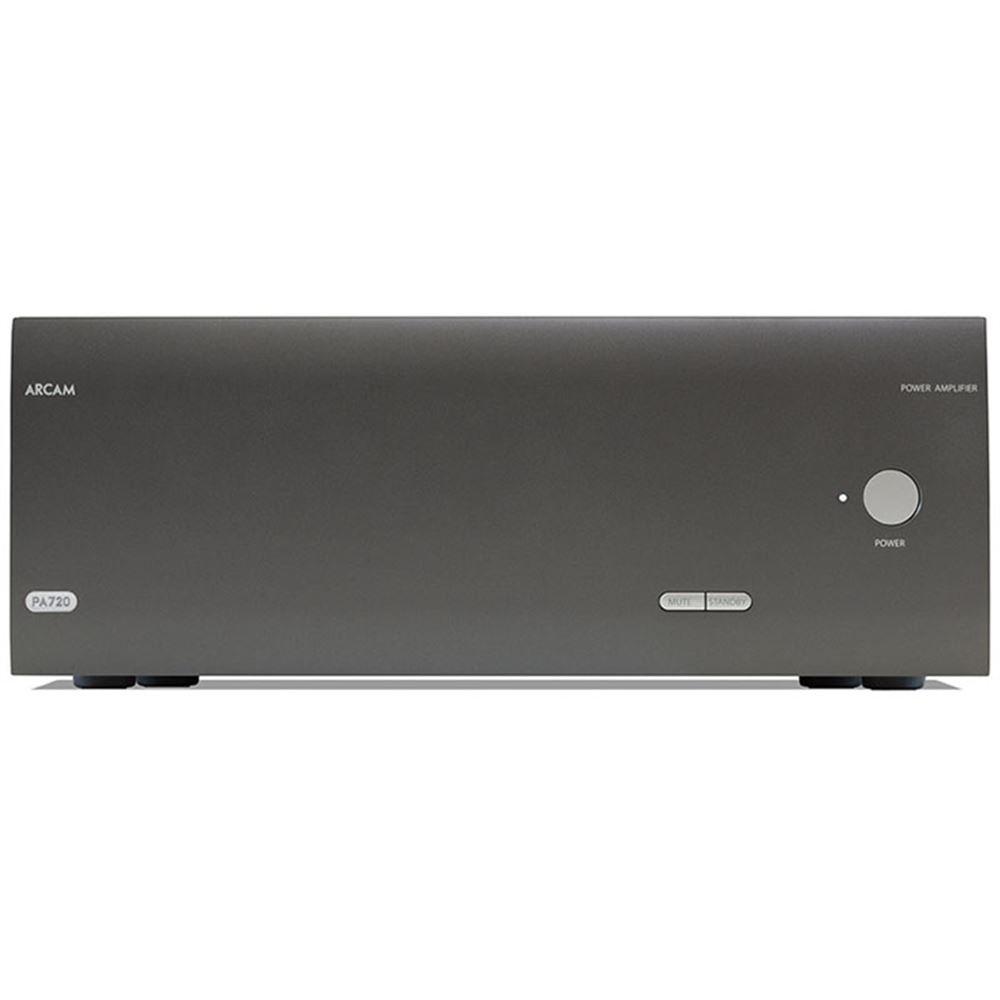

Arcam PA720 7 Channel Power Amplifier - Available with Online Finance and Free Delivery from Vickers HiFi - York.

The Arcam PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

  • 7 Channel Power Amplifier
  • 7 x 100W Class G amplification (8ohm, 20Hz-20kHz, 0.2% THD)
  • Class G amplification with 20W of Class A operation
  • Toroidal transformer

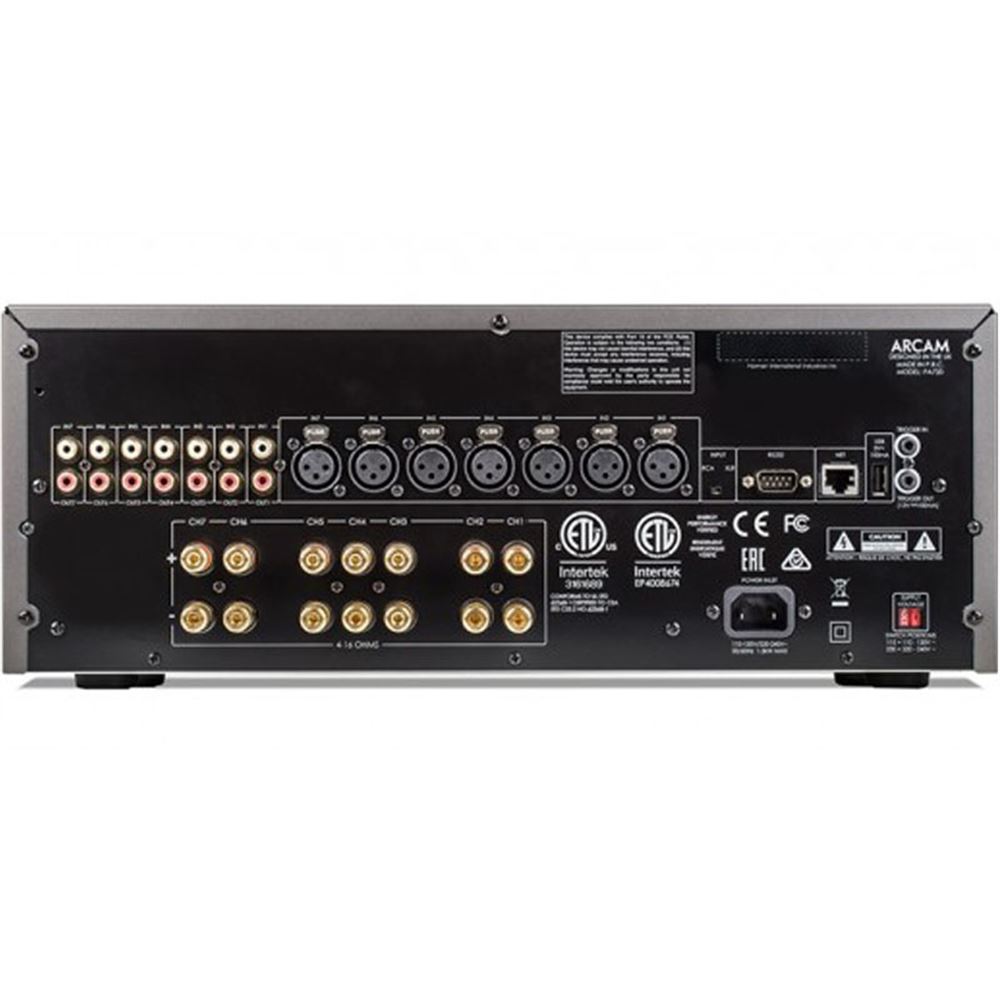

  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs

SPECIFICATIONS

Continuous power output at 0.2% THD per channel

Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz: 140W / 100W

Five channels driven, 4Ω / 8Ω, 1kHz: 175W / 110W

Two channels driven, 4Ω / 8Ω, 1kHz: 225W / 140W

Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%

Inputs

Input sensitivity 50W / 8Ω

- RCA Type: 800mV RMS

- XLR Type: 1.6V RMS

Signal/Noise ratio (A-wtd) 50W / 8Ω: 105dB

Input impedance: 10kΩ

Frequency response: 20 - 20kHz +/-0.05dB

General

Mains voltage: 110–120V or 220–240V, 50–60Hz

Power consumption (maximum): 1.5kW

Power consumption (idle, typical): 90W (Thermal dissipation approx. 340 BTU/hour)

Power consumption (standby): <0.5W

Dimensions W x H x D (including feet, control knob and speaker terminals): 433 x 425 x 177mm

Weight (net): 18kg

Weight (packed): 19.7kg

Arcam PA720 7 Channel Power Amplifier

£2,499.00

  Finance From £66.41 a month

  Delivery Standard Shipping and Click & Collect

  Payment Secure payment available
