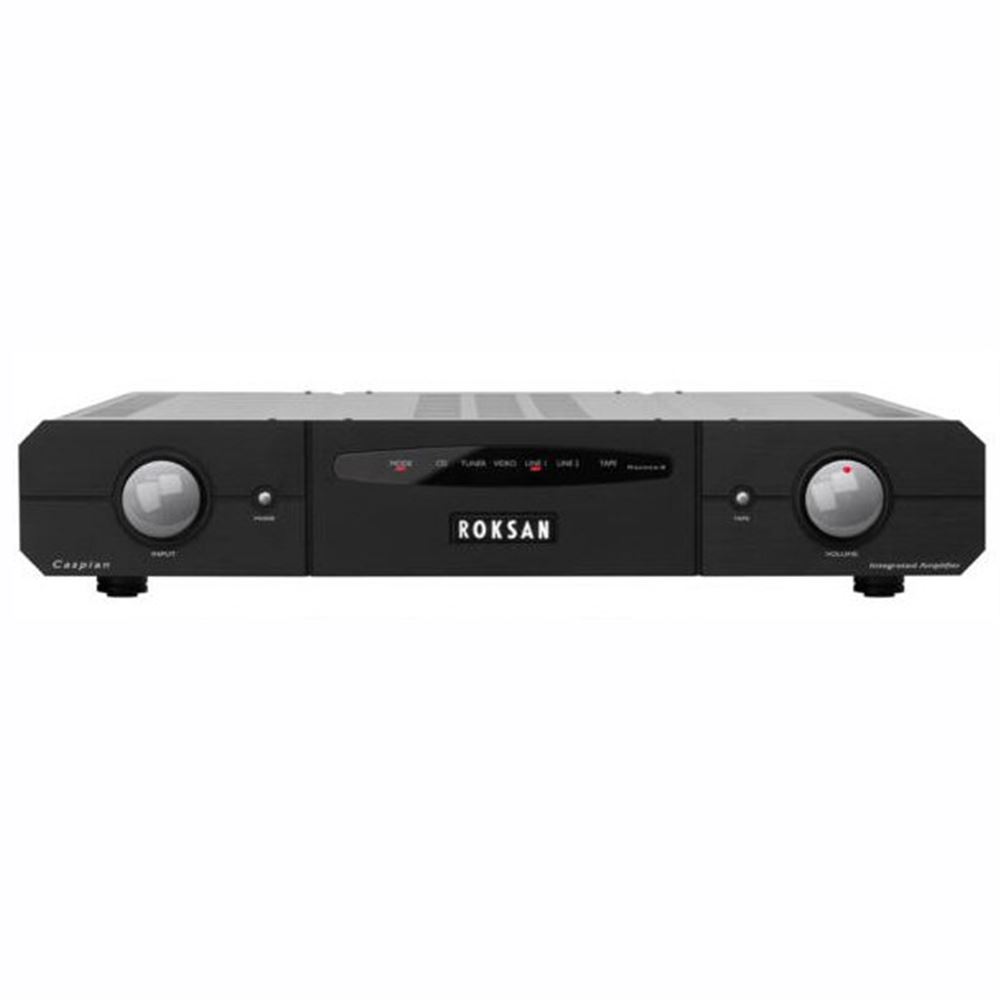

The Roksan Caspian M2 Integrated Amplifier advances the performance of its class of amplifier to a new level. The ease with which the M2 negotiates the loudspeaker load through even the most delicate yet demanding musical passages is almost unbelievable from such an elegant, pure looking amplifier. Its control and authority appears to be backed by a state of the art power house!
Resolution of detail is so harmonic and full of emotion that is reminiscent of our world acclaimed Roksan L1.5 reference preamplifier. Of course pedigree has played an important role but the relentless refinements, tests and never ending demands are what made this project come to life and result in such success.

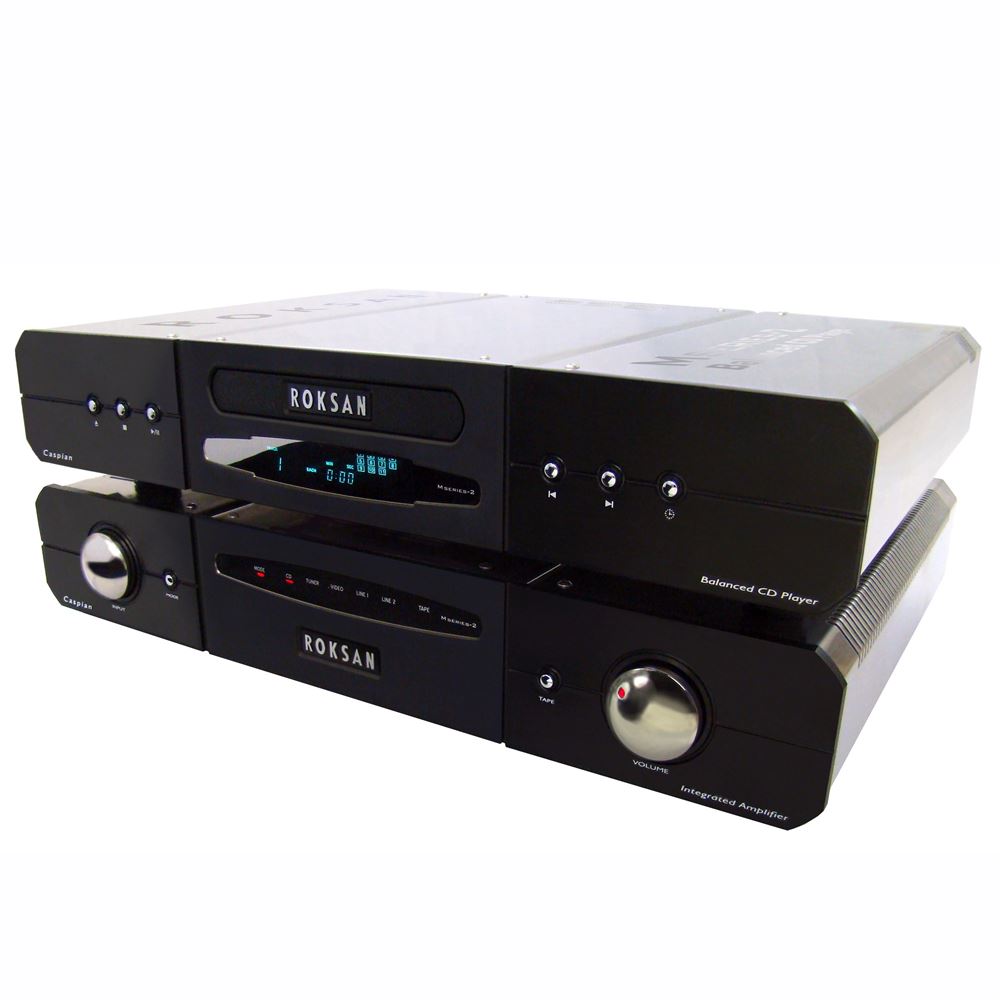

We are proud to present the M2 Integrated Amplifier alongside the M2 CD Player; together these two are perhaps the most iconoclastic electronic components from Roksan yet.
The M2 Integrated amplifier’s independent power supplies combined with fully symmetrical complimentary circuit design ensure the amplifier uncovers even the most delicate detail and presents it majestically.

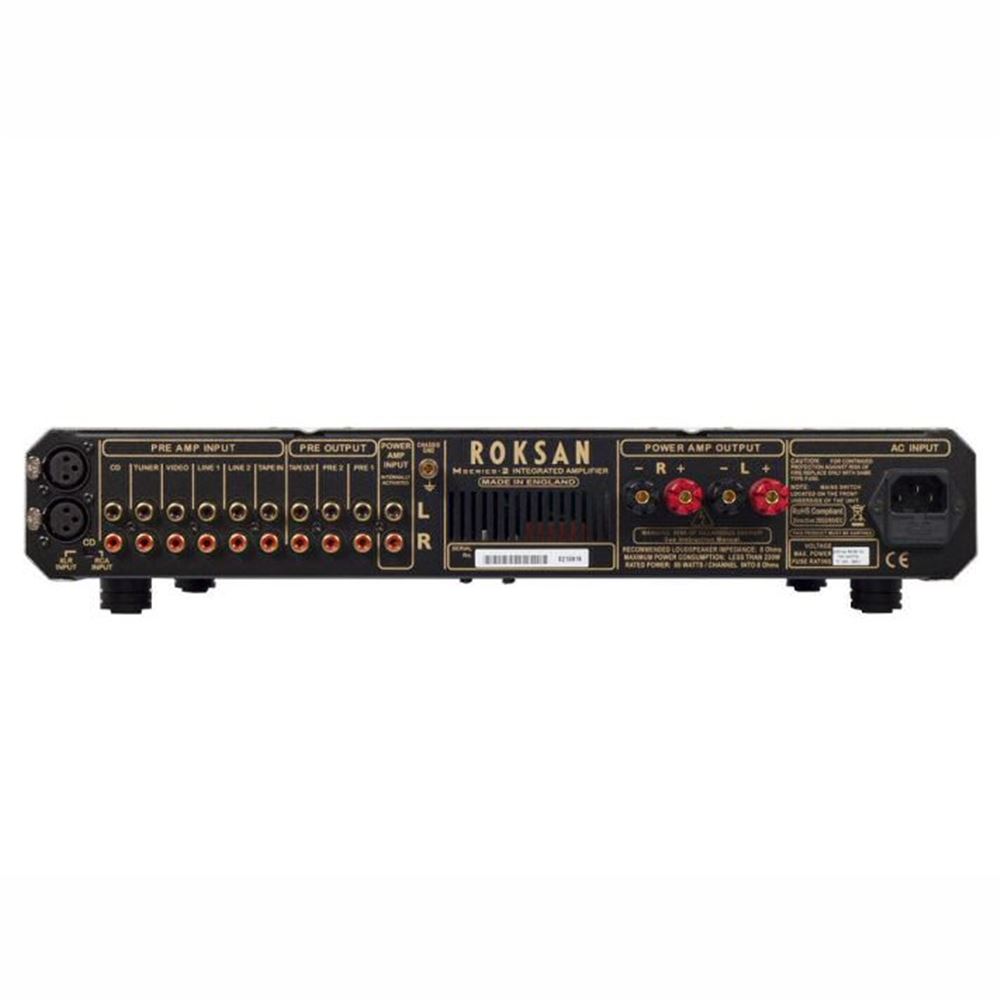

Inputs: | 5 Line & Tape, RCA Gold-Plated (CD Input Switchable to Gold-Plated XLR) |
Input Impedance: | 47 kO |
Input Sensitivity (85W): | Line 240mV |
Outputs: | Gold Plated RCA Tape Gold Plated RCA Preamplifier |
Output Voltage: | 240mV (Tape Out) 700mV (Pre Out) |
Power Outputs: | Loudspeaker, L & R |
Output Power: | 85 Watts Into 8O, Both Channels Driven 125 Watts Into 4O, Both Channels Driven |
Power Supply: | 350VA Ultra Low Noise Toroidal Transformer, 60VA Ultra Low Noise Transformer Preamp Section Toroidal, 5 Regulated Supply Rails |
Current Output: | 60 Amps Peak to Peak |
Damping Factor: | 160 (8O) |
Frequency Response: | -3dB, <1Hz – 90kHz |
Gain: | 40dB Overall (Pre & Power) 9.3dB Preamplifier 30.7dB Power Amplifier |
Harmonic Distortion: | 0.002% 1kHz, 0.015% 20kHz 10W - 8O 0.0025% 1kHz, 0.03% 20kHz 50W - 8O |
Signal-to-Noise: | Line 108dBa (ref. 500mV) 85dBa (ref. 1W, 8O) |
Power Source: | 220V – 240V 50Hz / 60Hz (via Mains Inlet Filter) |
Power Usage: | <230 W |
Dimensions: | 432 x 330 x 70mm (W x D x H) 432 x 330 x 80mm (Incl. Feet) |
Weight: | 13 kg |
