Clearaudio Innovation Turntable Chassis. - Contact us for package deals. Available with Online Finance and Free Delivery.
An infrared sensor combined with Clearaudio's optical speed control (OSC) ensures an outstanding level of speed stability – a prerequisite for optimal listening. A high-torque decoupled DC motor effortlessly rotates the precision-machined 70mm-thick platter made of high-density acrylic. The platter rotates in a virtually frictionfree environment atop the 15mm-thick stainless steel sub platter, thanks to Clearaudio's patented ceramic magnetic bearing (CMB). A convenient choice of three rotational speeds is also at your fingertips, and it is possible to install a second tonearm.

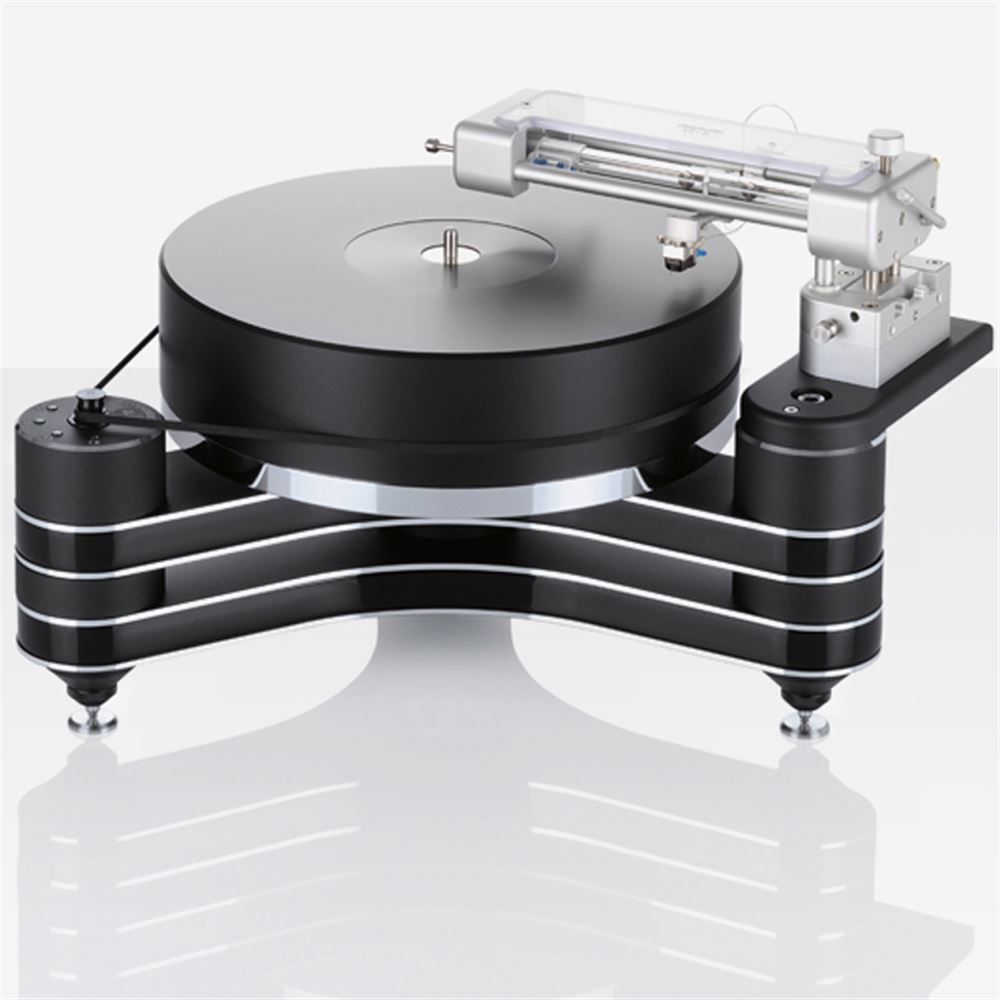

N.B. Arm and cartridge pictured are not included - contact us for details
Clearaudio turntables and accessories are hand built to order in Germany
CONSTRUCTION DETAILS: Resonance–optimised chassis shape, made of laminated wood and aluminium with precision CNC machined surface. All turntable feet are fine adjustable. Playback with two tonearms possible
SPEED RANGES: Comfortable speed change 33 ? rpm, 45 rpm, 78 rpm
DRIVE UNIT: High torque DC motor with belt drive, Electronic Optical Speed Control (OSC)
BEARING: Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
PLATTER: 70 mm / 2.75 inch main platter, made out of synthetic material with high density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub–platter, dynamically balance
SPEED ACCURACY (MEASURED): < ± 0.05 %
SPEED VARIATION: < ± 0.01 %
POWER CONSUMPTION: Max. consumption: 9.3 Watt
Consumption in operation: 2.5 Watt, Standby mode: 2.5 Watt
TOTAL WEIGHT: Approx. 24 kg (without tonearm and power supply)
DIMENSIONS (W/D/H in mm): Approx. 460 x 485 x 220 (with tonearmbase, without tonearm)
