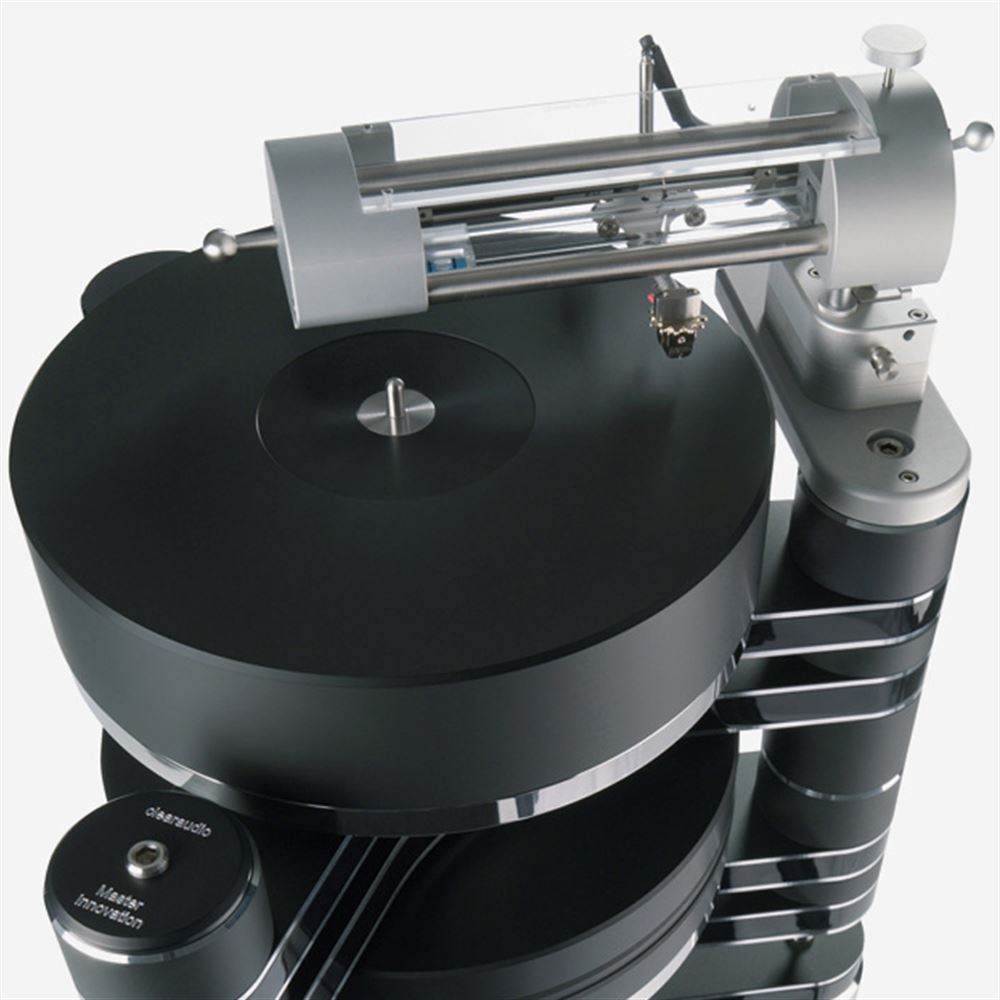

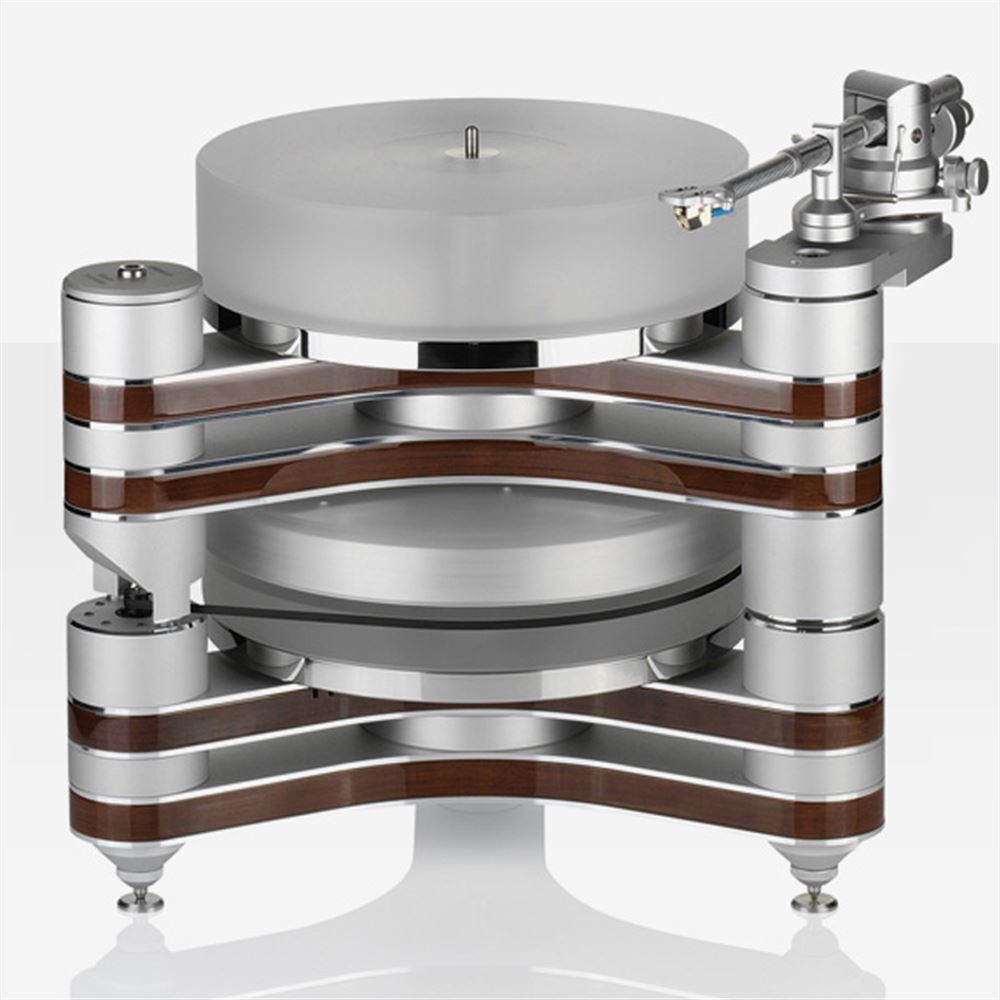

Clearaudio Master Innovation Turntable Chassis Only. Arm options available - contact us for more details.

The latest model in the popular Innovation series shows clearly how even the best is constantly being further developed and brought to new sonic heights at Clearaudio.

The 70mm-thick, dynamically balanced platter made of resonance damping plastic with a 15mm-thick precision-machined stainless steel sub platter delivers the highest mechanical standards. The Master Innovation doubles the inertia of the Innovation.

Incredible rotational speed stability is achieved thanks to the combination of the patented Clearaudio ceramic magnetic bearing (CMB) supplemented by an additional flywheel and a high torque DC motor. An infrared sensor sends signals to an optical speed control mechanism to consistently maintain the perfect speed, while non-contact magnetic decoupling of the drive prevents any vibration or noise from the motor system from reaching the main turntable. Consequently, speed variations are eradicated and perfect pitch is obtained. The Master Innovation provides the ability to mount up to three tonearms. Existing Innovation owners have the option to upgrade to Master Innovation level.

Clearaudio turntables and accessories are hand built to order in Germany

CONSTRUCTION DETAILS

Resonance–optimised chassis shape, made of laminated wood and aluminium with precision CNC machined surface.
All turntable feet are fine adjustable
Optical Speed Control (OSC)

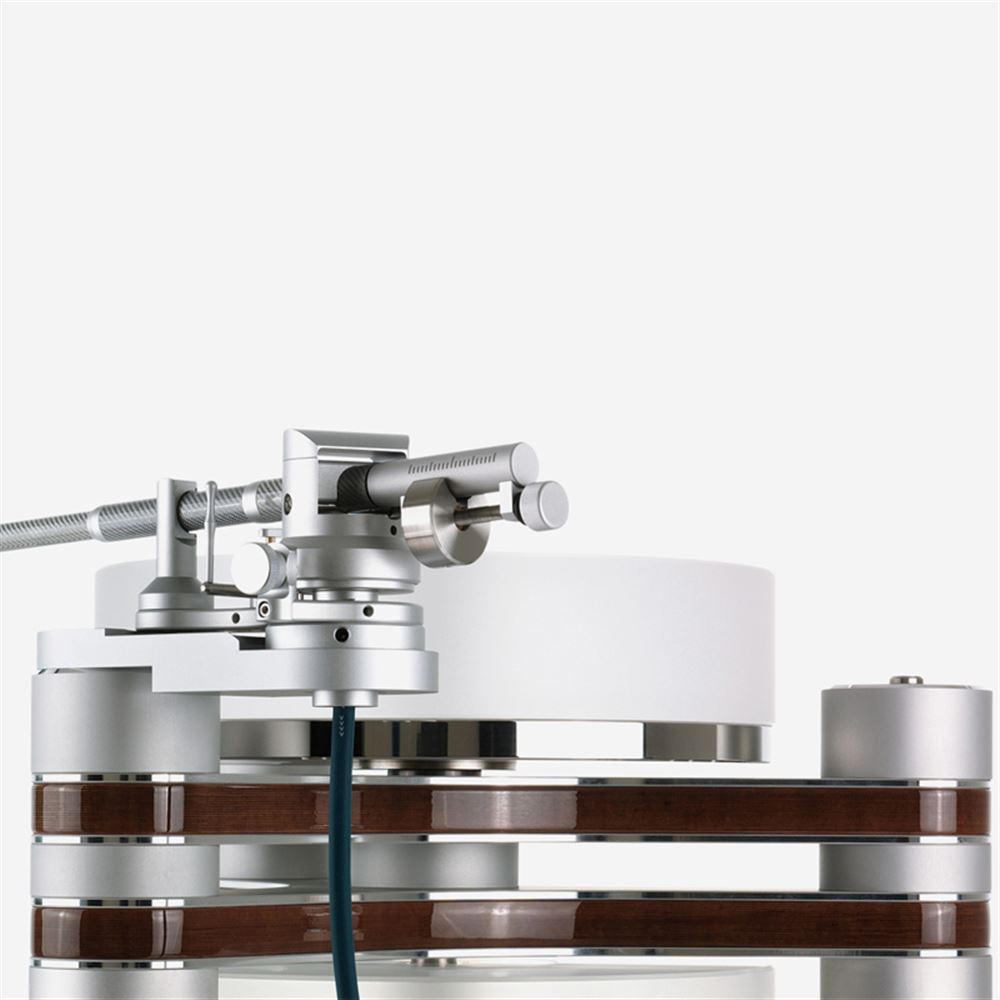

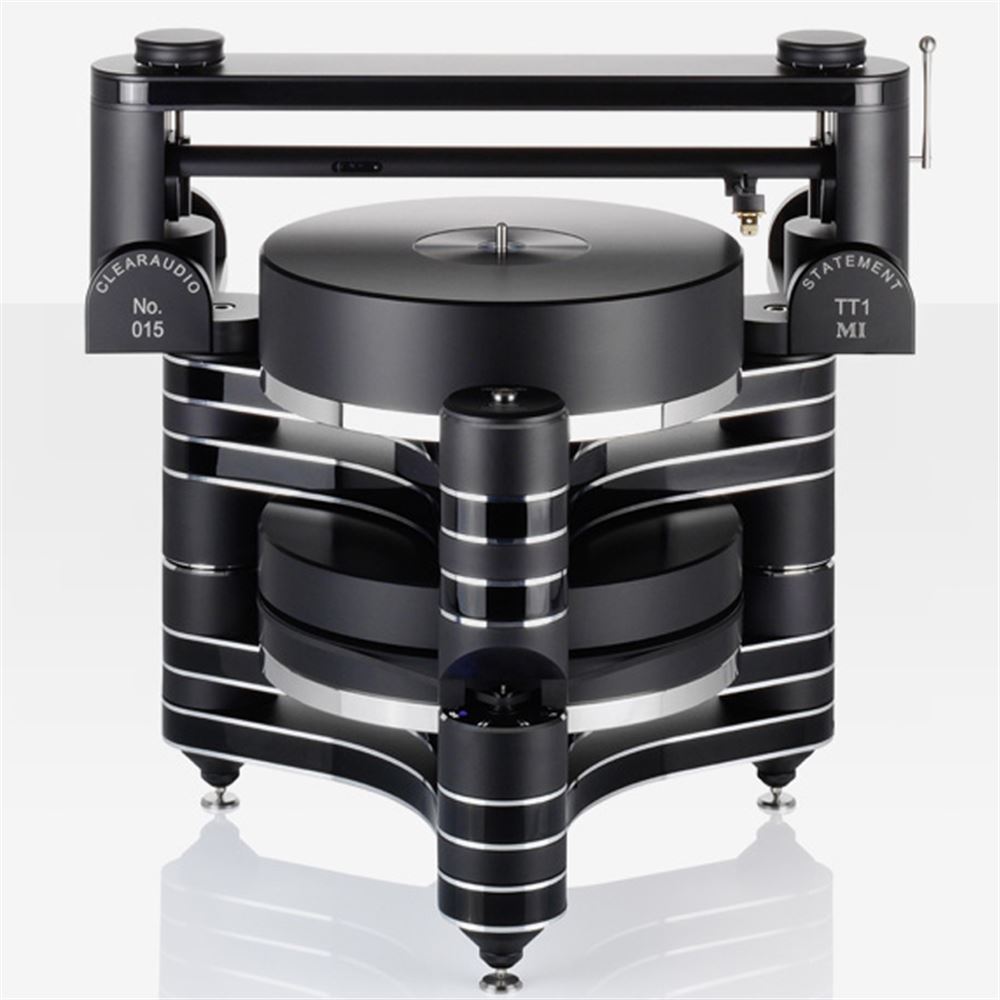

Playback with three tonearms possible
SPEED RANGES Comfortable speed change
33 ?, 45 and 78 rpm
DRIVE UNIT
High torque DC motor with belt drive
Electronic Optical Speed Control (OSC)

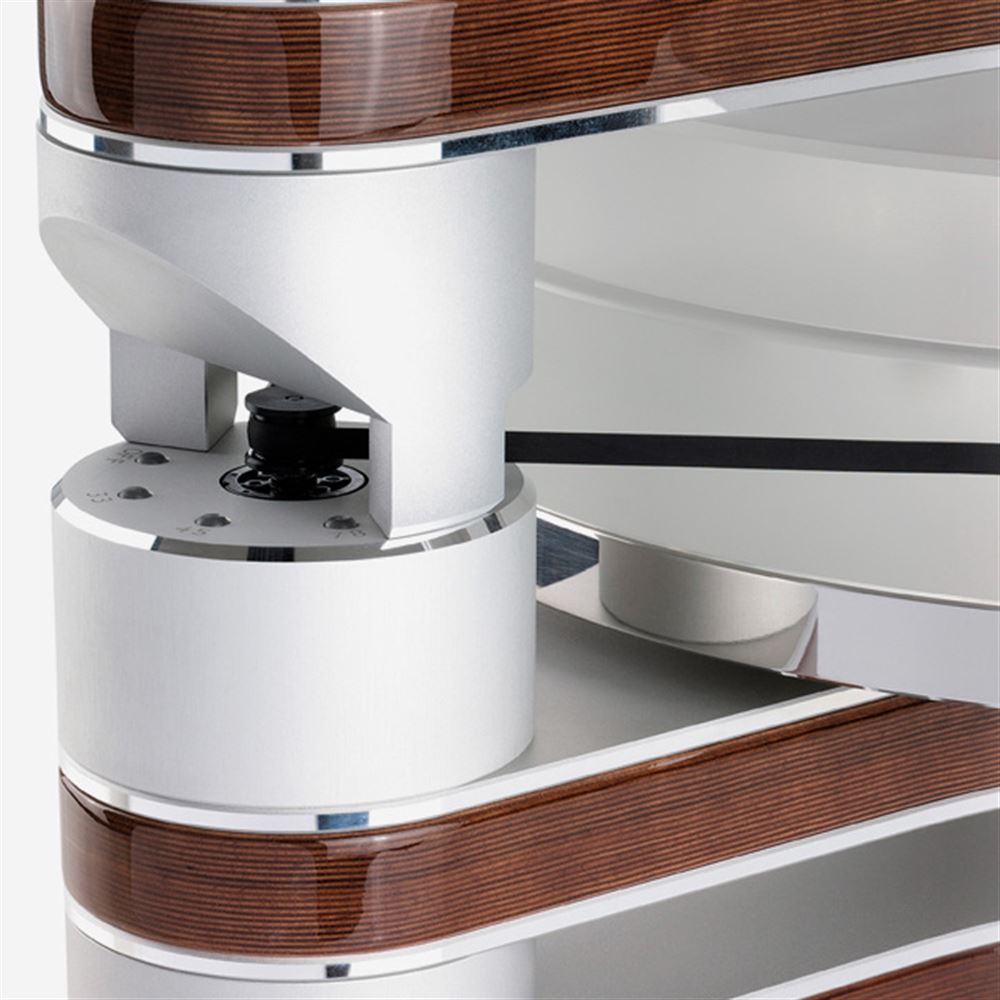

BEARING Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly
PLATTER Double platter system each comprising:
15 mm (4/5 inch) precision CNC machined dynamically balanced stainless steel sub–platter
70 mm (2.75 inch) dynamically balanced main platter, made of synthetic material with excellent dimensional stability
SPEED VARIATION < ± 0.05 %
POWER CONSUMPTION Max. consumption: 9.5 Watt
Consumption in operation: 4.1 Watt
Standby mode: 2.4 Watt
Off mode: 0.0 Watt
TOTAL WEIGHT Approx. 60 kg (without tonearm and power supply)
DIMENSIONS (W/D/H in inches) Approx. 18.11 x 19.09 x 15.59 (with tonearmbase, without tonearm)
DIMENSIONS (W/D/H in mm) Approx. 460 x 485 x 396 (with tonearmbase, without tonearm)





Clearaudio Master Innovation Turntable Chassis Only

From £21,900.00

  Finance From £581.96 a month

  Delivery Standard Shipping and Click & Collect

  Payment Secure payment available
