Cyrus 40 PPA Phono Preamplifier with 40 PSU Power Supply
Cyrus have been designing and building phono preamplifiers in the UK for a long time now, so when we say that the 40 PPA is our best yet, and one of the best in the market, we say it with confidence!
As with all 40 series products, we have completely re-imagined the design of the product and audio flow from beginning to end, carefully shielding the very sensitive signals from any interference.
Enjoy your record collection like never before.
The 40 PPA provides complete flexibility with your choice of cartridge. Whether you enjoy the ease of a Moving Magnet cartridge or the detail and ability to match the output of a Moving Coil cartridge, the 40 PPA has got you covered.
One of the key features of the 40 PPA is the ability to connect up to four sources, allowing the listener to easily switch between turntables, arms or cartridges as desired. Each input can be adjusted between Moving Magnet and Moving Coil cartridges, for which specific gain (in 5dB steps), resistance and capacitance can be set independently.
The 40 PPA enjoys a high capacity and very low noise DC power supply that enables the preamplifier to provide an extremely wide dynamic range ensuring extended signal levels long before clipping. Attention to circuit layout and component placement ensures a very low noise floor to further expand musical dynamics.
Depending on your system set up, the 40 PPA provides both balanced XLR outputs, or unbalanced RCA outputs.

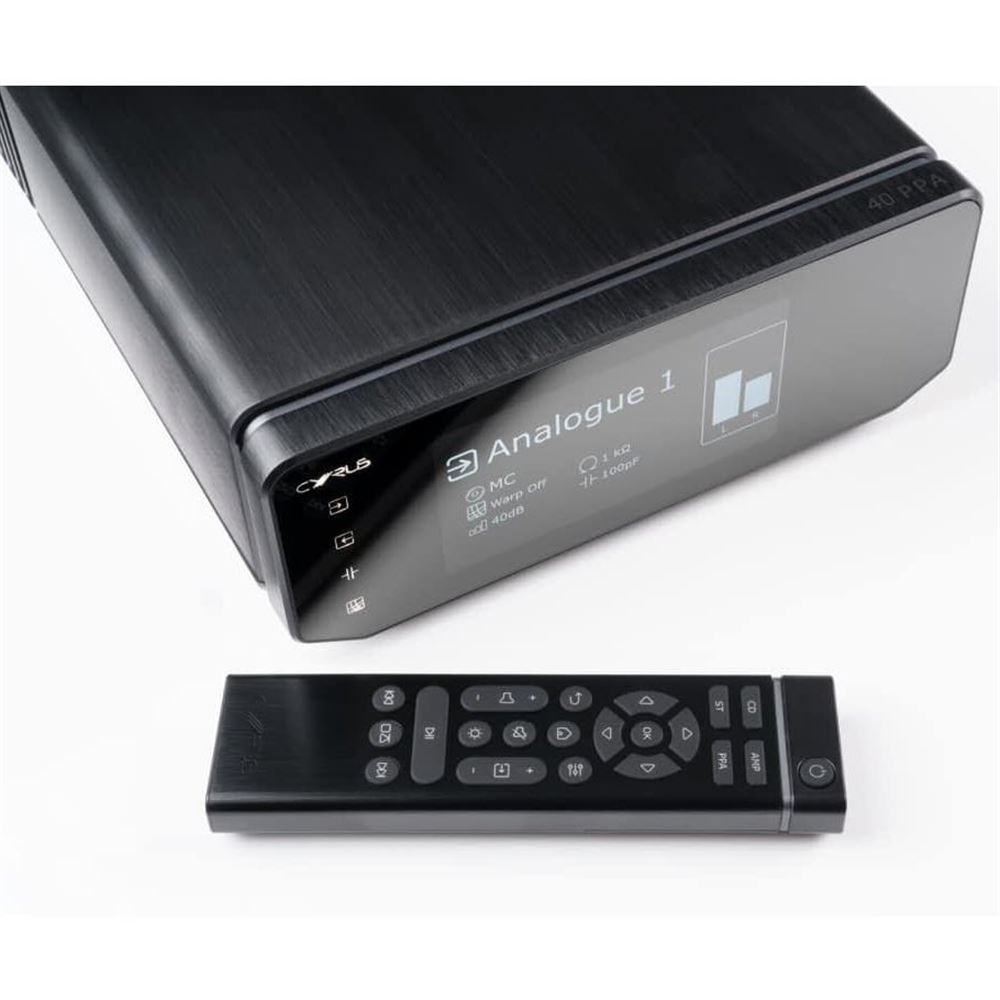

The custom designed remote allows for full setup and operation of the 40 PPA as well as other 40 series Cyrus products.
Specification
Connect up to 4 turntables
All inputs compatible with MC & MM cartridges
MC inputs configurable for gain, load and capacitance
Stereo output level meters with peak hold to optimise MC gain
Warp filter to reduce bass excursion on warped records
XLR balanced and RCA outputs
Ground lift switch to help eliminate ground hum problems
Remote control operation
40 PSU compatible
RJ45 Ethernet For Firmware Updates
USB-A For Firmware Updates
Size (H x W x D) 88 x 220 x 365 mm
Weight 4.8kg
5 Year Warranty

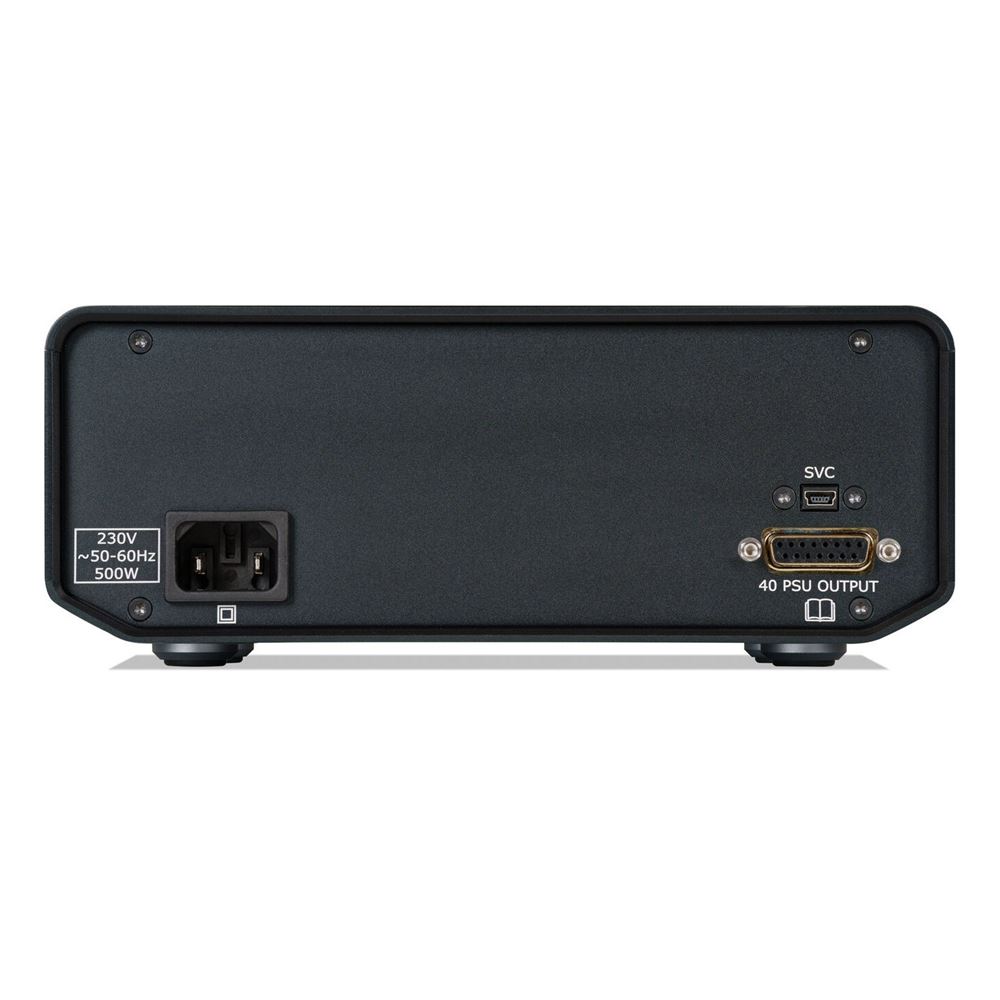

Cyrus 40 PSU Power Supply
Power supply design has always been key to the overall performance of audio products and with the Cyrus 40 PSU, we have delivered not only a product packaged within the sleek design of the Cyrus 40 series aluminium chassis, but a new approach to providing clean and stable power for your compatible Cyrus 40 series host product. Incorporating its own on-board micro-processor, the Cyrus 40 PSU communicates directly with the host product to consistently provide the best configuration of virtually noise-free power from a full range of digitally controlled voltage output levels.
Specifications
Low voltage supply - Standby mode +5V DC
Low voltage supply - Operational +5V DC
Fixed voltage supply - Standby mode 0V
Fixed voltage supply - Operational +24V DC
Variable supply - Standby mode 0V
Variable supply - Regulated +10V to +45V DC
Variable supply - Unregulated +45V or +56V DC
RJ45 Ethernet For Firmware Updates
Mini USB For Firmware Updates
Size (H x W x D) 88 x 220 x 365 mm (3.46” x 8.66” x 14.37”)
Weight 9.4kg (21lbs)
