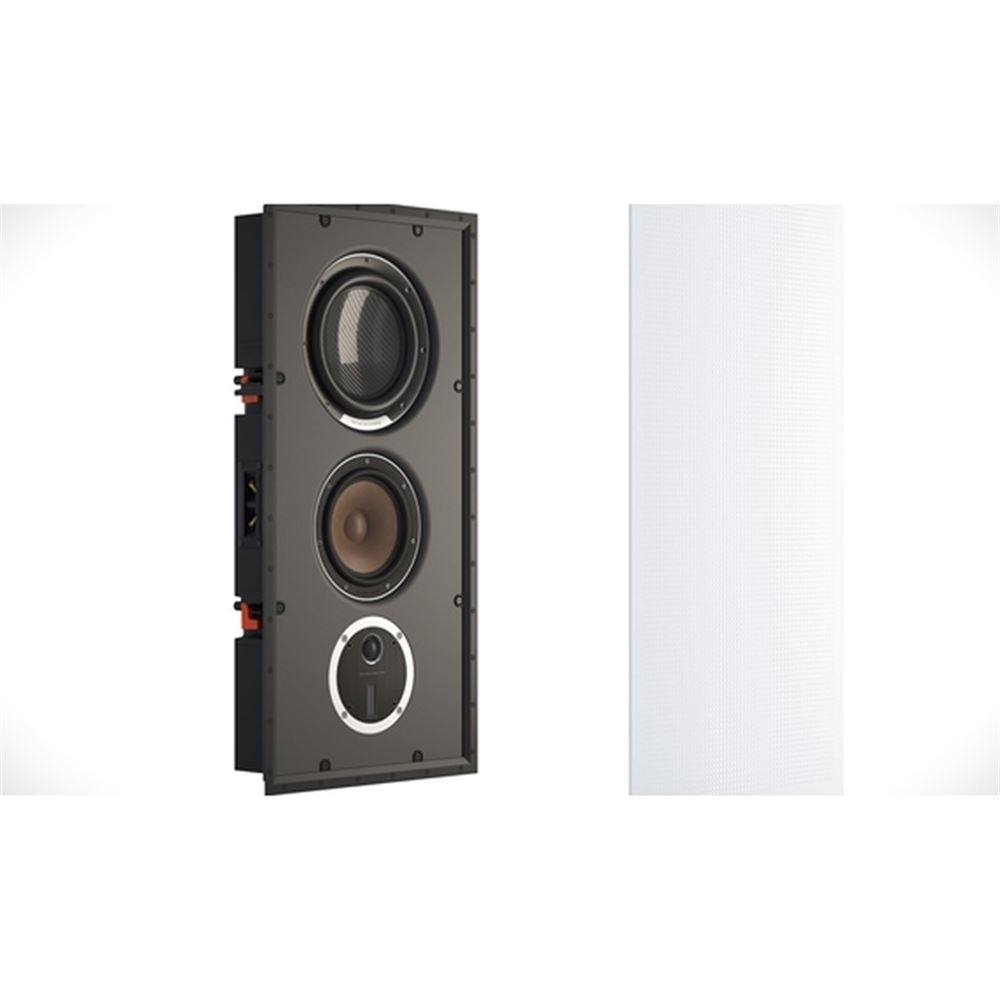

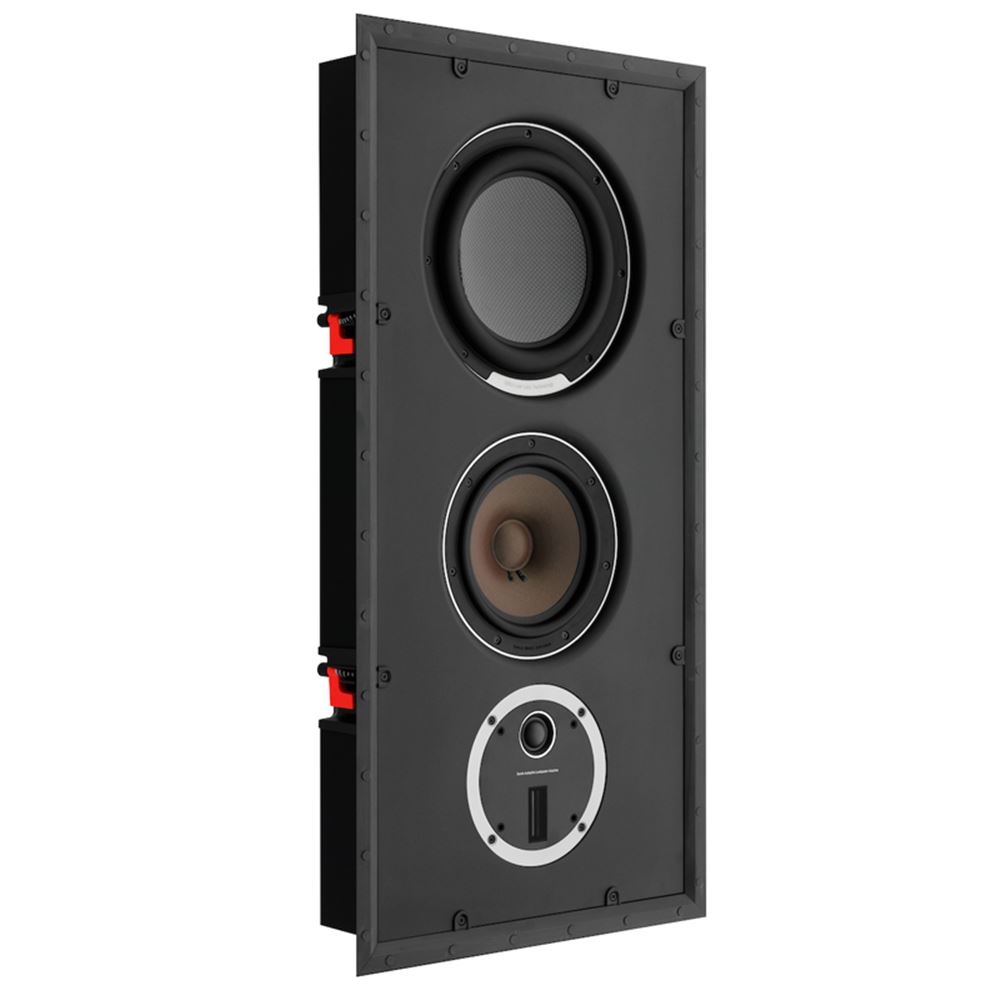

The slim DALI PHANTOM S-180 in-wall loudspeaker offers a full frequency response similar to that of a floorstanding loudspeaker, but without sacrificing valuable living room space. It delivers a no compromise in-wall audio performance with the use of proven speaker technologies. This includes our characteristic wood fibre cones, low-loss rubber surround, solid MDF front baffle, our signature hybrid tweeter module and our superior innovative magnet design including a SMC pole piece.
The Dali PHANTOM S-180 is a full-size in-wall loudspeaker, which combines a 8” wood fibre driver with a 10” passive carbon fibre radiator and a rotatable hybrid tweeter module to deliver coherent, clean and detailed room filling sound. All this squeezed into a slim cabinet that fits into almost any standard wall.
WIDE DISPERSION
All DALI speakers are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use with install speakers, since they are always mounted flush against either a wall or ceiling.
SLIM CABINET
One of our goals for the PHANTOM S models was to create a high-end in-wall speaker with a slim profile that allowed for maximum flexibility when installing. We achieved this by keeping the cabinet depth at only 103 mm, which fits into almost any standard wall.
SMC TECHNOLOGY
Advanced Soft Magnetic Compound (SMC), which eliminates variation of flux strength in the magnet gap. It reduces distortion to a minimum compared to conventional drivers.
10" PASSIVE RADIATOR
Featuring a 10" passive bass reflex woofer made of very well behaving carbon fibre - taken from our highend subwoofer 'DALI SUB P-10 DSS'.
Sold as single units
Dimensions (HxWxD) [mm] |
898 x 453 x 110 |
Cut-Out Dimensions (HxWxD) [mm] |
865 x 420 x 103 |
Weight [kg] |
18.5 |
