EverSolo AMP-F2 Bridgeable Stereo Power Amplifier

Dynamic Power | Detailed Presentation

The AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative NS600 module created by the Starke Sound team. It boasts a high sampling rate of up to 600KHz. Simultaneously, it significantly reduces noise and enhances dynamic performance through newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, coupled with optimised circuits to maximise audio quality. The AMP-F2 is bridgeable, allowing flexible configuration for 2-channel or mono-channel setups when needed.

Vigorous Output | Bridged Support

The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a constant 250W RMS (4Ω) @ 1% THD+N. When bridged, it can support up to 450W RMS (2Ω) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.

Accurate Sound | Perfect Experience

The NS600 module employs PurePath™ Ultra-HD technology and advanced integrated feedback design, featuring high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.

Powerful Power Drive

Utilising a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dynamic performance of the system.

Environmentally Friendly Low Power Consumption

AMP-F2 has an extremely low standby power (0.5W) and idle power consumption (14W), complying with the European Union ErP standards.

Aluminium Body | Shielding Design

Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.

One-Touch Activation Seamless Control

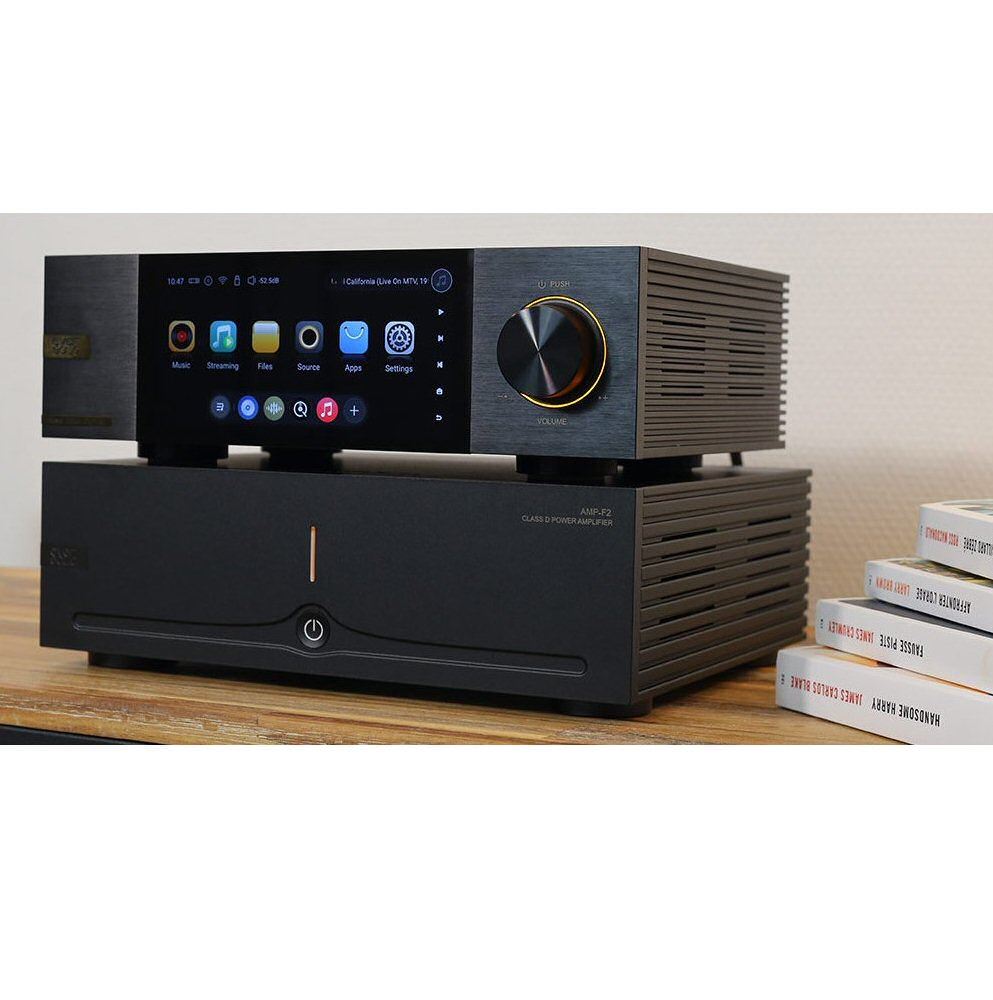

The AMP-F2 is equipped with standard 12V TRIGGER IN and TRIGGER OUT function, allowing it to be synchronised with other devices that support the standard TRIGGER interface for power on and off; using the USB to TRIGGER adapter cable provided with the AMP-F2, you can connect the USB Type A interface of the DMP-A6 to the TRIGGER IN of the AMP-F2 to achieve synchronisation.

Specifications

Output Power 250W RMS at 4Ω (1%THD,per channel) 145W RMS at 8Ω(1%THD,per channel) Bridge Mode Output Power 450W RMS at 2Ω(Bridge Mode)

Channel quantity 2 Channels

Amplifier type Class D

Frequency Response 10Hz-20kHz -1.2dB

Maximum output current 16.5A(per channel)/ 33A(Bridge)

Signal-To-Noise Ratio(SNR)>110dB,"A" weighted 4Ω 260W

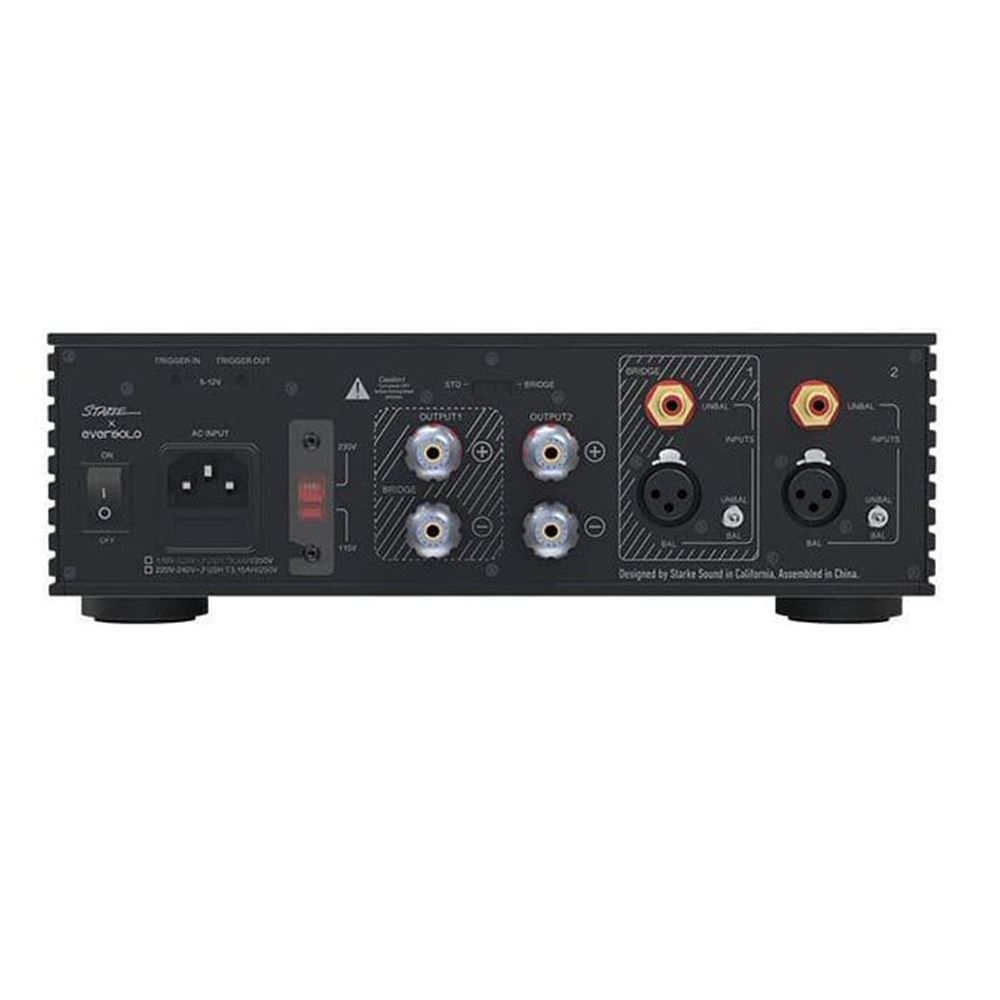

Input terminals 2-Channel RCA Input ;2-ChannelXLR Input

Input Impedance RCA 10.5K ohm /XLR 21.7K ohm

Output terminals 2 pairs beryllium copper binding post,custom made by Starke Sound

Output Impedance 0.09 ohm 1kHz

Full size W 270 mm x D 228 mm x H 90 mm (w/ foot))

Weight 3.65Kg
