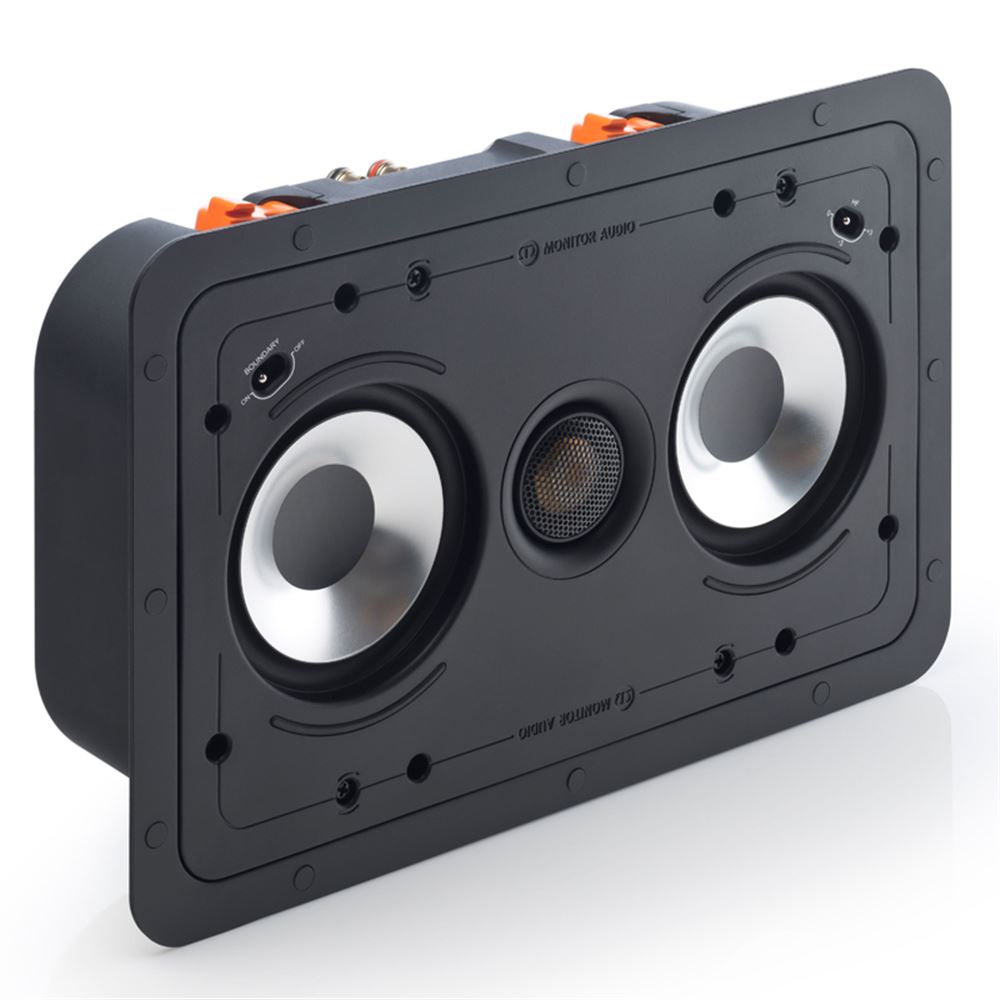

The Monitor Audio CP-WT240LCR speaker is Ideal for installation as a dedicated centre-channel home theatre speaker, and in portrait or landscape orientations as a high performance music or theatre satellite.

Utilising twin 4 C-CAM drivers astride a C-CAM tweeter, the drivers offer greater radiating area working in tandem than a single 6 bass driver, and consequently deliver improved efficiency, power handling and sound pressure levels from a compact design perfect for retro-fit installation.

Complete with integrated fully-sealed back boxes, Monitor Audios latest Controlled Performance range offers installers the most direct route to discreet high performance audio in almost any acoustic environment.  No fewer than ten new models across four performance levels provide a wide choice of in-wall and in-ceiling options for the creative designer. In every case a precision-optimised system of drivers and enclosure perfected by our latest technologies, simplifies the installation of discreet high performance sound.

Unlike open-backed designs whose success is subject to the properties of the wall cavity behind, the new CPs will deliver the full potential of Monitor Audios award-winning speaker engineering. This means that in typical stud-wall and ceiling structures, installers and their clients are guaranteed excellent audio quality and versatility, as well as a superior level of sound isolation between rooms and floors.

Not only can audio be controlled for optimum results. New trimless bezels and super-discreet, paintable magnetic grilles allow the latest CP range to blend almost invisibly with walls and ceilings for a near-seamless integration with decor. Once easily and securely installed via Monitor Audios patented tri-grip mounting, high reliability is assured by CPs airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Monitor Audio CP-WT240LCR At A Glance:

  • Pivoting C-CAM gold dome tweeter.
  • 2 x C-CAM bass drivers.
  • High overall efficiency.
  • High frequency level adjustment (+/-3dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area
    and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Frequency Response

60 Hz - 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

88 dB

Maximum SPL

108.8 dBA

Power Handling (RMS)

100 W

Recommended Amplifier Requirements

20 - 100 W

Crossover Frequency

2.6 kHz @ 12 dB / Octave

Drive Unit Complement

2 x 4" C-CAM cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Dimensions (H x W x D)

217 x 333 mm (89/16 x 131/16")

Overall Depth (Including Grille)

103 mm (41/16")

Cut-Out Dimensions

183 x 299 mm (73/16 x 113/4")

Mounting Depth

97 mm (313/16")

Fixing Type

4 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

2.5 kg (5 lb 8 oz)



Monitor Audio CP-WT240LCR Controlled Performance In-Wall Speaker (each)

£299.00
This product is now sold out and cannot be purchased.
