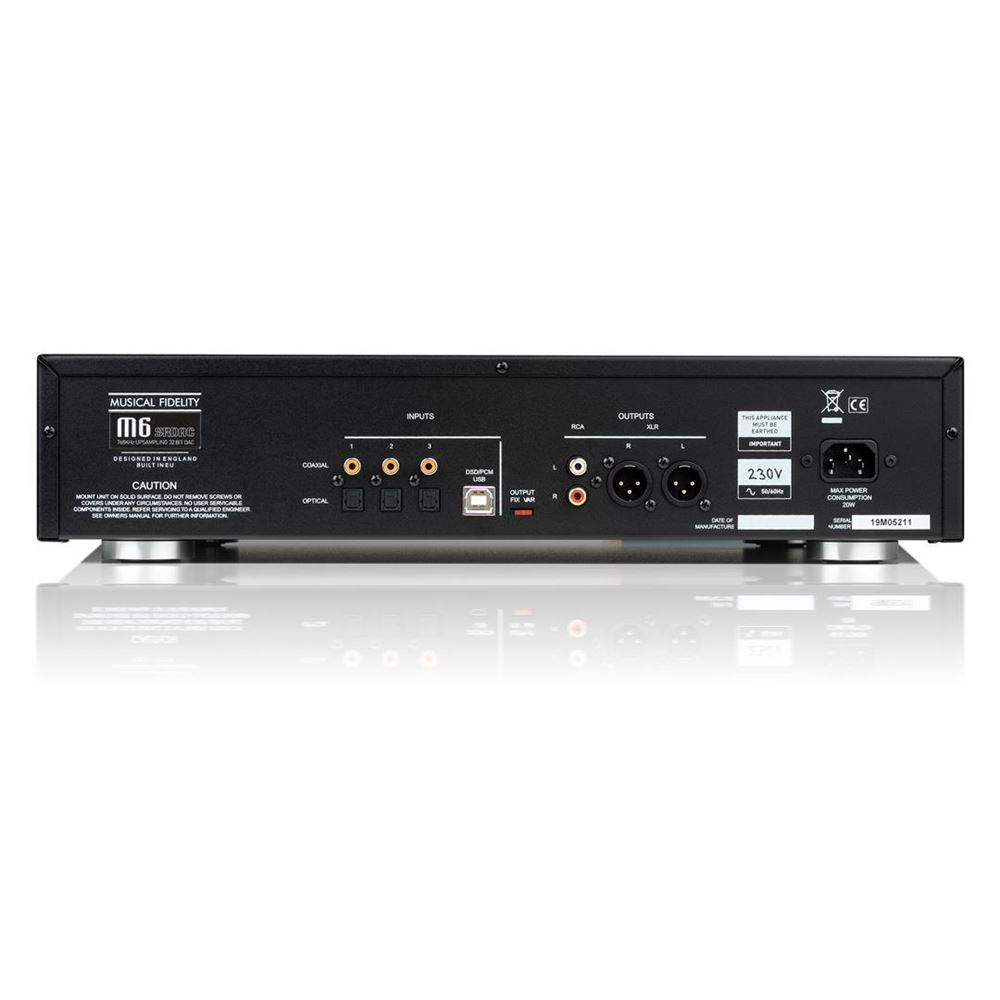

Like the original model, The Musical Fidelity M6S R DAC also has seven inputs including three coaxial and three optical. The USB micro B input has been upgraded to a standard USB B port following requests from consumers. It has also been Roon tested and certified.
While it still accepts all data rates up to 32bit 768kHz and DSD 64/128 (DoP), the upgrade now supports native DSD 256 with ASIO Driver Playback. Highest manufacturing and qualitiy standards are achieved by fully switching the entire production to be made in the EU. Made to tighter tolerances, longevity and build quality are better than ever before.
The M6S R DAC offers exceptional low distortion levels with and low noise floor. stereo separation is above 120dB and linearity is above 110dB. this DSD DAC truly excels in technical performance and will drive your headphones to their maximum performance potential.
Impressive Headphone Amp
Boasting a high performance headphone amp with incredibly low output impedance and single ended and balanced output stage that deliver very low distortion levels, the M6S R DAC is an impressive performer. Switch between fixed or variable mode to enjoy the benefits of the impressive circuitry and exceptional load driving characteristic.
The M6S R DAC delivers a musical experience that is effortless in its grace and transparency. The sonic impression is hypnotic, ensuring your music is reproduced in beautiful quality. Every aspect of the sound is sweet and clear, and the treble can be enjoyed grain free and with an extended bandwidth. Excellent imaging and a dynamic, fast bass response is on offer from the M6S R DAC, all elements fusing together to deliver a performance that puts you at the centre of the music.
- Circuit: 32 bit Hyperstream II
- Correlated jitter: <12pcs peak to peak
- Linearity: <±0.1dB down to -96dB
- Freq response: <2Hz to 90kHz typically
- 3dB (192 kHz input sample rate)
- Channel seperation: >105dB 20Hz-kHz
- Signal to noise: >120dB "A"-wtd
- THD: <0.0012% 10Hz to 20kHz
- Power: 1.5W/channel into 32Ω
- Output devices: 2 per channel
- Impedance: 40Ω, for 10-600Ω headphones
- THD: <0.005% typical 20Hz to 20kHz
- Signal/noise ratio: >115dB "A"-wtd
- Freq response: +0, -1dB (20Hz-50kHz)
- 3x Coax, up to 24bit/192 kHz (PCM)
- 3x Optical, up to 24bit/96 kHz (PCM)
- 1x USB B Class 2; up to 32bit/384kHz (PCM)
- USB DSD support: 64/128 (DoP), 256 (native)
- 1 pair line level RCA fixed
- 1 pair line level XLR fixed
- Output impedance: 47 ohms
- Output @0dBFS: RCA - 2.2V RMS
- Nominal (RCA): 4.4V RMS (XLR)
- Headphone out: 6.3mm jack variable
- Mains: 230V/115V or 100V optional
- Consumption: 20 Watts maximum
- Dimensions (WHD): 440 x 100 x 380mm
- Weight: 6.9kg
