The MX-VYNL is a fully balanced, very high performance phono stage, able to operate with virtually any moving coil or moving magnet cartridge. With both traditional RCA inputs and our unique XLR fully balanced connection the MX-VYNL can be connected to 2 turntables simultaneously.

The MX-VNYL offers a wide range of input impedance settings for moving coil cartridges as well as several capacitance settings for moving magnet units. Unlike many competitors units the MX-VYNL allows easy adjustment of these settings while playing, this allows easy experimentation and tuning to find the optimum setting for all your equipment. It also includes Musical Fidelity's renowned RIAA correction that offers extremely accurate results to beyond 80kHz.

With both extraordinarily low noise and exceptional overload margin the MX-VYNL can comfortably handle even the most demanding of cartridges and satisfy the most discerning of listeners.

Key Features:

  • Fully balanced XLR and traditional RCA inputs and outputs
  • Fully isolated inputs allow for switching between two turntables at once
  • Adjustable input impedance on MC whilst it is playing
  • Adjustable capacitance on MM whilst it is playing
  • Very wide overload margin
  • Accurate RIAA to beyond 80kHz
  • Incredible noise ratio
  • Low impedance output
  • State of the art SMD technology
  • Beautiful aesthetics and build quality

Technical Data

Output voltage: 4 Volts RMS single ended from RCA sockets
8 Volts RMS balanced from XLR sockets
Frequency response: RIAA ±0.1dB IEC ±0.1dB
Channel seperation: MM: <-86dB
MC: <-83dB
SNR A-wtd: MM: <-101dB
MC: <-98dB
THD: MM: <0.07%
MC: <0.01%
XLR input: MM: 5mV / 2.5mV selectable . 70mV max (23dB headroom)
MC: 0.8mV / 0.4mV selectable. 12mV max (24dB headroom)
Inputs: Balanced Mini-XLR
RCA 1 pair RCA sockets
Outputs: Balanced XLR male sockets EIA Standard RS-297-A
RCA 1 pair RCA sockets
Power: Connector: 1.3mm pin DC power jack
Outboard PSU: 12V/500mA DC
Mains voltages: 100-240VAC 50-60Hz universal worldwide supply
Consumption: <8 Watts
Weight: 1.9kg (unboxed)
Dimensions Width: 220mm
Height: 53mm (including feet)
Depth: 215mm
Accessories: Mains adapter

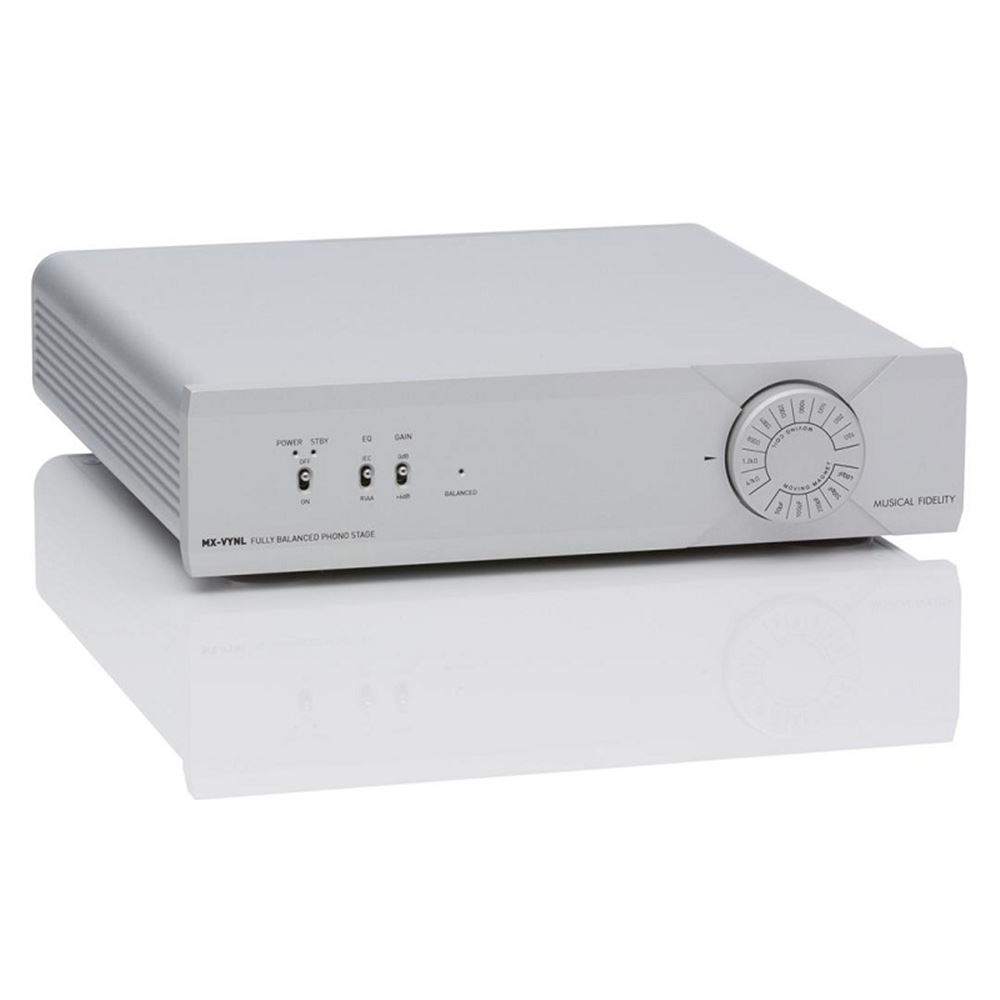

Musical Fidelity MX-VYNL MM / MC Phono Stage
