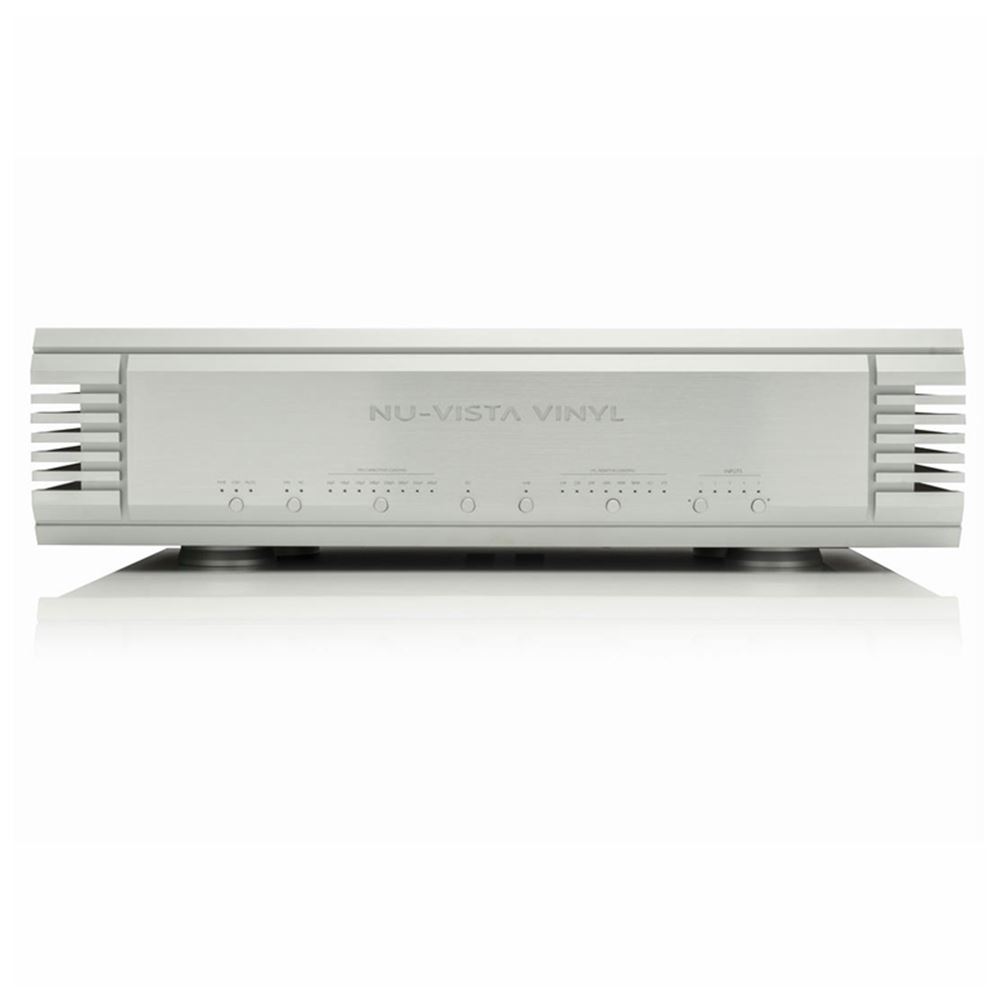

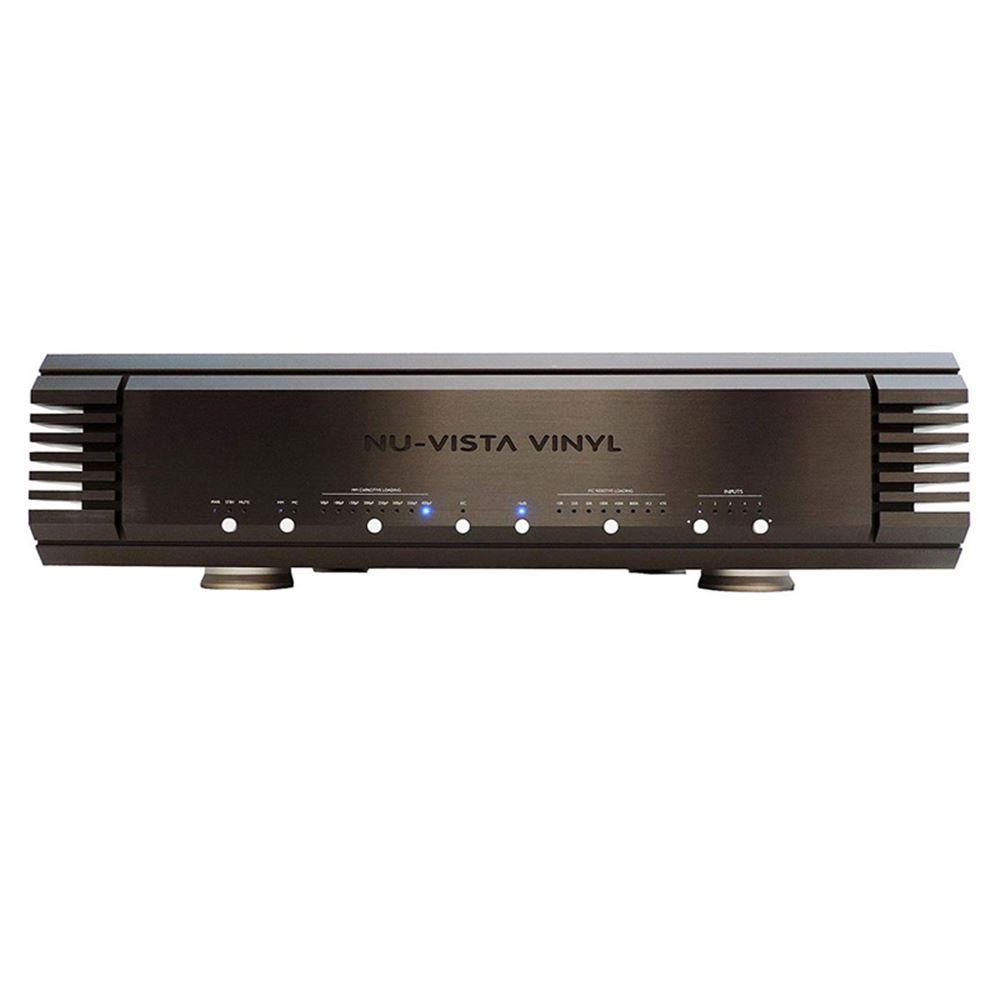

The Nu-Vista Vinyl was a labour of love for MF who love phono, adore tubes and are passionate about Nuvistors.
Musical Fidelity set out to make a phono stage without any practical limits. Essentially, in real life, you cannot overload the input stage or find any practical limitations in the output driving capacity. Single ended or balanced. This reference level phono stage has five inputs, each can be set for either MM/MC and exact loading. It will remember those settings.
The true point of any electronic, actually any audio component, is that you don't know it is there. You completely forget its existence. By that criteria the Nu-Vista Vinyl is almost perfect. It has no practical audible noise, it doesn't really have distortion, you cannot overload its input or output, you can load your cartridge perfectly.
It exists to serve, serve the music. To bring the artists intent, emotions and passion to your ears and heart. It has deep bass, tactile and holographic imaging, high frequency clarity with no sibilence, but the big thing it does, the thing that matters is that it eases your soul by getting you to the heart of the music.
Frequency Response: | MM: RIAA or RIAA/IEC (selectable) ±0.2dB MC: RIAA or RIAA/IEC (selectable) ±0.2dB |
Input Sensitivity: | MM: 2.5mV in for 300mV out (at 1 kHz) MC: 250μV in for 300mV out (at 1 kHz) |
Input Impedance: | MM: 47KΩ MC: 10Ω to 47KΩ selectable |
Input Capacitance: | MM: 50-400pF selectable MC: 470pF fixed |
THD (at 1kHz): | MM: <0.01% MC: <0.01% |
Overload Margin: | MM: 31dB MC: 31dB |
Signal to Noise Ratio: | MM: >90dB "A" -wtd MC: >88dB "A" -wtd |

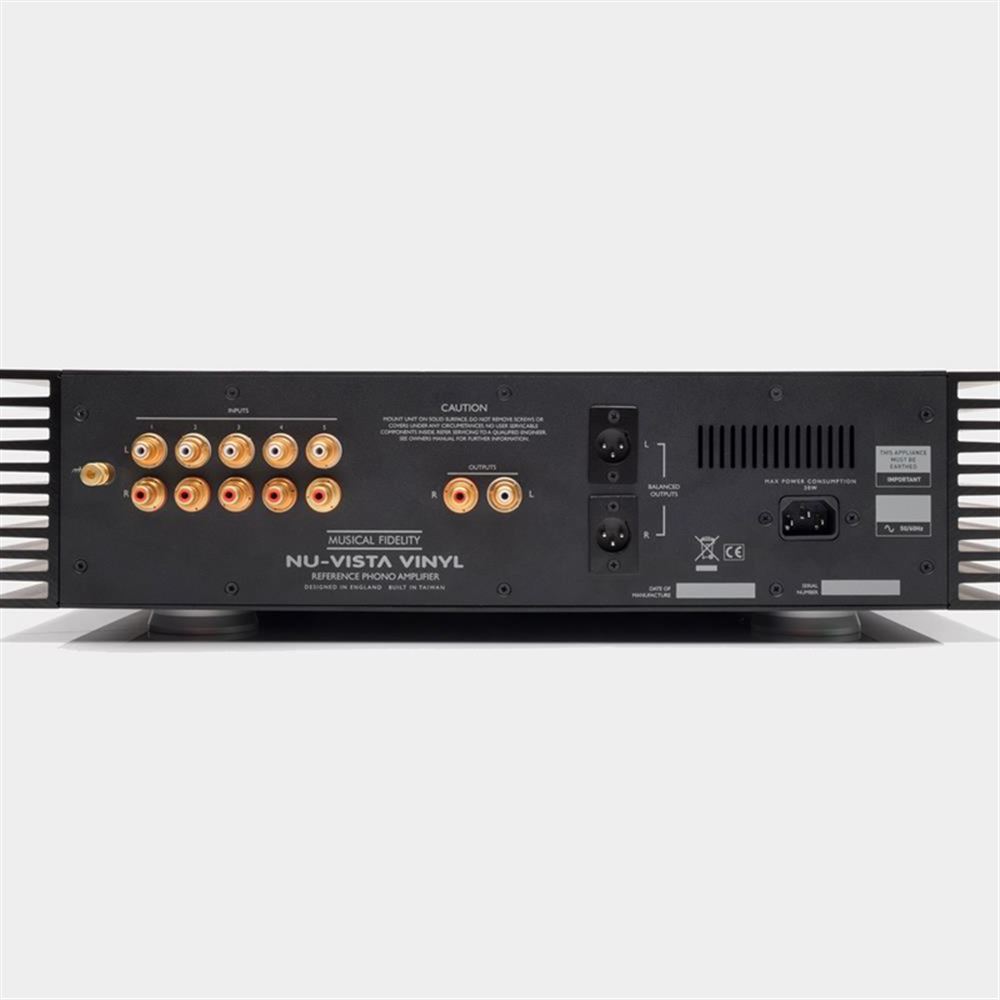

Outputs: | 1x RCA (phono) left & right 300mV nom 10V max 1x XLR (balanced) left & right 600mV nom 20V max |
Mains Voltage: | 230V/115V internally set or 100V optional AC 50/60Hz |
Consumption: | 30 Watts maximum |
Weight: | 14.5kg |
Dimensions | Width: 482mm Height: 130mm (including feet) Depth: 385mm (including terminals) |
Accessories: | Mains lead 10 Amp IEC |
