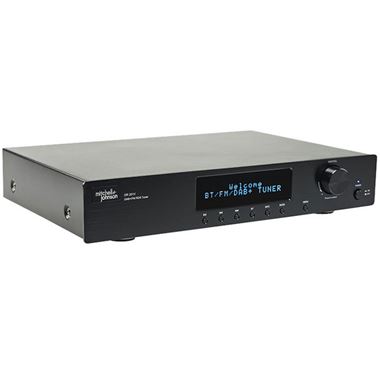

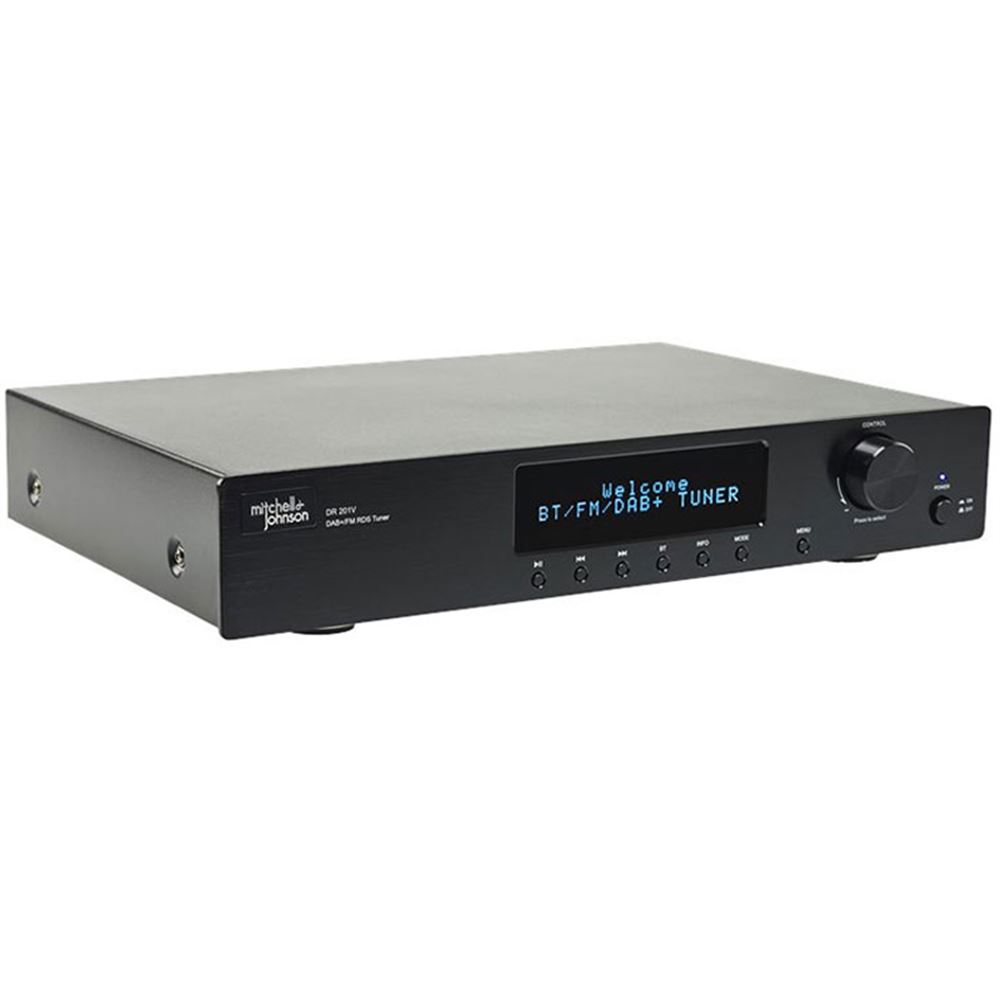

Mitchell and Johnson DR-201V FM / DAB+ Tuner with Bluetooth

Mitchell and Johnson DR-201V FM / DAB+ Tuner - A full width DAB/DAB+ tuner with added advantage of FM waveband reception capability, PLUS connect via Bluetooth to stream music from your smartphone, tablet or laptop. Solidly built, like the entire 201 series, this tuner packs a real punch, delivering clean highs and smooth lows with an overall ‘best in class’ sonic performance. Finding your favourite stations is easy with the large two line 128 x 64 VFD dot matrix display, ensuring easy viewing of station ident and other information. Connection to your system is a breeze with all options covered. Connect via stereo RCA outputs for analog systems or coaxial or optical for the latest digital setup. An RS232 connection enables easy integration in to a custom installation.

FEATURES:

Bluetooth playback from compatible Bluetooth device

DAB, DAB+ and FM waveband

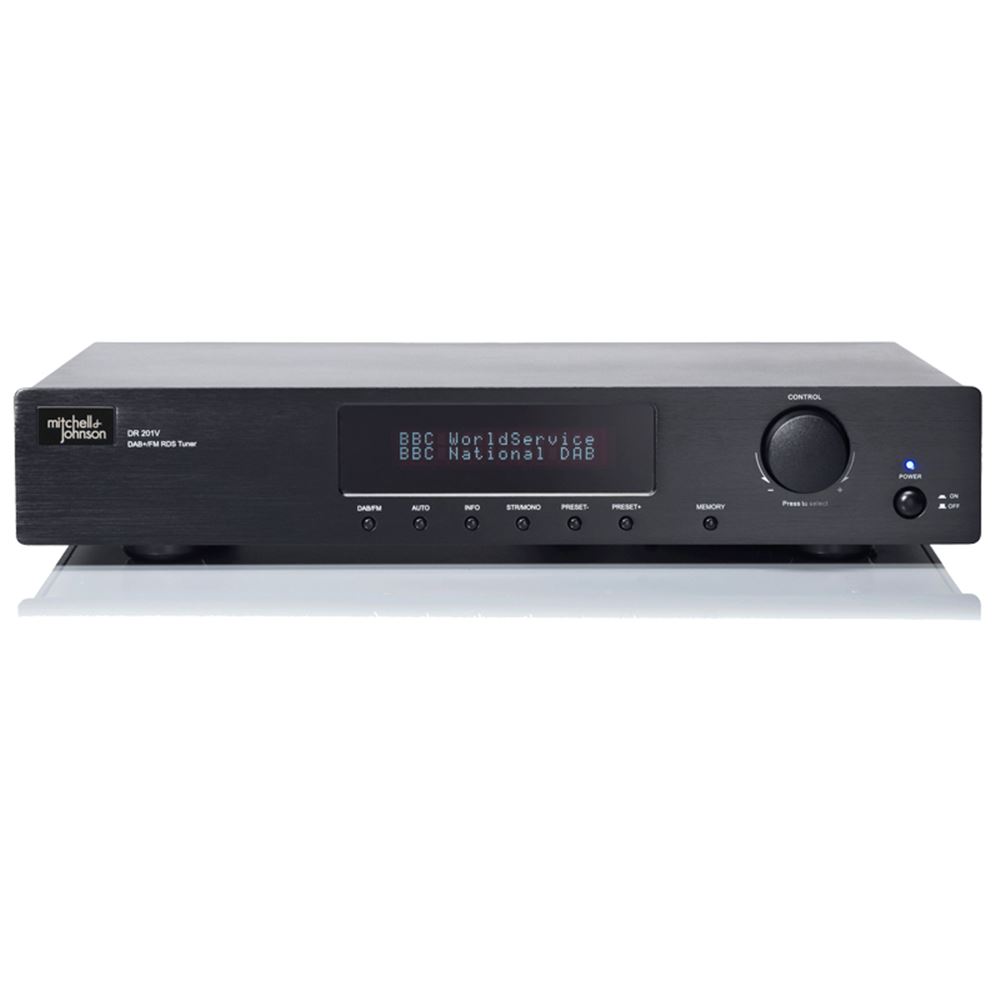

Two-line dot matrix VFD display

10 station presets

RDS FM Tuner

Output Level
DAB 2.2V +/- 2dB @ 1KHz 0dB
FM 1.3 v 98MHz@75KHz Dev. Fmod=1KHz

Signal to Noise Ratio
DAB @2Vp-p, with instrumental 20k LPF enabled. >85dB (A) FM Ultimate signal to noise ratio 98MHz @60dBuV/75KHz Dev. Fmod=1KHz, Amplitude=1.3Vpp Mono >75dB

Total Harmonic Distortion (THD)
DAB @2Vp-p with instrumental 20K LPF enabled <0.1%FM 98MHz@60dBuV/75KHz Dev. Mono Fmod=1KHz, Amplitude=1.3Vpp <0.5%

Frequency Range
DAB BAND 3: 5A 174.928MHz - 13F 239.200MHz
FM 87.5MHz - 108MHz

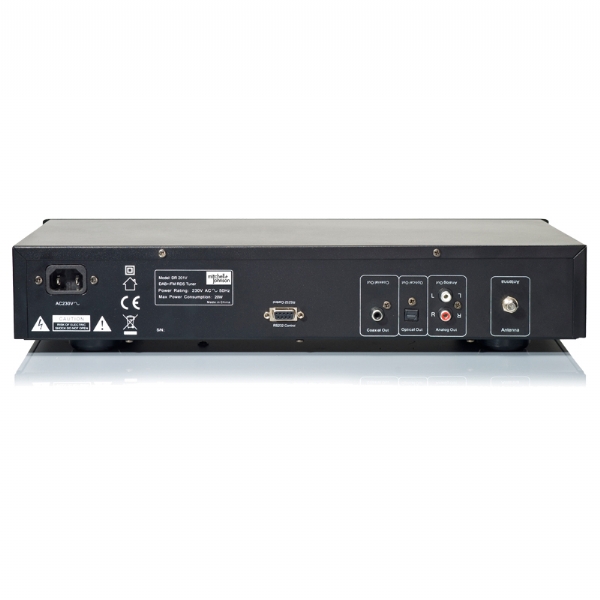

Analog Outputs
RCA/phono stereo left & right x 1

Digital Outputs
COAXIAL x 1,Optical TOSLINK x 1
Control Interface
RS232

RF Input
F Type connector (screw thread)(to VHF/FM diplexer) 50 ohms

Power Supply
AC 230V, 50/60 Hz

Power Consumption
Max 20W

Dimensions
(WxHxD) : 430 x 80 x 283 mm

Weight
4.8kg
