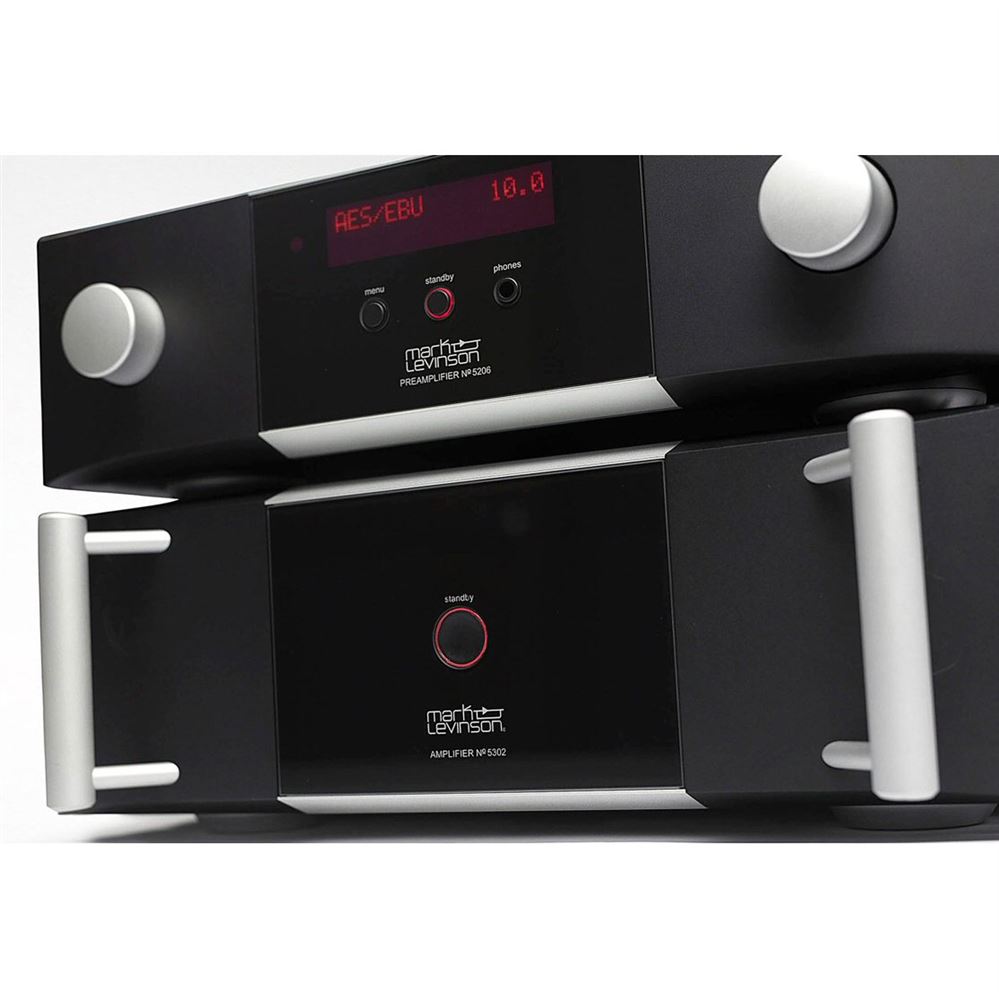

Mark Levinson No.5206 Dual Mono Preamplifier with DAC and No.5302 Dual Mono Power Amplifier - Ex Dem Offer Saving £8,000 off the rrp.
In excellent condition. Come with 1 year warranty. All Accessories and Original Boxes and Packaging
We would recommend Chord Company Interconnects. eg. Epic XLR Balanced Interconnects and Epic X Speaker cables

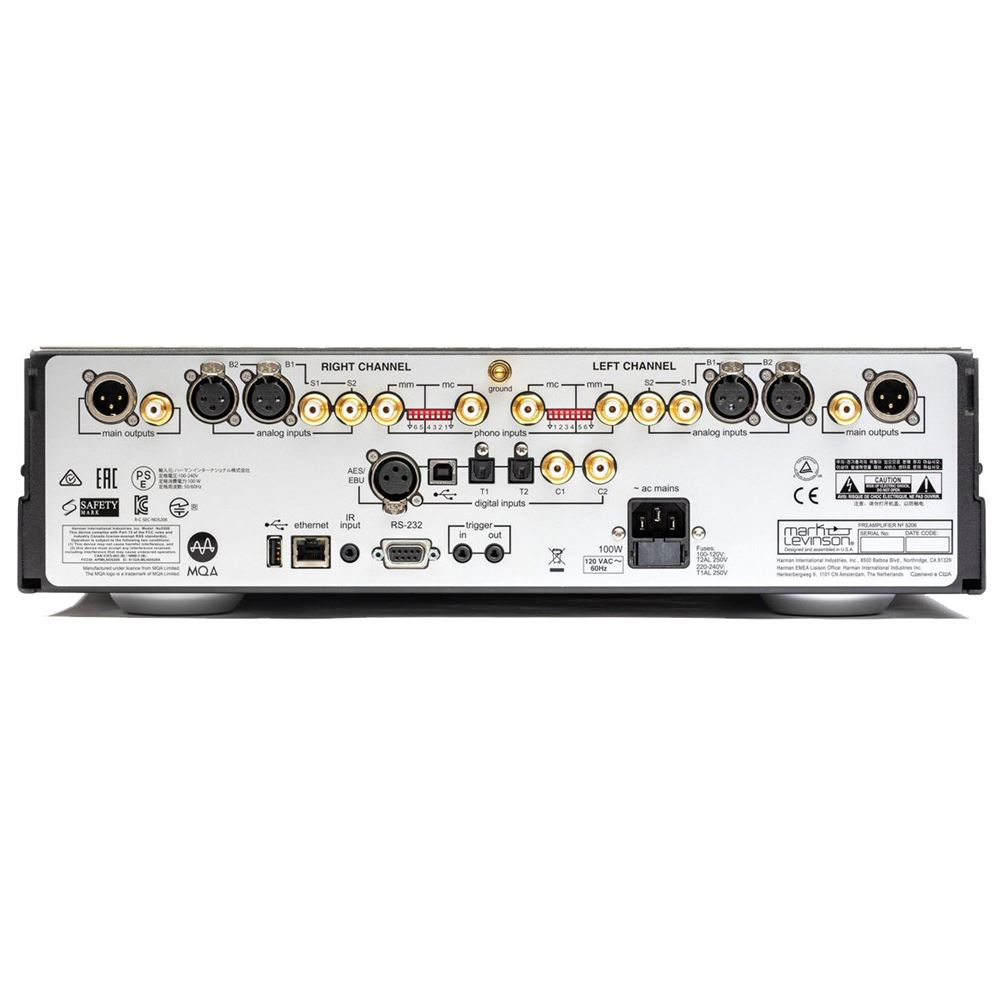

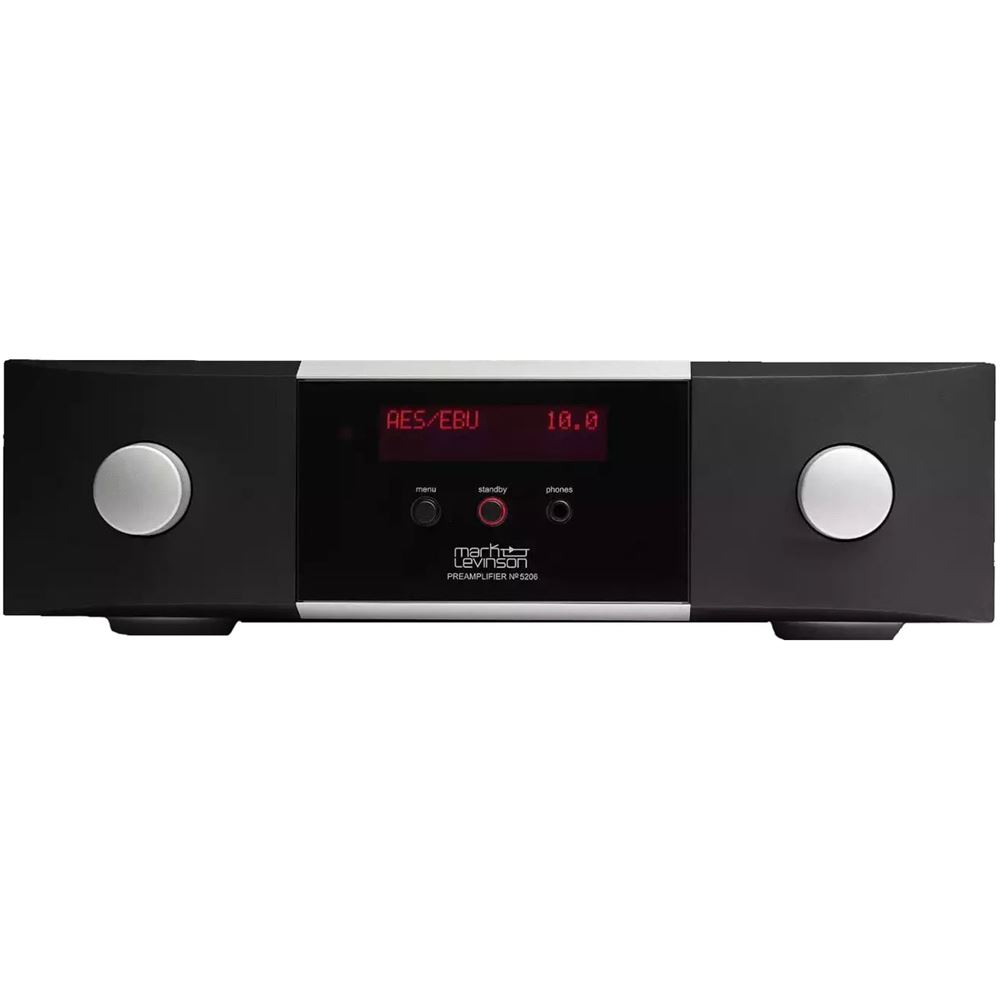

Mark Levinson No.5206
Experience the inner details and maximum dynamics of music with the No.5206. Awarded two patents for groundbreaking design, this class-A preamplifier serves as the hub of your entire audio system. By perfectly preserving both digital and analog audio signals, the No.5206 delivers the purest possible signal, allowing you to hear the full potential of your music.
Highlights
Pure Path class-A analog signal with two awarded patents
32 Bit/384 kHz Precision Link II DAC with 4x DSD Capability
Independent input relays
Class-A high pass subwoofer filter
Premium hybrid topography phono stage
Selectable capacitive and resistive load settings
RIAA equalization
MQA Full Decode certified
Dedicated 80VA toroidal transformer
Extensive internal shielding
Two separate voltage regulation stages
Designed and handcrafted in the USA
Inputs
Moving magnet and moving coil inputs
Bluetooth aptX HD support
Home theater processor pass-thru mode
Outputs
Balanced XLR and single-ended RCA outputs
Main Drive class-A headphone output
Control
Mark Levinson 5Kontrol App
Custom aluminum IR remote
IP, RS-232, 12V Trigger In/Out

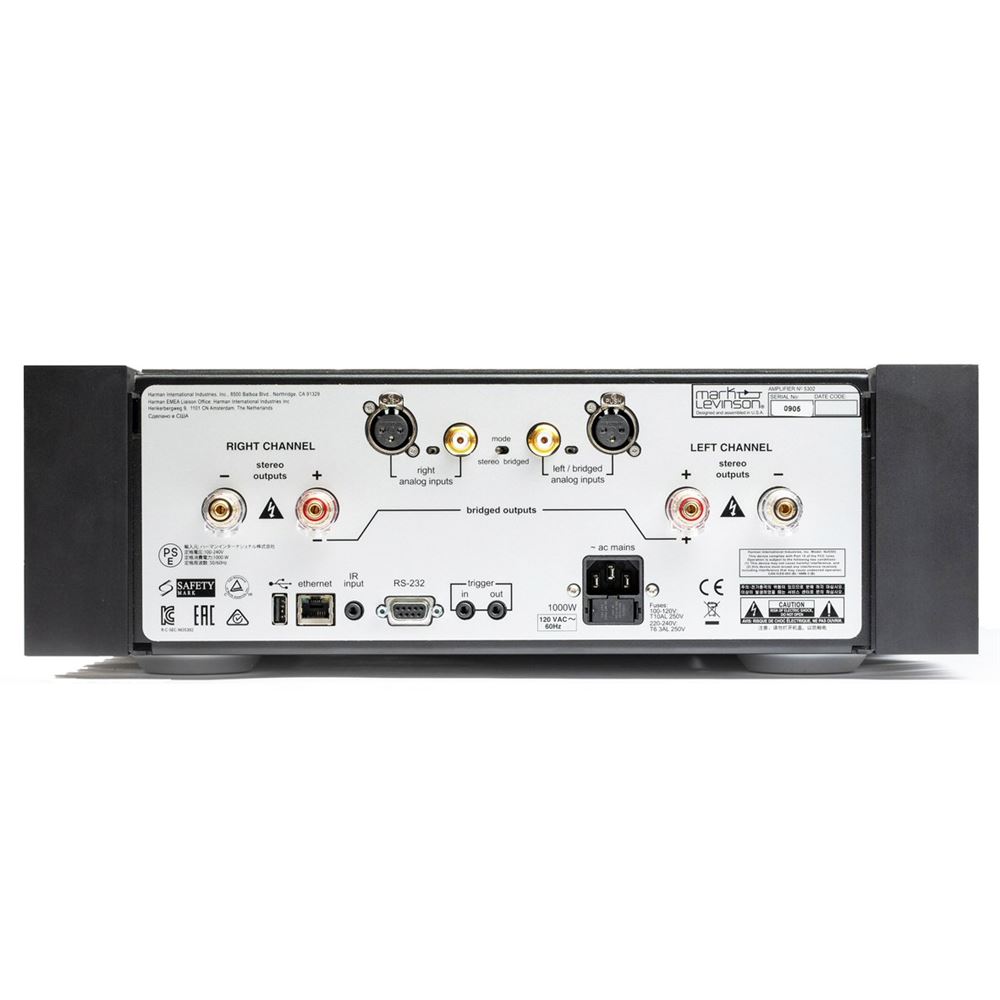

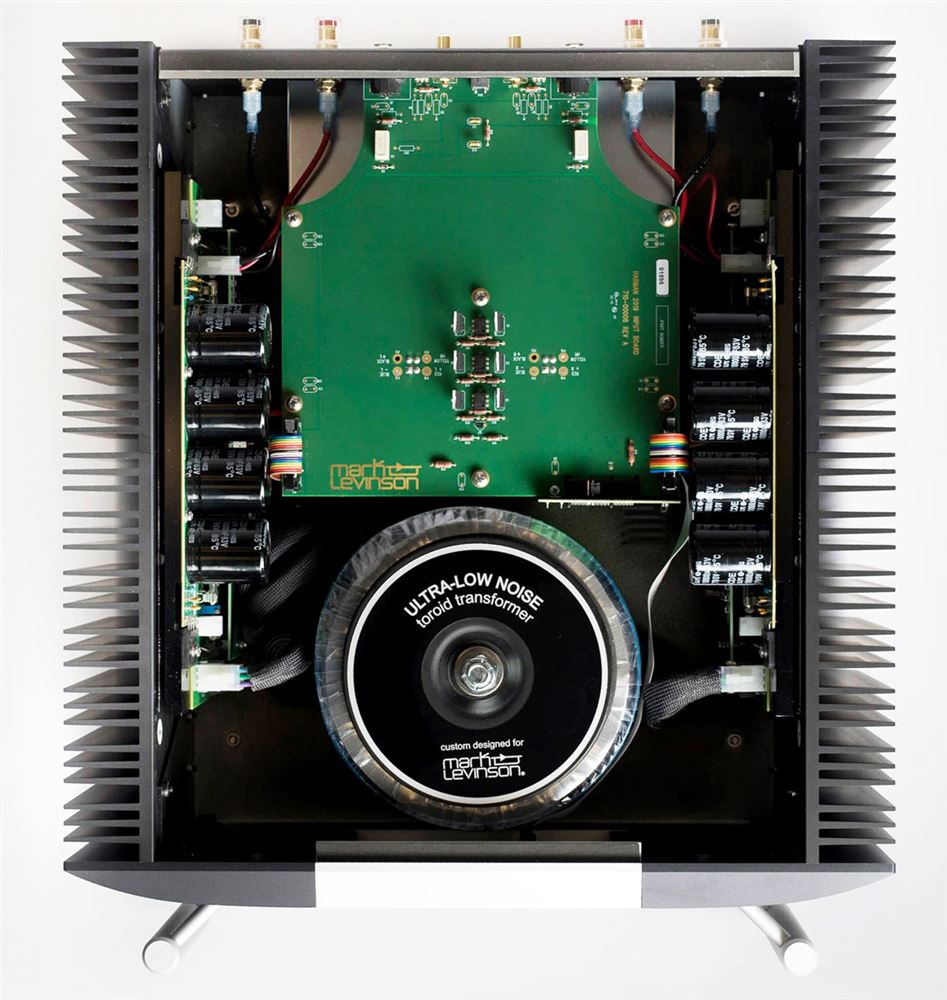

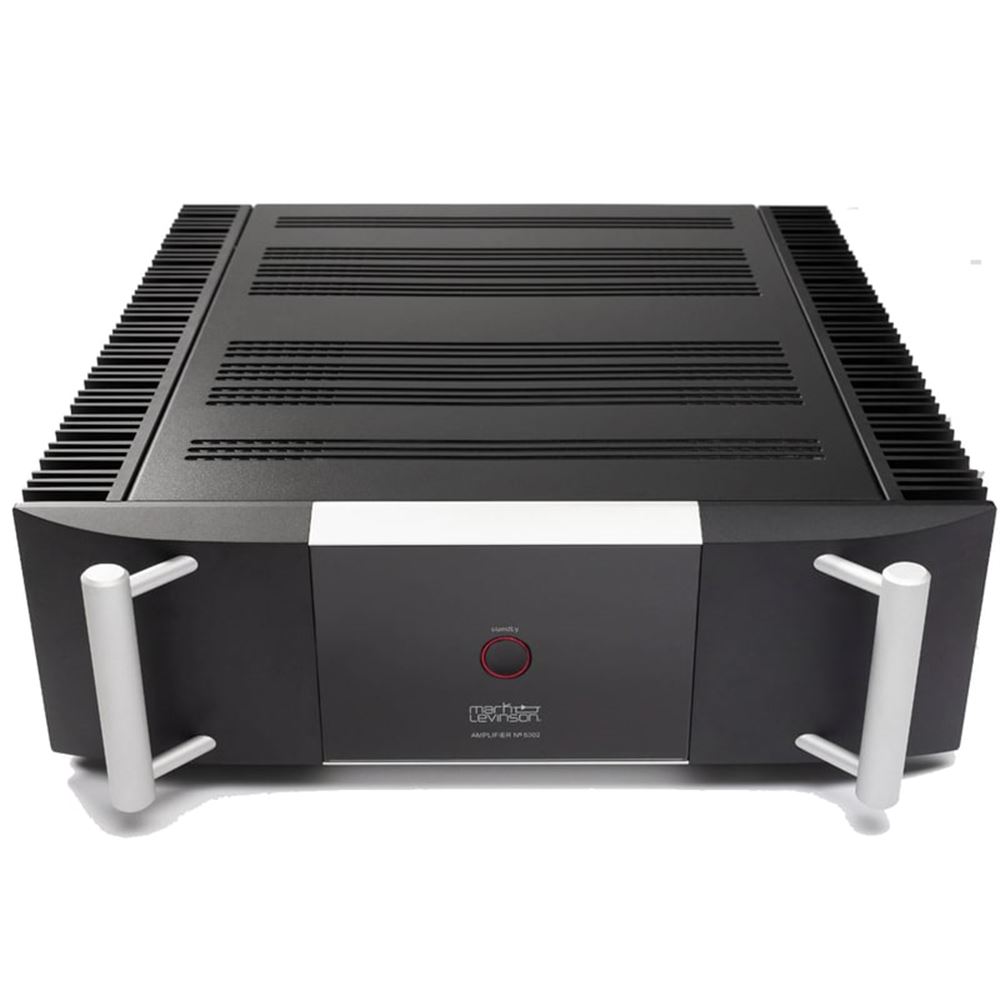

Mark Levinson No.5302
The Mark Levinson No.5302 amplifier was created to deliver all the performance and quality expected from Mark Levinson with exceptional value and accessibility to a broader range of customer. Iconic Design... With bold geometry and luxurious finishes, the No.5302 is as elegant as it is powerful. The solid aluminum panels flow seamlessly into a sleek glass display. A large standby button is bordered by an understated ring light that indicates the power state. Together, these beautiful details come together to create a stunning, high-quality amplifier that completes your audio system.
Specifications...
Output power: 135W/channel, 8Ω load, 20Hz to 20kHz, at <0.35% THD,
...both channels driven 270W/channel, 4Ω load, 20Hz to 20kHz
Gain: 25.8dB
Input sensitivity: 145mV RMS input for 2.83V RMS output
Total harmonic distortion: <0.04% at 1kHz, 135W, 8Ω load <0.35% at 20kHz, 135W, 8Ω load
Signal-to-noise ratio: >102dB, 20Hz to 20kHz, wideband, unweighted, referred to 135W/8Ω
Control connectors: 1 RS-232 port (DB-9)
1 Ethernet port (RJ-45)
1 USB port for firmware updates (USB-A) 1 baseband IR input (1⁄8″/3.5mm phone jack)
1 programmable 12V DC trigger output, 100mA maximum (1⁄8″/3.5mm phone jack) 1 programmable 12V DC trigger input (1⁄8″/3.5mm phone jack)
Power consumption: Maximum: 1000W
On, idle (stereo mode): 90W On, idle (bridged mode): 70W Normal standby: 35W
Power Save standby: 2W Green standby: <0.4W
Dimensions/Weight Unit only: Height: 5.72″/145mm
Height without feet: 5.25″/133mm Width: 17.25″/438mm
Depth, enclosure only: 18.00″/457mm Depth, with handles and speaker terminals: 20.75″/527mm
Weight: 70 lbs/31.7kg
Height: 13.63″/346mm Width: 24.25″/616mm Depth: 29.00″/737mm Weight: 85 lbs/38.5kg
BRIDGED MONAURAL MODE
Output power: 275W, 8Ω load, 20Hz to 20kHz, at <0.3% THD 550W, 4Ω load, 20Hz to 20kHz
Gain: 31.8dB
Input sensitivity: 73mV RMS input for 2.83V RMS output
Total harmonic distortion: <0.04% at 1kHz, 275W, 8Ω load <0.3% at 20kHz, 275W, 8Ω load
Signal-to-noise ratio: >105dB, 20Hz to 20kHz, wideband, unweighted, referred to 275W/8Ω
GENERAL
Frequency response: Input impedance: Input connectors: 20Hz to 20kHz, +0/–0.35dB <2Hz to 80kHz, +0/–3dB
Output connectors: Balanced (XLR): 100kΩ Unbalanced/single-ended (RCA): 50kΩ
1 pair balanced line-level inputs (XLR) 1 pair single-ended line-level inputs (RCA)
2 pairs high current multi-way binding posts
