Replacement stylus, recommended for the following cartridge models: 510 Mkll, 510, 510 P, Alpha

Technical Data:

Frequency Range:20 - 23,000Hz
Frequency Response 20 - 20,000Hz:+2 / -3dB
Tracking Ability at 315Hz:Typically 70µm
Compliance, Dynamic, Lateral:25µm
Stylus Type:Elliptical
Stylus Tip Radius r / R:8 / 18µm
Equivalent Stylus Tip Mass:0.3mg
Tracking Force Range:1.25 - 1.75g (12.5 - 17.5mN)
Recommended Tracking Force:1.5g (15mN)
Tracking Angle:20º
Stylus Colour:Black

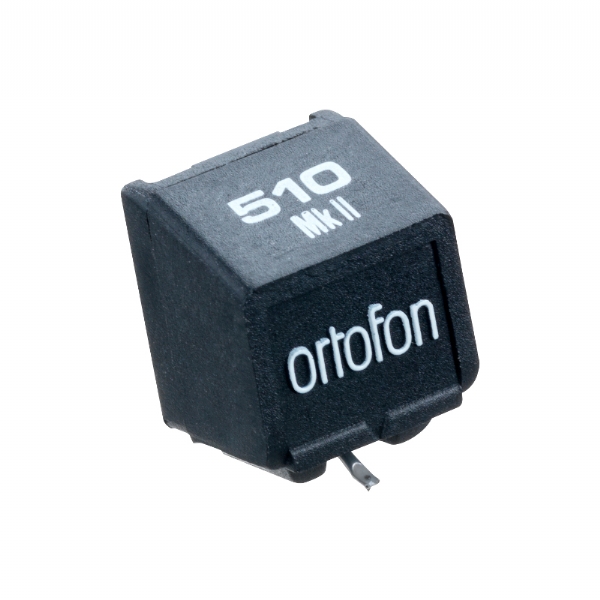

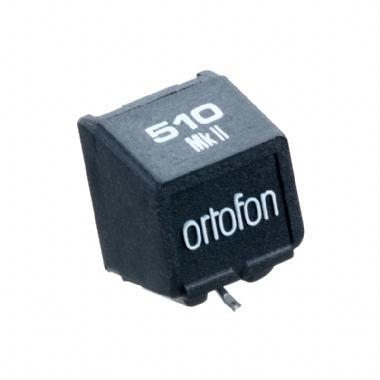

In some production runs, the Ortofon 510 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only.

Ortofon 510 Mk2 / Alpha Replacement Stylus
