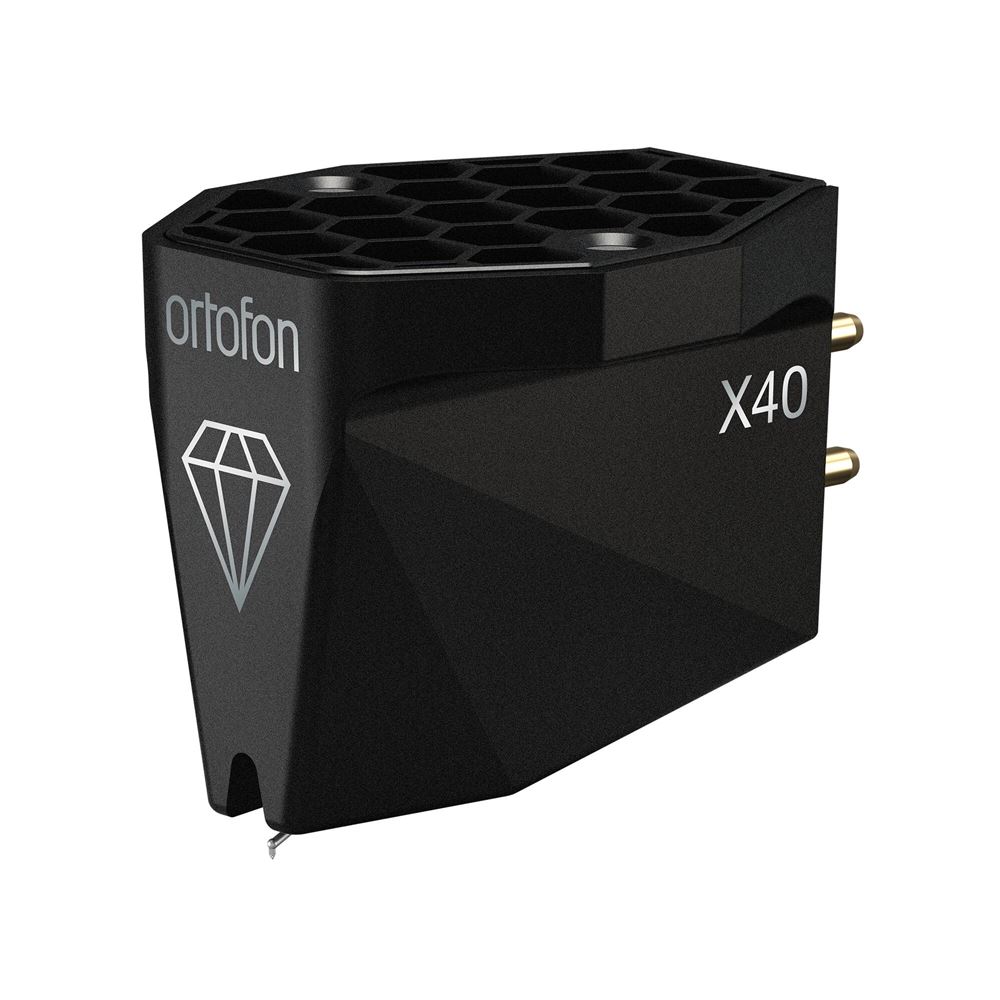

Ortofon MC X40 Moving Coil Cartridge

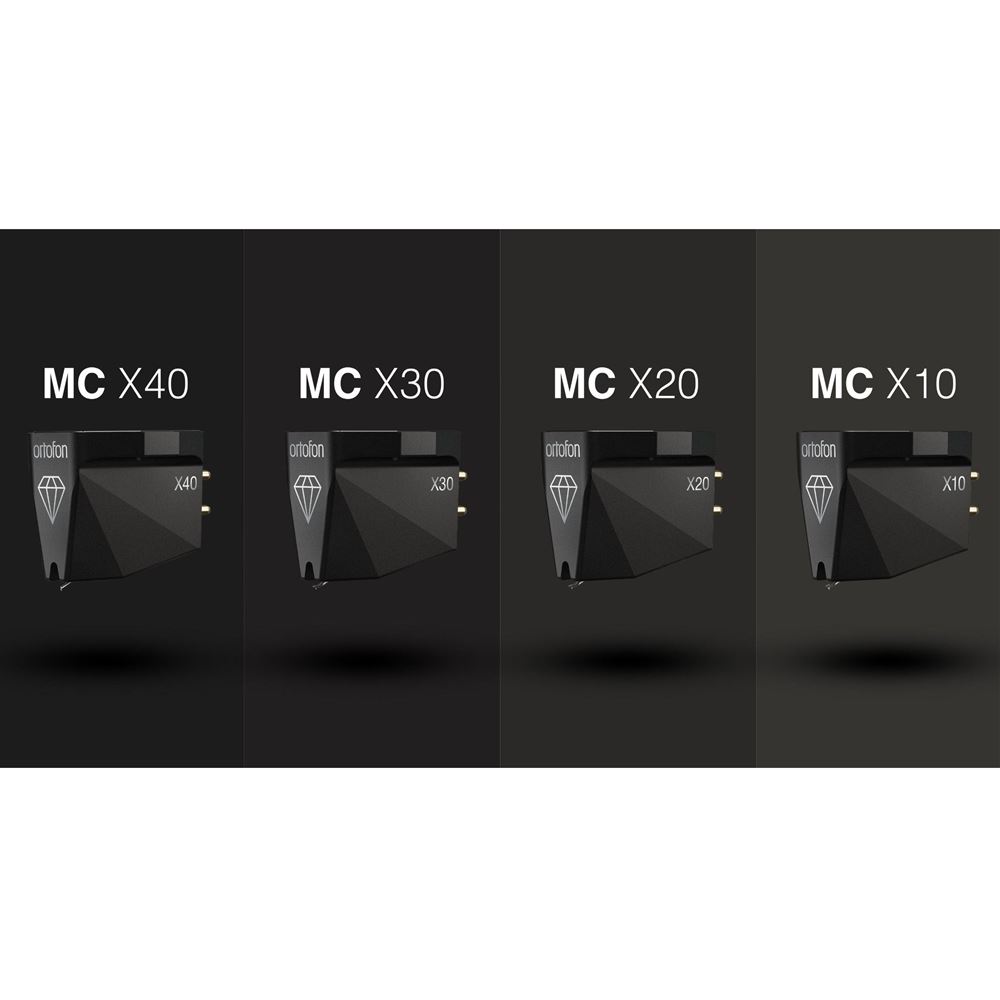

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark, in MC Cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

MC X40 - Achieve Ultimate Fidelity

MC X40 is the pinnacle of the MC X Series, designed for the most discerning audiophile. Featuring a Nude Shibata diamond stylus mounted on a rigid and lightweight boron cantilever, this cartridge provides unparalleled transparency, speed, and responsiveness.

Pure Silver Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

MIM-Moulded honeycomb-structured Core

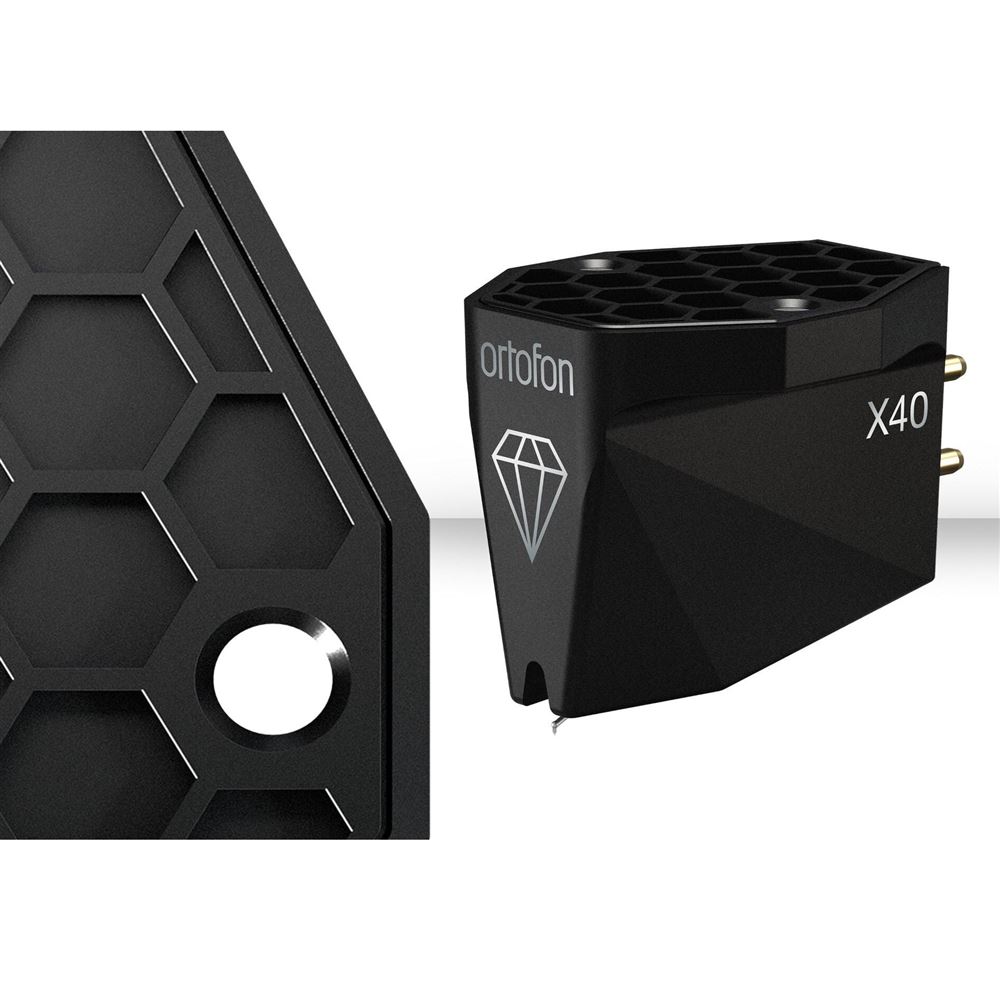

At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Moulding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction. After moulding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

Optimized Magnet System

The MC X Series introduces a newly developed magnet system with a one-piecem pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Custom-Developed Rubber Dampers

In-house produced and developed rubber compounds form the core of the MC X Series' mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

The Shape of Sound

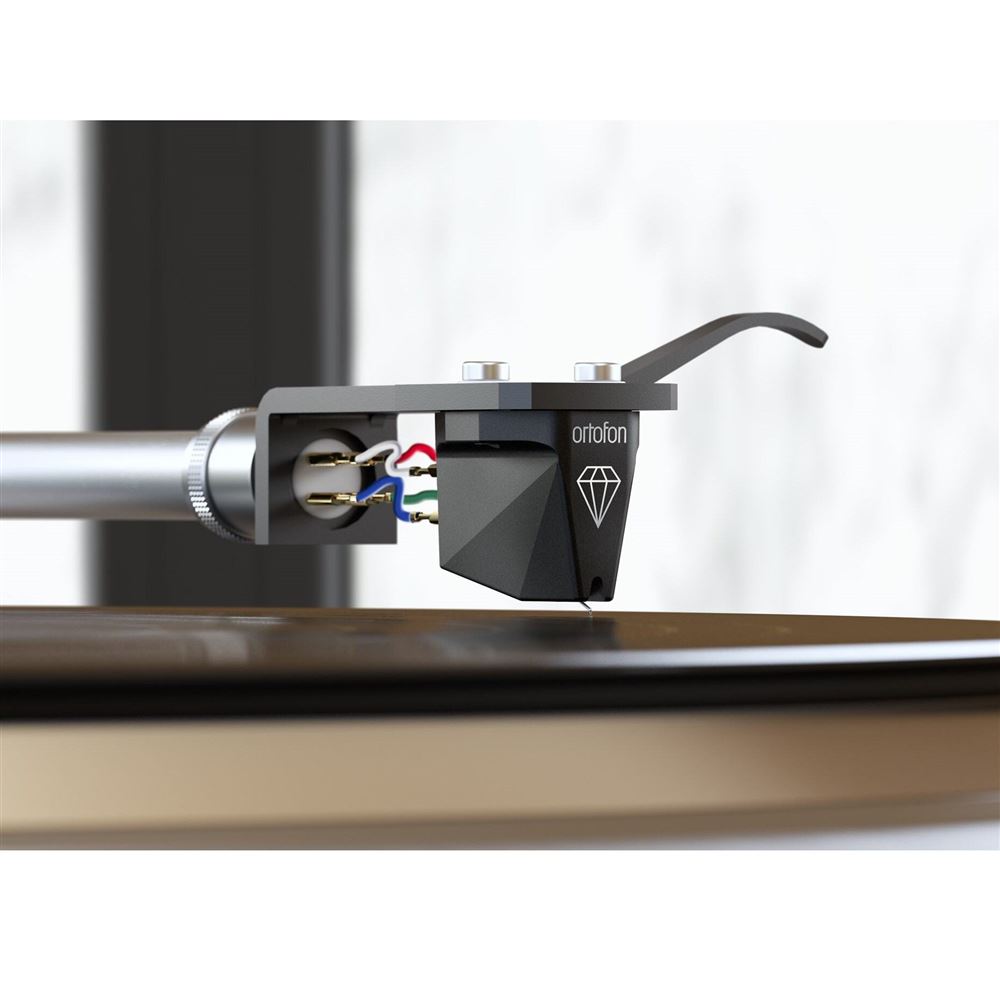

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon's signature aesthetic, it's a sophisticated fusion of form and function.

Specifications

Model name: MC X40
Output voltage: 0.4 mV
Cantilever material: Boron
Stylus type: Nude Shibata
Ortofon Stylus suspension: Ortofon exclusive
Coil system: Quad coils
Coil wire: High-purity silver
Frequency response 20 Hz - 20 kHz: +/-1 dB
Recommended tracking force: 2.0 grams
Recommended load resistance: > 50 Ω
Cartridge weight: 8.6 grams
