The Pioneer VSX-LX504 creates the soundscape of IMAX® Enhanced*1 and Dolby Atmos®/DTS:X ideally calibrated with Advanced MCACC, and even provides similar sound effects with Dolby Atmos Height Virtualizer*1 without height or surround speakers. Enjoy spectacles from next generation video standards with support for HDCP 2.2, or stream songs across the house with SONOS system, FlareConnect™, Chromecast built-in, DTS Play-Fi®, and Apple AirPlay 2. Other features include Powered Zone 2/Zone 3 Audio, up to 11.2 MHz DSD direct playback, and 2 HDMI outputs.
- Channels: 9
- Amplification Type: Direct Energy
- 215 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- 180 W/ch (8 ohms,1 kHz, THD 1 %, 1ch Driven IEC)
- IMAX Enhanced*1
- Dolby Atmos®, Dolby Surround Upmixer
- DTS:X®, DTS Neural:X® Upmixer
- Reflex Optimizer
- Dolby Atmos Height Virtualizer*1
- Dolby® TrueHD, Dolby Digital Plus
- DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
- DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch)
- DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)
- Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)
- 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
- Enhanced Audio Return Channel (eARC) on HDMI
- Advanced MCACC Auto Room Tuning
• Auto Phase Control Plus
• Subwoofer EQ
• Multi-point Standing Wave Control
- Advanced Sound Retriever (2ch)
- Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
- Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)*2
- HDR10, HLG and BT.2020 Compliant Wide Colour Gamut Signal Pass-through
- Dolby Vision™ Compatible
- Ultra HD Upscaling (1080p to 4K)
- 3D Ready (Blu-ray Disc™, Broadcast, and Games)
- Deep Colour (36-bit), “x.v. Colour”
- Dimensions (W x H x D): 435 x 185 x 386 mm
- Weight: 13 kg

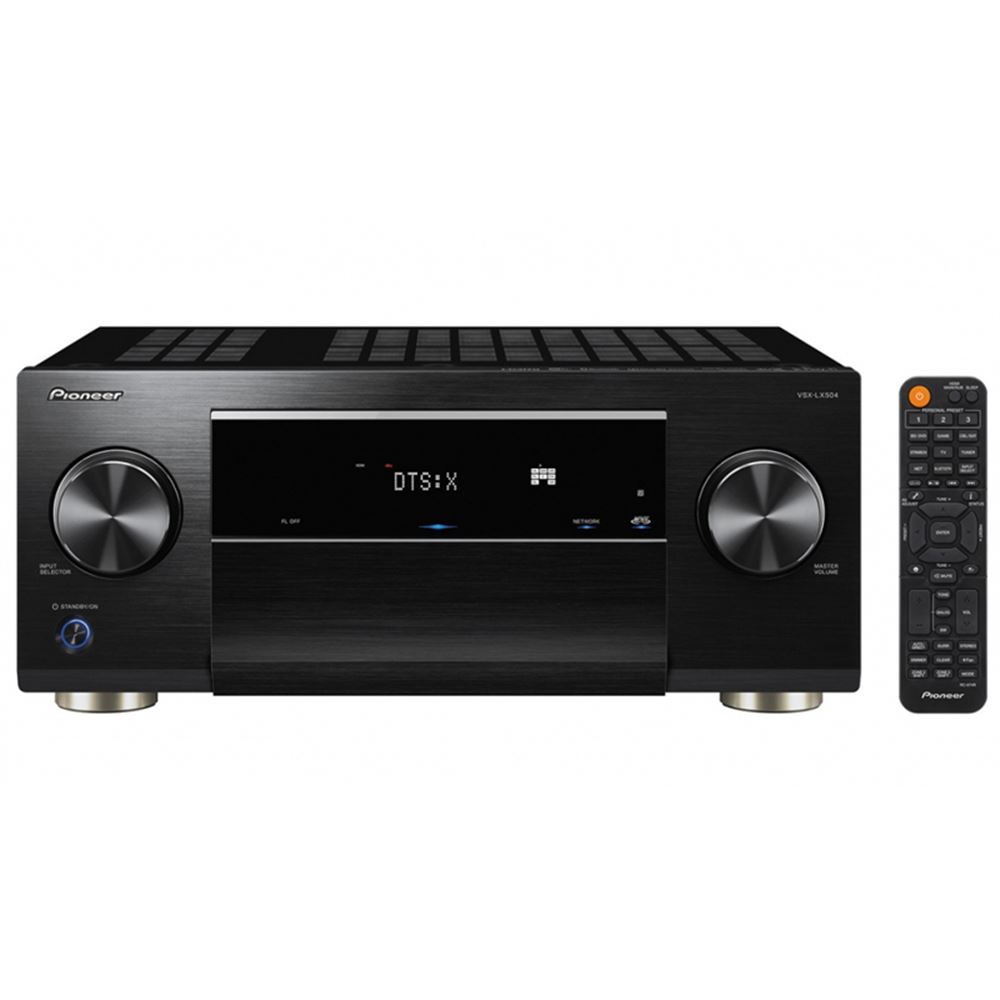

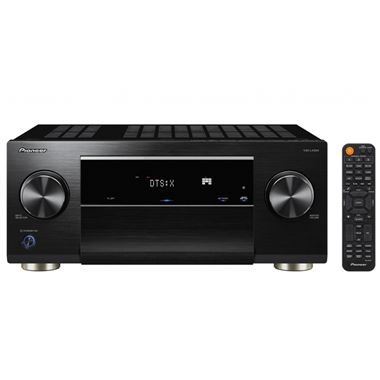

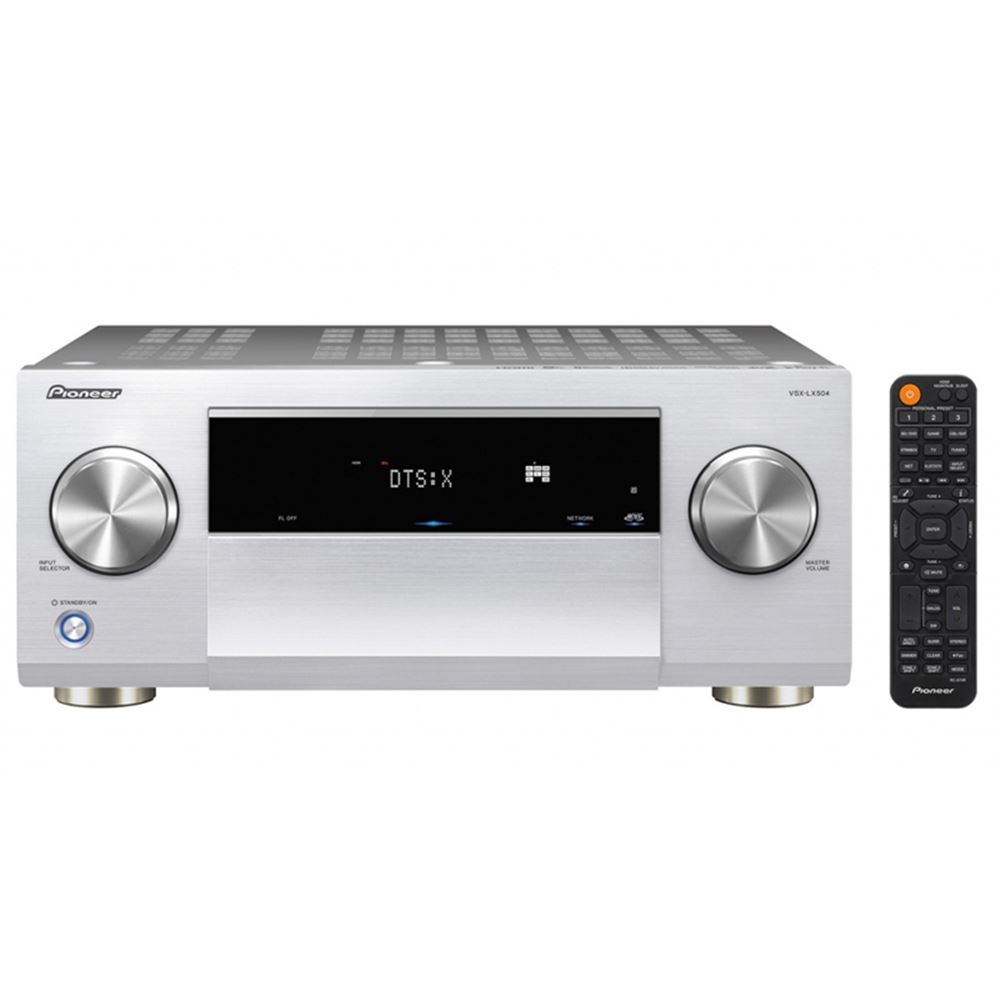

Pioneer VSX-LX504
