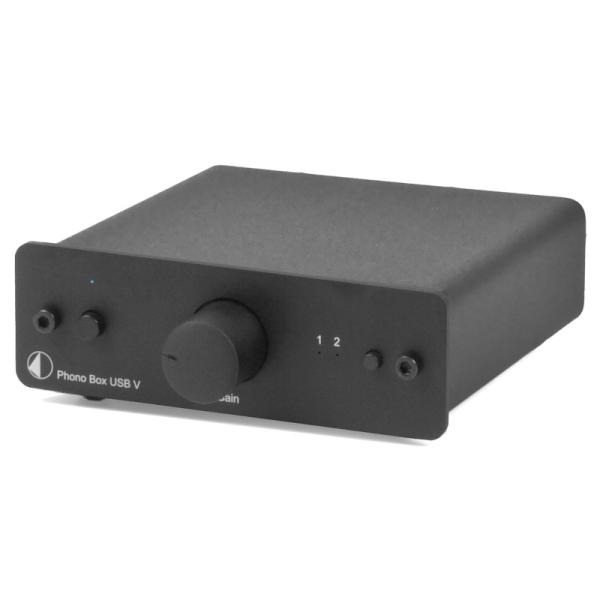

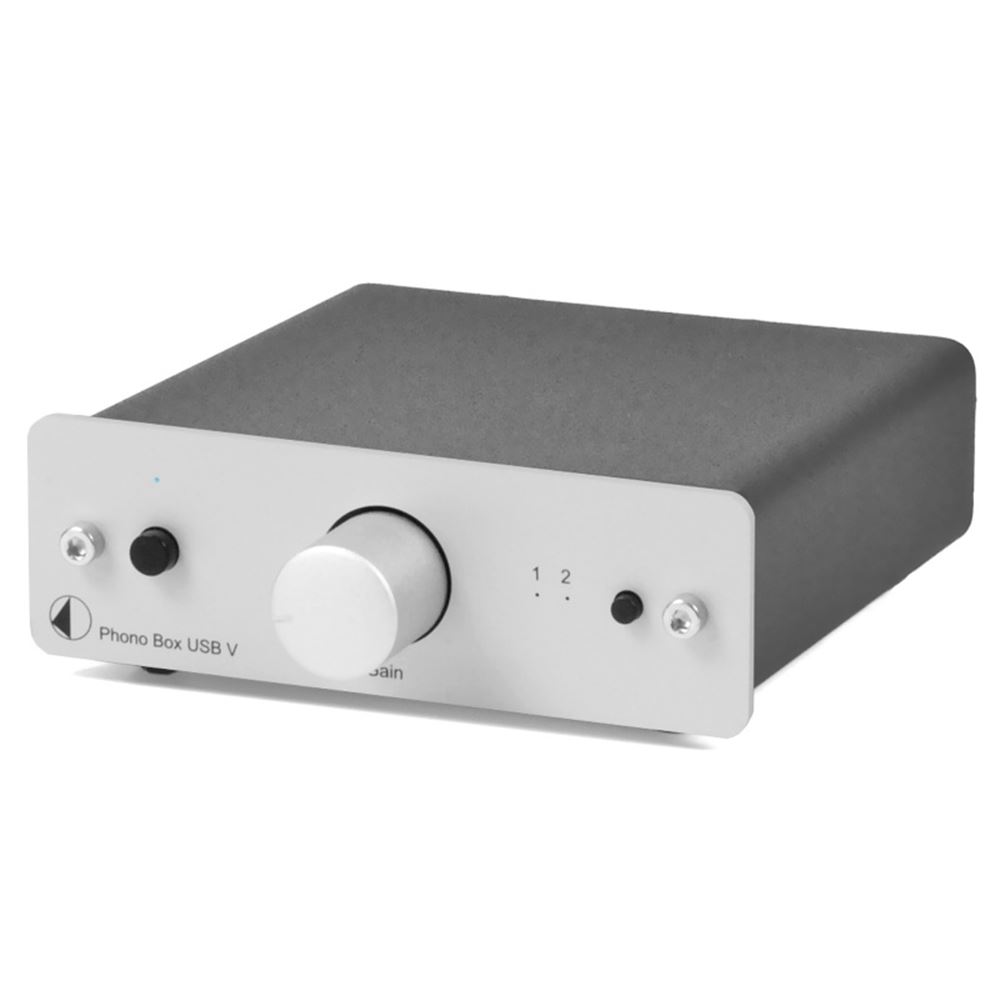

Project Phono Box USB V Phono Stage.
The same great quality performance as our highly respected Phono Box II, except now there's the addition of a high-quality A/D converter!
Now at the same time as listening to your music through your traditional hi-fi, you can record your vinyl to a computer or laptop, which will later allow you to transfer your music to your iPod or other digital music source. The front-facing attenuator on the unit allows for full control over the gain of your USB signal; this can help avoid distorted and/or 'clipping' recordings. This unit also benefits from a Line input, allowing you to record Line-Level sources, such as a tape deck, to your computer as well.
Metal case shields the electronics from external interference.
Small size allows installation close to record player.
Special low-noise ICs used.
Optimal channel separation through dual-mono circuitry.
Gold plated RCA connection sockets.
Outboard power supply included.
Amplification and RIAA equalisation for MM and MC cartridges

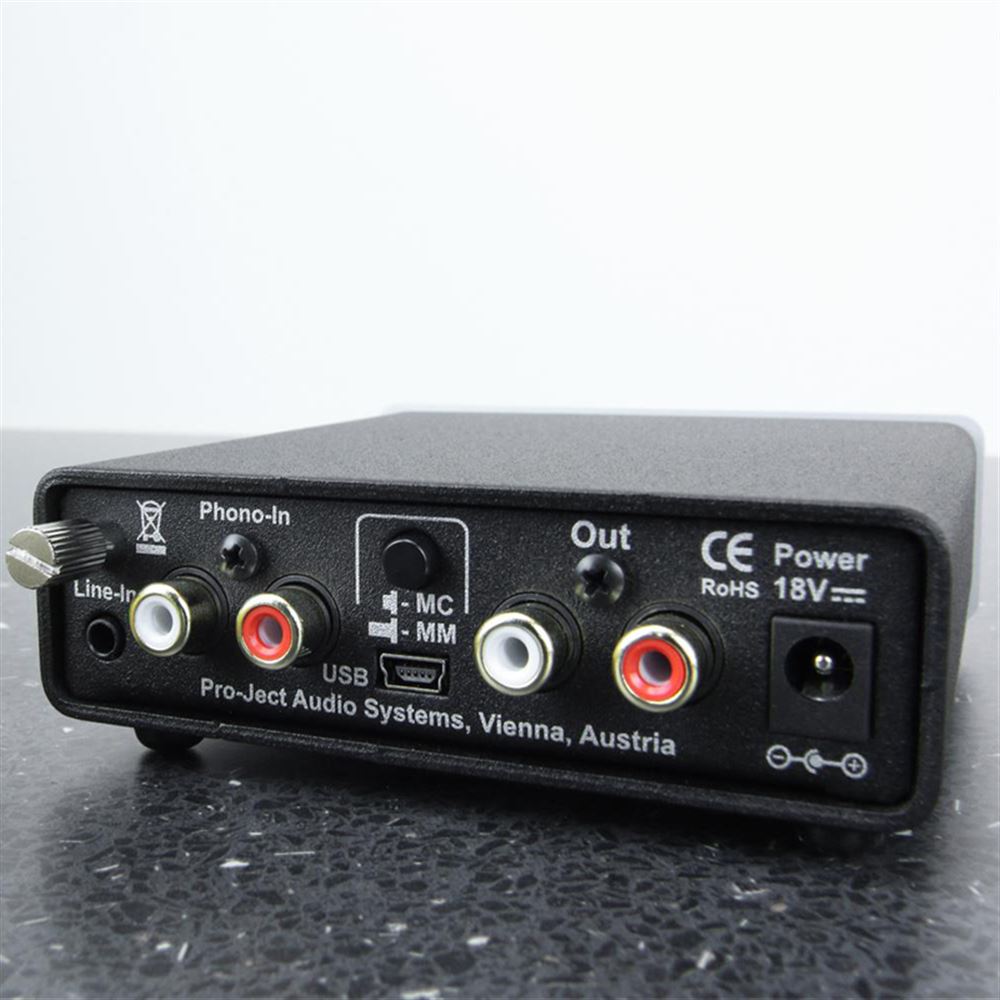

Phono MM/MC selection switch located at the rear of the unit
Works with a wide variety of audio recording programs to transfer your vinyl
Driver-less connection method for simple set-up
Runs on Windows® and Mac OS® operating systems
Input Impedance: MM: 47kO, MC: 100O
Input Capacitance: MM: 120pF, MC: 120pF
Gain: MM: 40dB, MC: 60dB
Line Input: 11dB
Output Voltage (Typically): MM: 300mV/1kHz (at 3mV / 1kHz), MC: 300mV (at 0.3mV / 1kHz)
Max. Output: 9.5V (1kHz)
Noise Floor MM/MC: MM: 94dB (A Weighted), MC: 75dB (A Weighted)
THD: MM: <0.01%, MC: <0.05%
RIAA Accuracy: 20Hz - 20kHz / max. 0.5dB
A/D Converter: Burr Brown PCM2904 16-Bit Delta Sigma
Sampling Rates: 32, 44.1 and 48kHz
USB Output: Type B (Mini)
USB Signal: Digital Serial Data Protocol USB 1.1
Operating Systems: Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Mac OS
Inputs: RCA (Pair) / 3-Pole 3.5mm Mini-Jack
Outputs: RCA (Pair)
Power Consumption: 100mA DC
Outboard Power Supply: 18V / 500mA DC
Dimensions: 103 x 36 x 115mm (Incl. Sockets)
