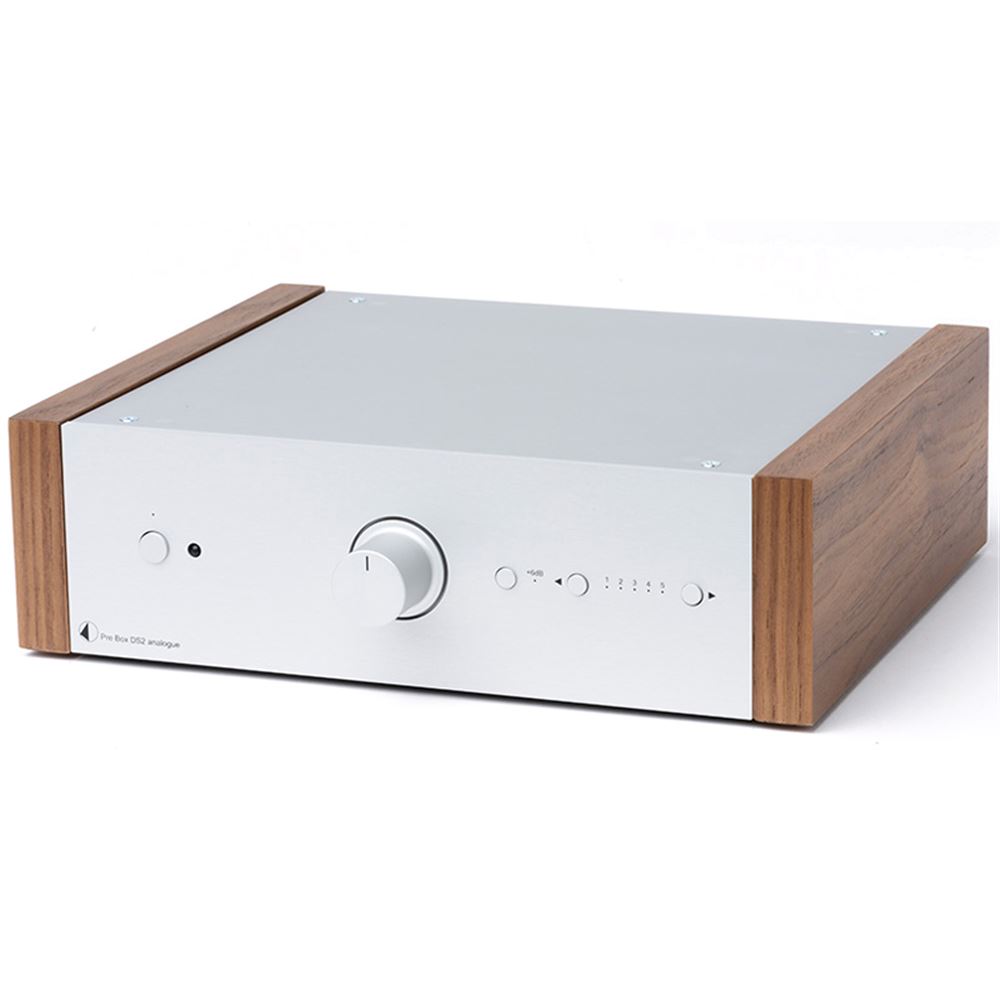

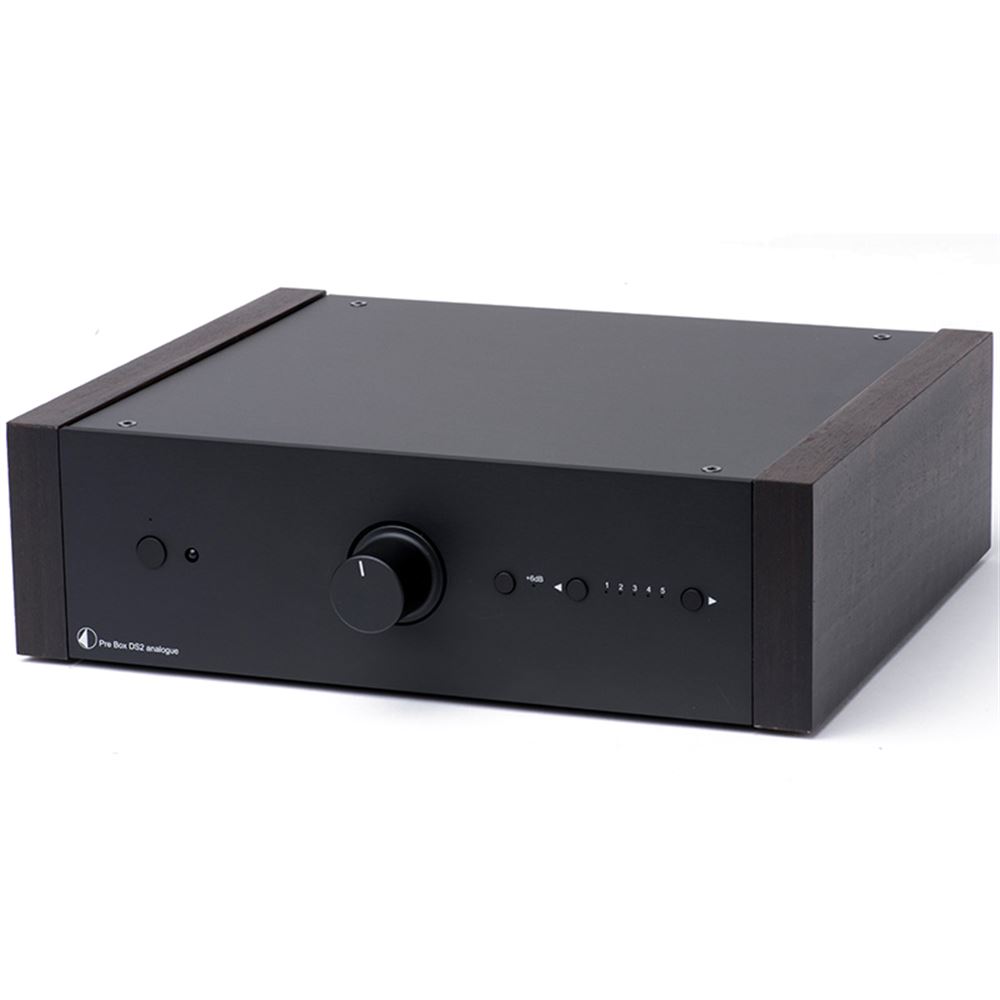

Project Pre Box DS2 Analogue Stereo PreAmplifier. Available with Online Finance and Free Delivery.

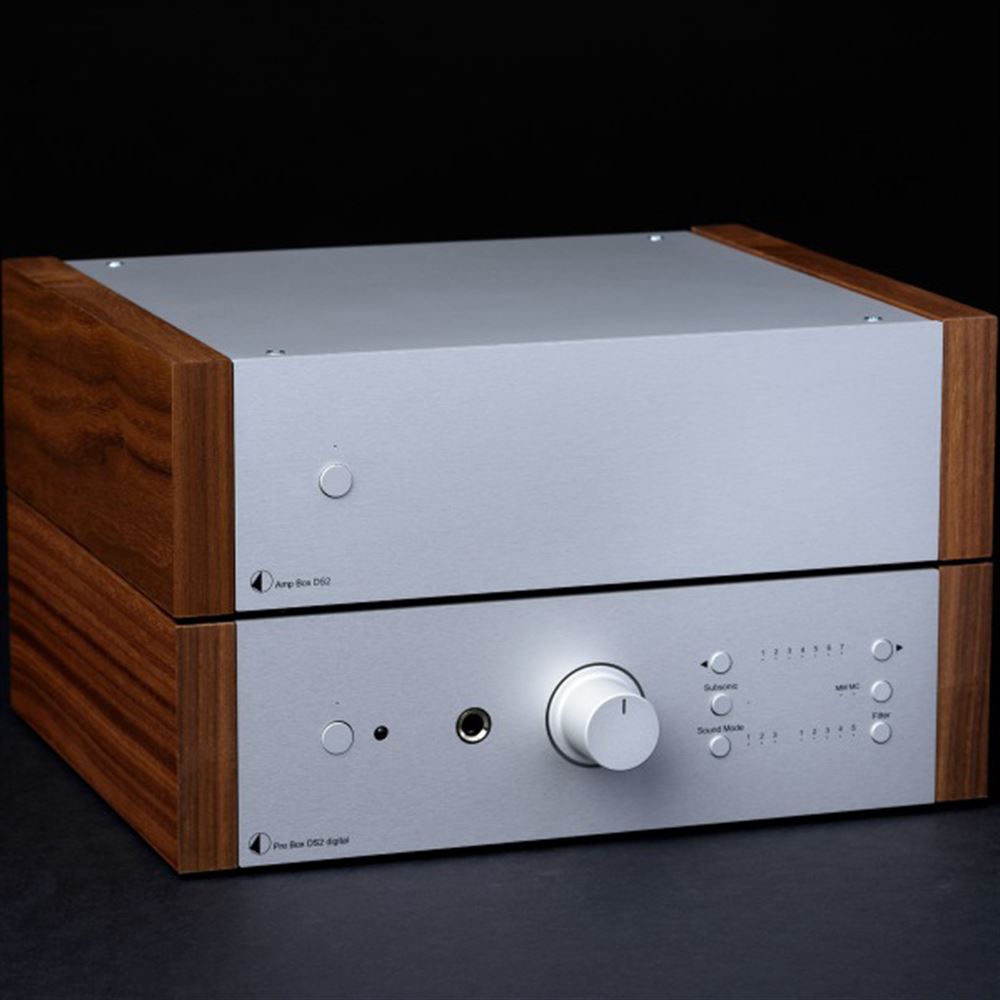

The heart of the Pre Box DS2 analogue is a pure Class-A output, an absolute High End solution. A new circuit design and a newly developed relais controled volume are responsible for the extremely low noise floor of Pre Box DS2 analogue. The inputs are also switched lossless via relais. Because of couple-capacitor-free signal paths the signal is as clean as it gets. An effort this high can not be found in any other preamplifier in this pricerange. The solid casing, an aluminium-metal sandwich construction, protects against vibrations and electromagnetic interferences. The result is an unbelievable dynamic and relaxed musical sound. In combination with Amp Box DS2 or two Amp Box DS2 Mono‘s you will reach new summits without breaking the bank. The 12V trigger function switches other components (power amplifiers, etc.) with Pre Box DS2 analogue on and off.
• Analogue RCA inputs
• Fixed line level output as well as variable output
• Mono subwoofer RCA output
• Trigger in/out
• RCA Line Level solid state output
• Ultra linear circuit
• Coupling-capacitor free signal path
• Ultra low noise floor
• Alu/metal sandwich casing in silver or black with wood side panels.
• IR remote control supplied
Technical data

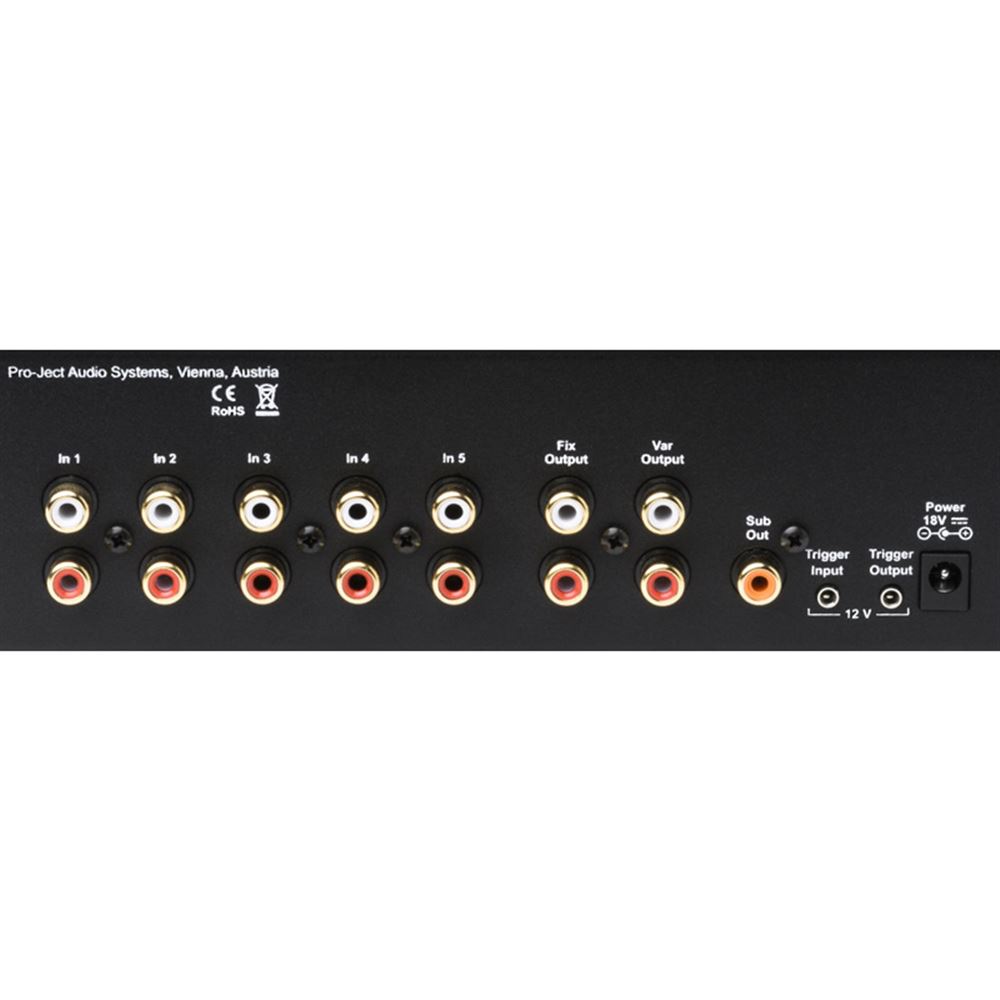

5 analogue Inputs 5x Line In (RCA)
3 analogue Outputs 1x Fix Line Out (RCA), 1x Variabler Line Out (RCA), 1x Sub out (mono)
Frequency response 20Hz - 20kHz (-0,3dB)
Output voltage 1 V bei 1 kHz
THD 0,00035%
Noise floor -90dB (A-weighted)
SNR 113dB (20 - 20.000 kHz)
Input impedance 10kOhm
Trigger 12V DC
Trigger in-/output 2-pol 2.5mm co-axial jack
Power consumption 120mA DC
Power supply 18V/1000mA DC (included)
Dimensions W x H x D 240 x 72 x 200mm
Weight 1780g (Wood) without powersupply
