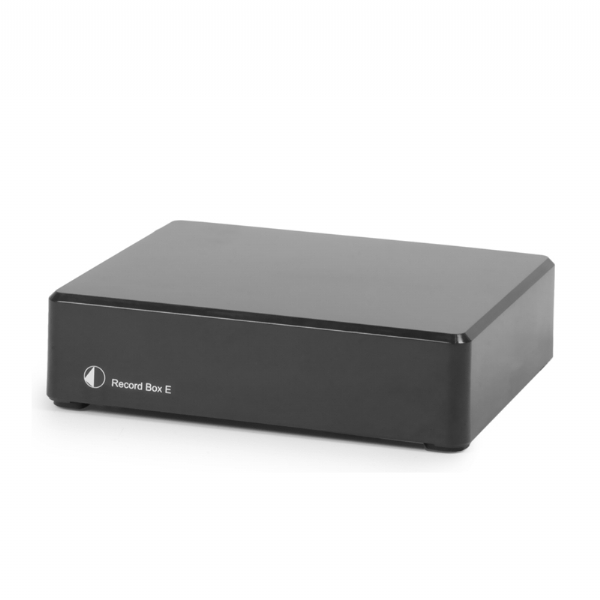

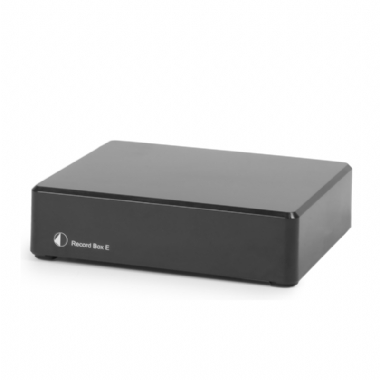

The ProJect Record Box E is a high quality pre-amplifier with built in USB to let you record your vinyl to your computer in high definition. We are also including a quality stereo RCA cable to connect to your HiFi (not normally included).

This introductory level phono stage is designed specifically to amplify your moving magnet or moving coil cartridge output to line level. The form factor of the unit is small and subtle, so it can be placed near the turntable/amp without being intrusive.

Key Features:

  • Amplification and RIAA equalisation for MM & MC
  • Design principle inspired by Dr. Sykora
  • Digitalisation of vinyl for recording direct to USB with suitable recording programs
  • Automatic recognition, no additional drivers needed
  • Runs on Windows® and Mac OS® operating systems
  • SMD circuitry with special low noise components
  • Internal metal shielding
  • Small size allows installation close to record player
  • Gold plated RCA connection sockets
  • Outboard power supply included
  • Black or White casing

Technical Data:

Input Impedance/Capacitance: MC: 100ohms/120pF (low output MC)
            MM: 47kohms/120pF (MM or high output MC)
Gain MM/MC: 40dB / 60dB
Output Voltage Typically: 300mV/1kHz at 3mV/1kHz (MM)  0.3mV/1kHz (MC)
Max Output: 9.5V (1kHz)
Noise Floor MM/MC: 94dB (A Weighted) / 75dB (A Weighted)
THD MM/MC: <0.01% / <0.05%
RIAA Equalisation Curve Accuracy: 20Hz - 20kHz / max. 0.5dB
A/D Converter: Burr Brown PCM2904 16-Bit Delta Sigma
Sampling Rates: 32, 44.1 and 48kHz
USB Output: 5 Pin Mini B Connector (USB Cable Supplied)
USB Signal: Digital Serial Data Protocol USB 1.1
Operating Systems: Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Mac OS
Input/Line Out: 1 Pair RCA/Cinch Sockets Each
Power Consumption: 18V/500mA DC
Outboard Power Supply: 100mA DC
Dimensions (W x H x D)(w/Plugs): 120 x 32 x 100(115)mm
Weight: 250g (Without Power Supply)


Pro-Ject Record Box E Phono PreAmp with USB inc. RCA Cable

Was £85.00
This product is now sold out and cannot be purchased.
