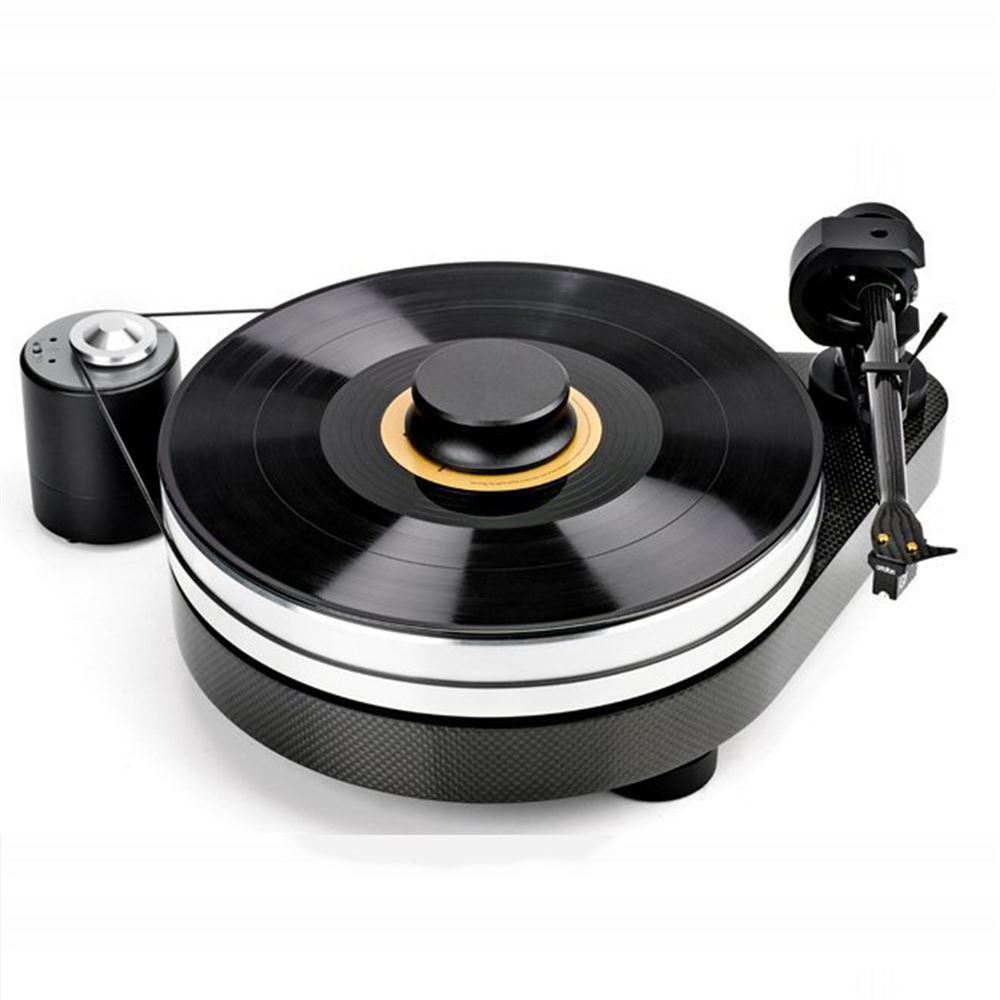

Project RPM 9 Carbon Turntable
Key Features:
The stylish plinth design has been chosen due to its improved resonance characteristics. The CNC-machined MDF structure is packed with resin-coated steel pellets to form a high-mass sandwich construction that provides a firm base for the turntable. The whole plinth is then put through a complex heat treatment process and coated in a carbon fibre surface to reduce resonance levels as low as possible. The main turntable structure is then effectively decoupled from its support thanks to the plinth’s magnetic feet.
The RPM 9 Carbon boasts a new 7.2kg polished aluminium platter, inspired by the award-winning Xtension 9 SuperPack record player. The platter is internally lined with Thermo-Plastic Elastomer (TPE) damping material and topped with vinyl. The whole platter sits on top of a high-quality inverted ceramic main bearing for a completely stable turntable speed with extra-low rumble.
As with all models in the RPM Carbon series, the RPM 9 Carbon uses a perimeter belt drive mechanism. The premium motor has an automatic speed change switch built into the top panel for easy changing between 33 and 45rpm. The motor also benefits from a built-in AC power generator PCB, to deliver a clean mains supply to the motor. The motor is completely decoupled from the main chassis and sits on top of a custom-designed steel base for improved stability.
The RPM 9 Carbon is supplied with the hugely popular 9CC Evolution Tonearm pre-installed. The 9” tonearm boasts a conical carbon fibre tube and inverted bearing design that allows for perfect tracking, even with demanding pick-up cartridges. For improved signal transmission, the tonearm is supplied with a 5-Pin to RCA Connect-IT CC cable.
The RPM 9 Carbon is supplied with a heavy-weight record puck, completing a true high-end package that delivers a lively, engaging, musical performance.
Optionals...
Clear Dust cover - Project Cover-It 2.1... £255
Base - Ground-It Deluxe 1... £389
Specifications
Nominal Speeds: 33/45 RPM
Motor Completely Decoupled: Yes
Effective Tonearm Length: 9" (230mm)
Effective Tonearm Mass: 8g
Overhang: 18mm
Tracking Force: 10 - 35mN
Speed Drift: ± 0.10%
Wow & Flutter: ± 0.10%
Signal to Noise: -75dB
Platter Weight / Diameter: 7.2kg / 300mm
Output Voltage: 15V / 800mA DC
Power Consumption: 13W Max. / <0.3W Standby
Dimensions (W x H x D): 440 x 180 x 325mm
Weight: 16.7kg
