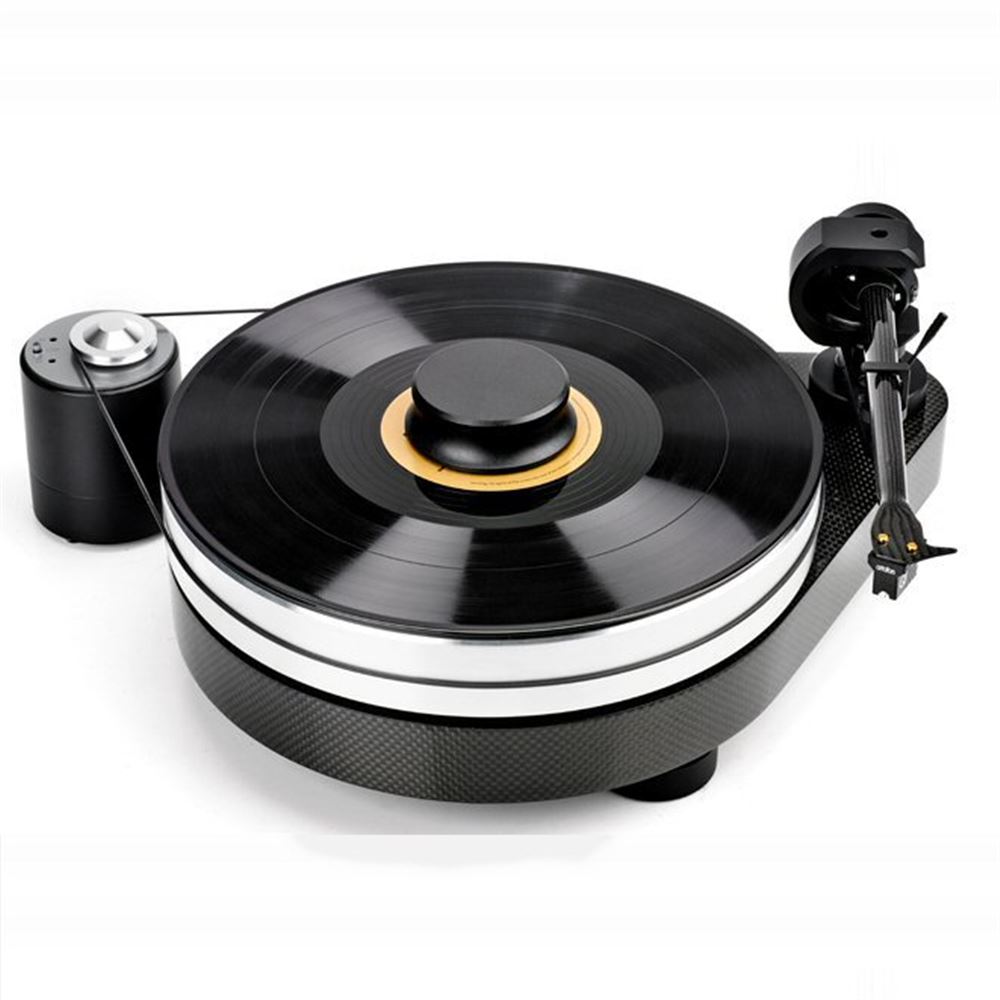

Project RPM 9 Carbon Turntable with Ortofon 2M Black LVB MM or Hana ML MC cartridge
Key Features:
Advanced sandwich construction of plinth with combination of MDF, carbon fibre and steel pellets
Plinth manufactured with thermo treatment
Mass loaded subchassis design with magnetic feet
Inverted main bearing with ceramic ball/plate
7.2kg acoustically inert aluminium platter with TPE damping and vinyl mat on the top
DC power supply with AC motor
Precise DC driven AC generator (Speed Box) built-in
Electronic speed control with 33/45 rpm switching
Outboard motor construction with massive steel base
Pre-mounted 9“ 9cc Evolution tonearm.

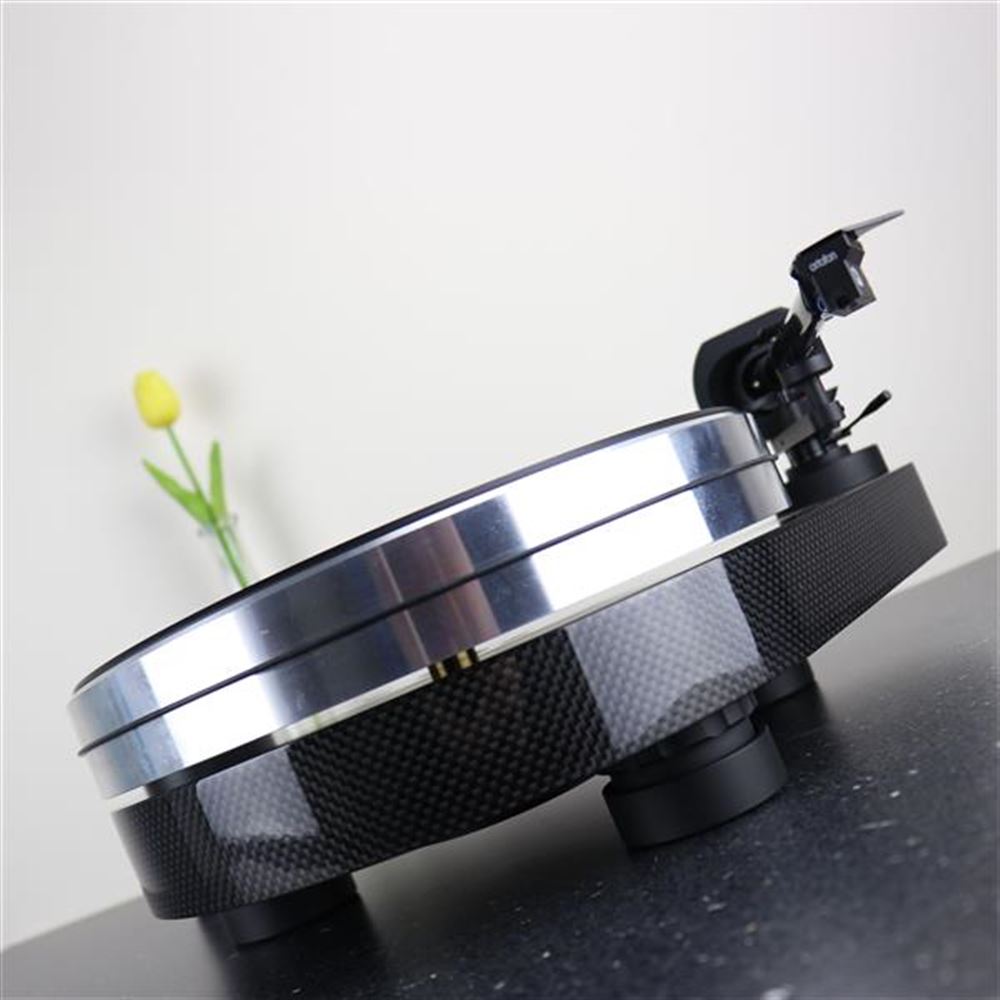

The stylish plinth design has been chosen due to its improved resonance characteristics. The CNC-machined MDF structure is packed with resin-coated steel pellets to form a high-mass sandwich construction that provides a firm base for the turntable. The whole plinth is then put through a complex heat treatment process and coated in a carbon fibre surface to reduce resonance levels as low as possible. The main turntable structure is then effectively decoupled from its support thanks to the plinth’s magnetic feet.
The RPM 9 Carbon boasts a new 7.2kg polished aluminium platter, inspired by the award-winning Xtension 9 SuperPack record player. The platter is internally lined with Thermo-Plastic Elastomer (TPE) damping material and topped with vinyl. The whole platter sits on top of a high-quality inverted ceramic main bearing for a completely stable turntable speed with extra-low rumble.
As with all models in the RPM Carbon series, the RPM 9 Carbon uses a perimeter belt drive mechanism. The premium motor has an automatic speed change switch built into the top panel for easy changing between 33 and 45rpm. The motor also benefits from a built-in AC power generator PCB, to deliver a clean mains supply to the motor. The motor is completely decoupled from the main chassis and sits on top of a custom-designed steel base for improved stability.
The RPM 9 Carbon is supplied with the hugely popular 9CC Evolution Tonearm pre-installed. The 9” tonearm boasts a conical carbon fibre tube and inverted bearing design that allows for perfect tracking, even with demanding pick-up cartridges. For improved signal transmission, the tonearm is supplied with a 5-Pin to RCA Connect-IT CC cable.
The RPM 9 Carbon is supplied with a heavy-weight record puck, completing a true high-end package that delivers a lively, engaging, musical performance.
Optionals...

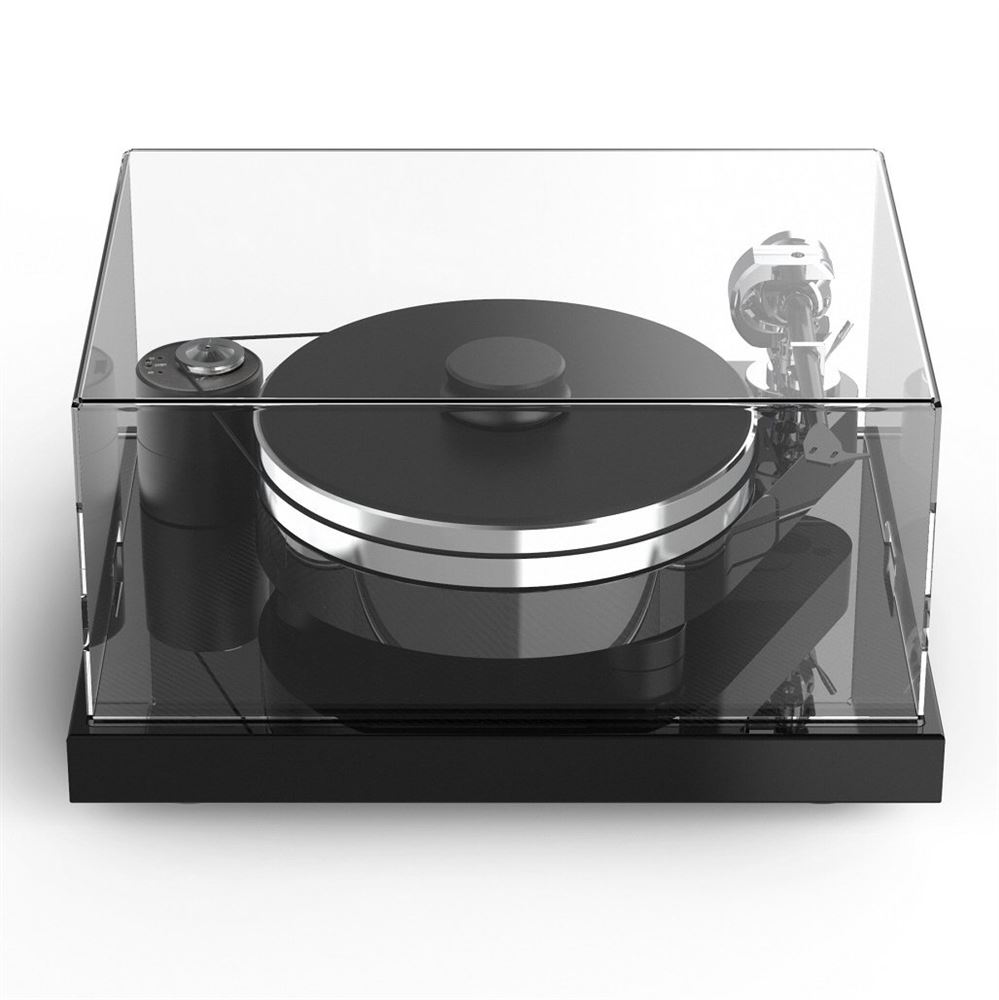

Clear Dust cover - Project Cover-It 2.1... £255
Base - Ground-It Deluxe 1... £389
Specifications
Nominal Speeds: 33/45 RPM
Motor Completely Decoupled: Yes
Effective Tonearm Length: 9" (230mm)
Effective Tonearm Mass: 8g
Overhang: 18mm
Tracking Force: 10 - 35mN
Speed Drift: ± 0.10%
Wow & Flutter: ± 0.10%
Signal to Noise: -75dB
Platter Weight / Diameter: 7.2kg / 300mm
Output Voltage: 15V / 800mA DC
Power Consumption: 13W Max. / <0.3W Standby
Dimensions (W x H x D): 440 x 180 x 325mm
Weight: 16.7kg

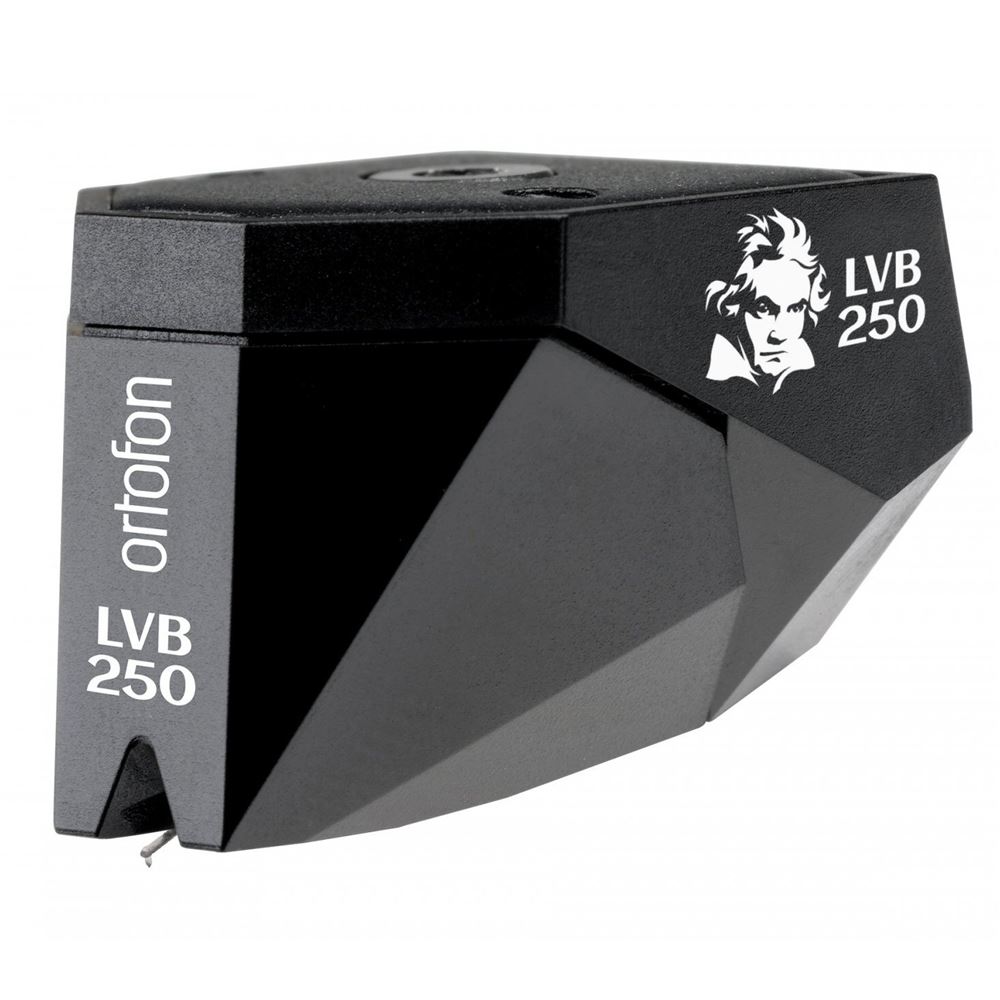

Ortofon 2M Black LVB 250 Features Moving Magnet (MM) cartridge system, Jet black colourway with new “LVB 250” logo, Nude Shibata diamond, mounted on a boron cantilever and a New rubber compound developed for the suspension system
Or

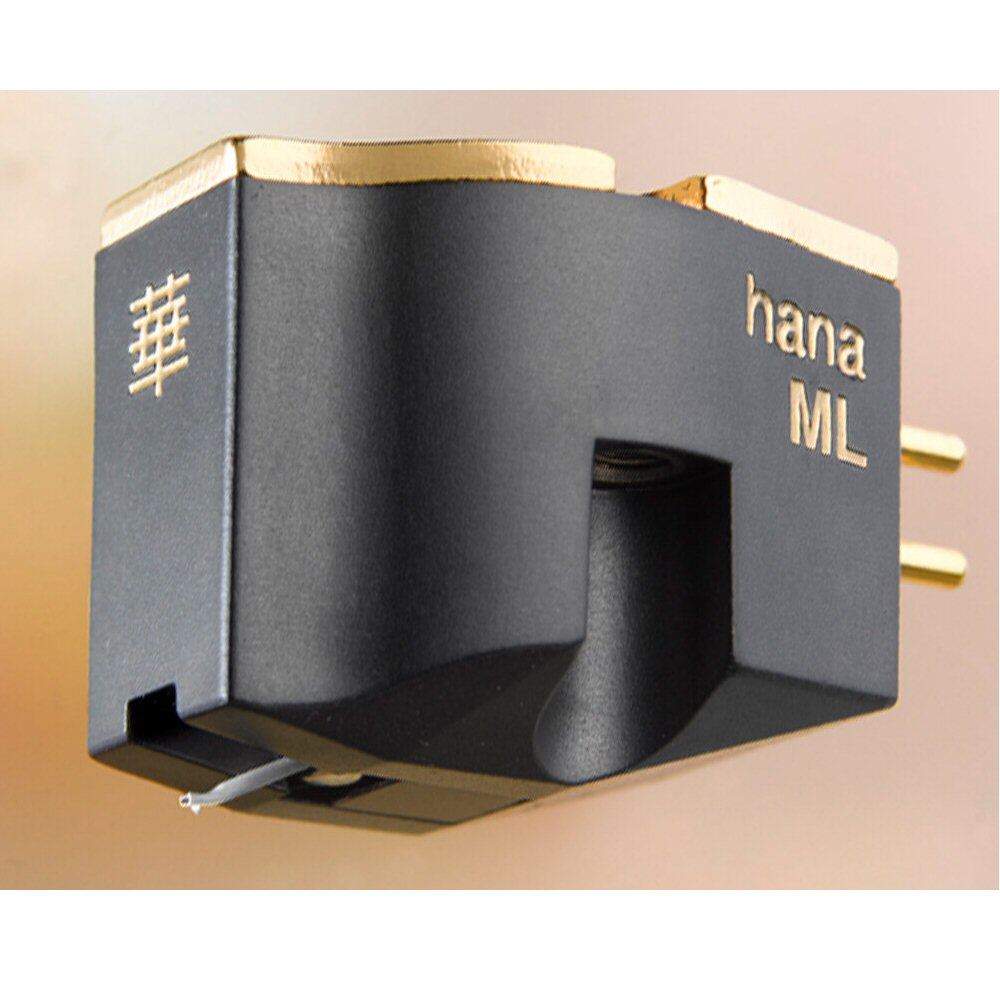

Hana ML Low Output Moving Coil Cartridge, the high-purity copper wound coil in the ML delivers just 0.4mV per channel. The impedance is 8ohms and it is recommended to load it with an impedance of greater than 100ohms
