The advanced ProJect DAC Box RS is a reference-class D/A converter for all kinds of digital stereo sound sources. It superbly acts as a superior USB audio interface for demanding computer audio, also features AES/EBU input and I²S interface for use with CD Box RS. For the engaged audiophile we provide full DSD capability (up to DSD128) over PCM. All inputs fully support 24/192kHz HD music data (optical inputs 96/24) in fully asynchronous mode.

Additionally DAC Box RS incorporates a pair of the best audio grade DAC chips, PCM 1792, which only can be found in expensive high-end designs. 2 different digital filter settings are selectable to meet your favourite sound preferences. Additionally we realized that its also depending on customers taste and type of music/recording, what technology for the output stage is preferable. More warm and relaxed sounding with Tubes or Solid State Class A with limitless details and dynamics. The DAC Box RS has both options to select!

The whole audio circuitry design is ultra low noise and ultra linear with very low output impedance to avoid any negative interference with cables or pre-amps. Due to its class-leading audio performance DAC Box RS is an ultimate high-end bargain!

Key Features:

Double top grade PCM-1792 D/A chip from Texas Instruments
9 Inputs: USB, AES-EBU, optical (Toslink), coax (S/PDIF)
DSD (up to DSD128) capability (DSD over PCM)
I²S interface for CD Box RS (sonic2data transfer technology) with additional clock synchronisation port (BNC)
2 selectable digital filter settings
Fully balanced analogue audio circuitry
Tube output stage & solid-state output stage (switchable)
Ultra linear & ultra low noise circuitry
IR remote control included
XLR & RCA line level output sockets
Full metal casing in silver or black
Technical Data:

D/A Converter:

Texas Instruments PCM-1792
8 x Oversampling Design
Sampling Rates:

32/44,1/48/88,2/96/176,2/192 kHz,
(Except Optical Up to 96kHz)
Selectable Filter Settings:

"Steep" and
"Optimum Phase"

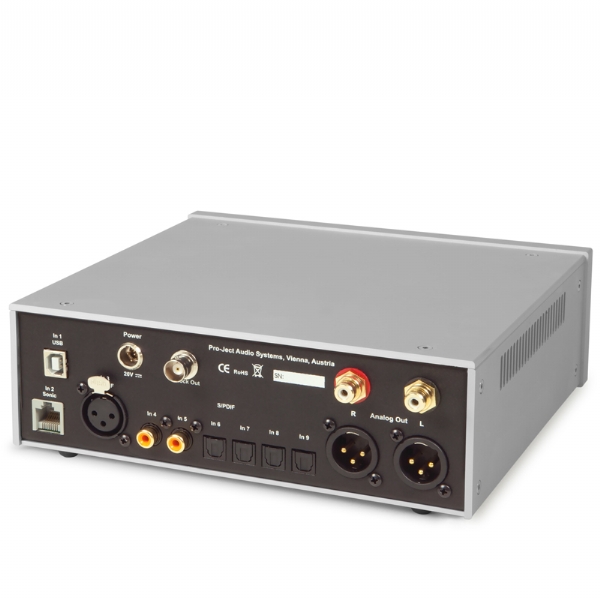

Digital Inputs:

2x Coax (S/PDIF)
4x Optical (Toslink®)
1x Type-B USB
1x I²S
Output Stages: 6922 Tube & Solid State (Switchable)
Analogue Output: 1x RCA/Cinch & XLR
THD Solid State Out: 0.005%
THD Tube Out: 0.25%
Signal To Noise: 100dB
Output Voltage: Max. 4/2V eff.
Power Consumption:

Standby: < 1 Watt
Maximum: 800/300mA
Power Supply: 20V / 3A DC
Dimensions (WxHxD):
206 x 72 x 200mm (220mm w/Sockets)
Weight: 1010g (Excl. PSU)

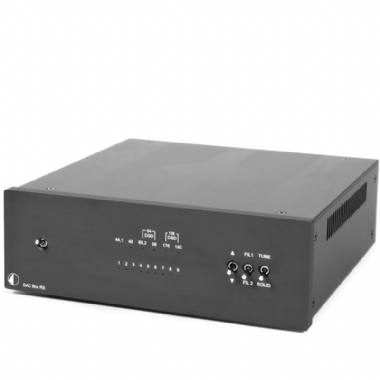

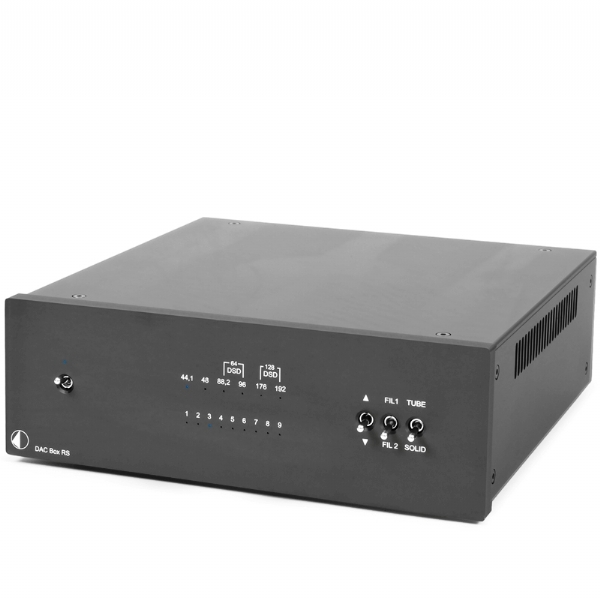

Pro-Ject DAC Box RS Hi Res D/A Converter
