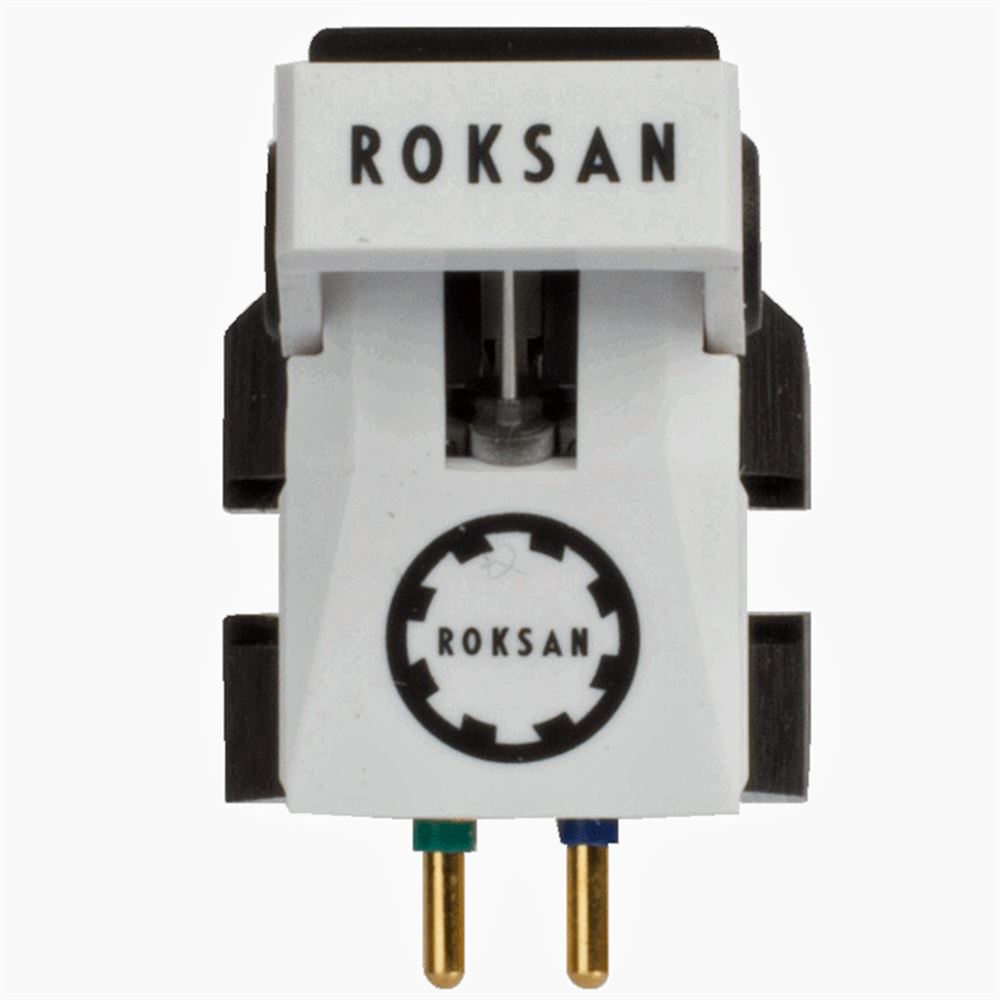

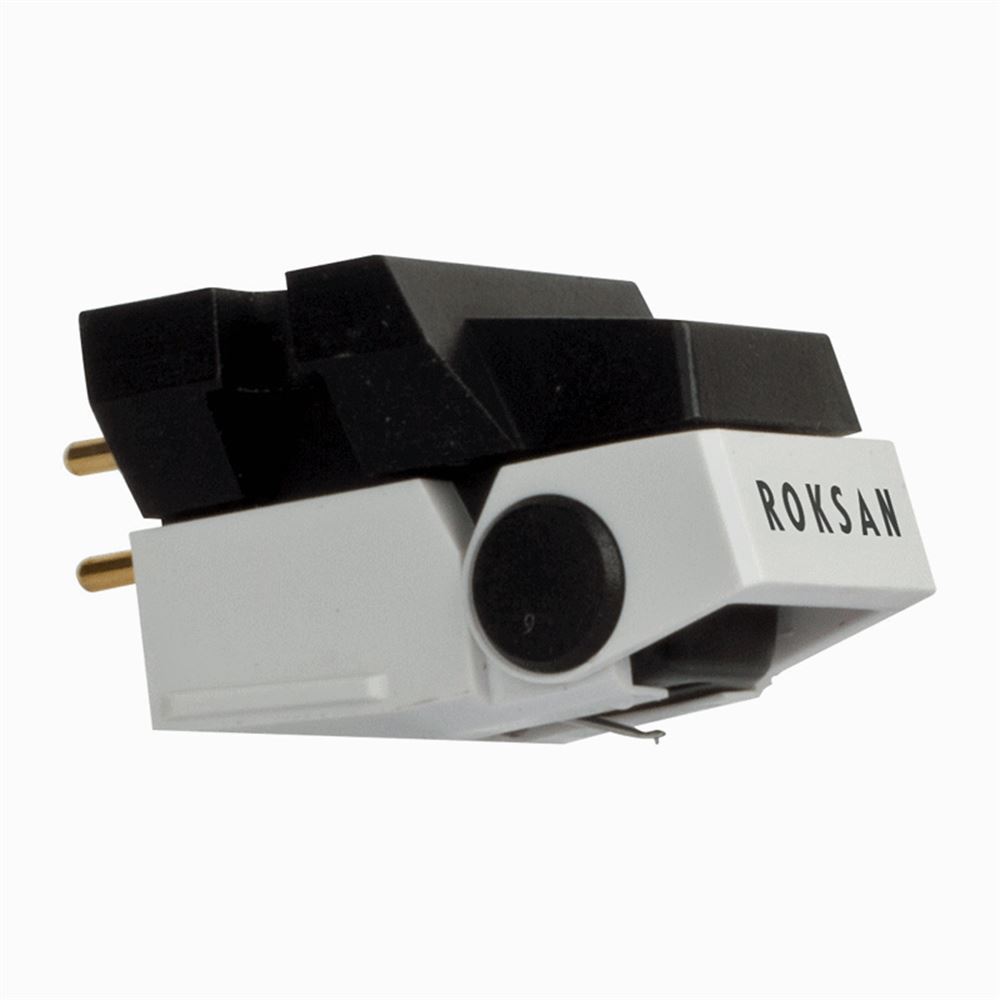

Roksan Corus2 Moving Magnet Cartridge
This is the second generation of the highly acclaimed Roksan Corus cartridge, introducing ground-breaking design changes and improvements throughout. It’s been developed to provide a wider appeal to audiophiles, whilst elevating performance to a new level.
The design has changed significantly delivering the same kind of performance expected from a more expensive cartridge.
The Corus2 can be combined with the NIMA tonearm on our Radius 7 and Xerxes 20 Plus turntables to complete a high performance record playing source.
An all new ‘VM’ magnet arrangement using one small magnet for each channel rather than a larger heavier single magnet.
The magnets are separated by a shielding plate to reduce crosstalk and increase channel separation over its operating band.
The body is aluminium for low resonance and electrical shielding. A nude Shibata fine line stylus on a tapered aluminium tube ensures excellent detail retrieval and tracking ability. These design features deliver a dynamic, transparent and musical performance.
Mechanical and Visual Design
A new visual identity with a ‘less is more’ approach has been adopted right through the design process to ensure the best possible component quality selection. The black aluminum cartridge body and white stylus assembly provides an exclusive look to the product with an integral fold down stylus guard for convenience and peace of mind.
New Moving Magnet - With twin magnets in VM arrangement for improved channel separation.
Shibata Stylus Profile - Incredible detail retrieval and projection across its frequency range.
Rigid Aluminum Body - Low resonance and high shielding.
Stylus Guard - Integral fold-down stylus guard for protection and peace of mind.
Type - VM dual moving magnet
Frequency response - 20 to 27,000 Hz
Output voltage - 3.5mV (1 kHz, 5 cm/sec.)
Channel separation - 25 dB (1 kHz)
Output balance - <1.5 dB (1 kHz)
Tracking force - 1.8 to 2.2 g (2.0 g standard)
Coil impedance - 3.2 k ohms (1 kHz)
DC resistance - 800 ohms
Recommended load impedance - 47 k ohms
Recommended load capacitance - 100 to 200 pF
Coil inductance - 490 mH (1 kHz)
Static compliance - 40 × 10-6 cm/dyne
Dynamic compliance - 10 × 10-6 cm/dyne (100 Hz)
Stylus - Nude Shibata
Stylus curvature radius - 2.7 × 0.26 mil
Cartridge body - Aluminium
Cantilever - Aluminium tapered pipe
Vertical tracking angle - 23°
Dimensions (H × W × D) - 17.3 × 17.0 × 28.2 mm
Type - 8.0 g
