Ruark R810 MiE (Made in England) High-Fidelity Radiogram

An Introduction

“ We’ve long envisioned bringing some production back to the UK. While volume production isn’t viable, our MiE project focuses on unmatched quality through hands-on craftsmanship, free from time constraints, making MiE truly special.”    Alan O’Rourke

In October 2021, we released R5 MiE, the first model in our Made in England project, a proud milestone uniting us with highly skilled craftspeople to deliver an exceptional level of finish to key products in our range. Unfortunately, Covid and subsequent component shortages forced us to pause the project, but now, as part of our 40th Anniversary celebration, we are delighted to relaunch this project with the unveiling of R810 MiE.

Craftsmanship personified

R810 MiE, showcases the centuries-old art of marquetry. Our patterns are designed to reflect modern life while honouring traditional artisan techniques. Marquetry demands precision and patience. Selected veneers are meticulously cut and arranged before being bonded to the cabinet. Planning is vital to ensure perfect alignment and fit of all the intricate pieces.

A finish created by time

Once the marquetry is bonded, multiple layers of lacquer are applied to both the cabinet and grille, with hand-sanding between coats, creating a lustrous finish that only time can achieve, taking craftsmanship to a new level.

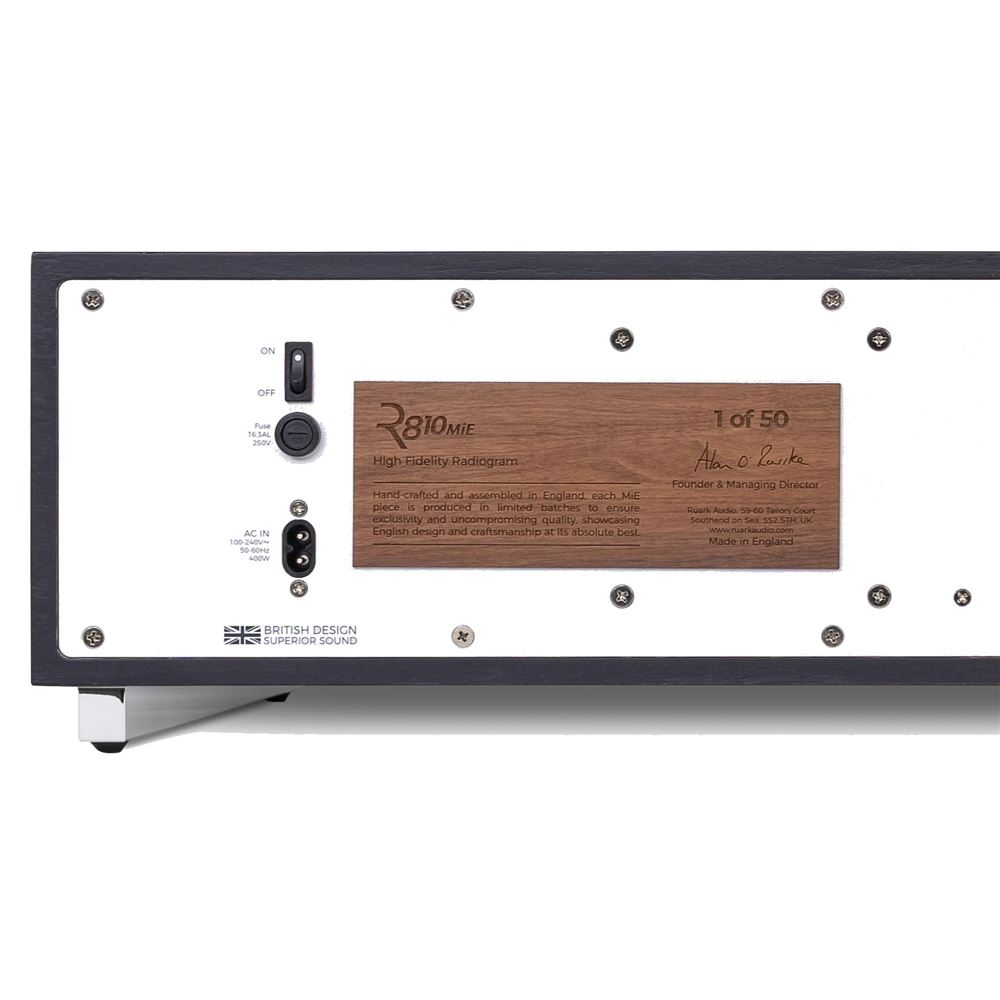

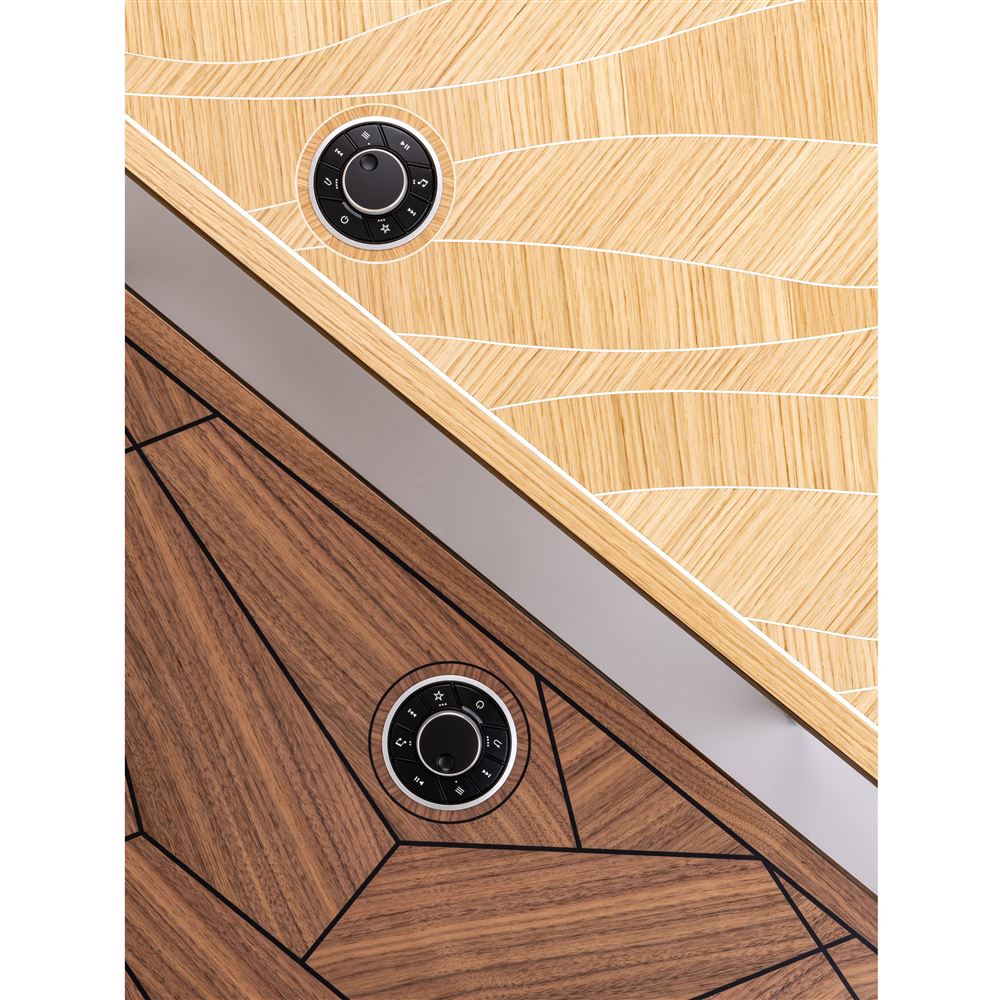

For this first release, we present two exquisite finishes: Penta-Chord Walnut and Leaf-Line Oak. Each piece is unique - like a fingerprint – and to further enhance their exclusivity only 50 pieces of each will ever be produced, each bearing an engraved plaque as proof of authenticity.

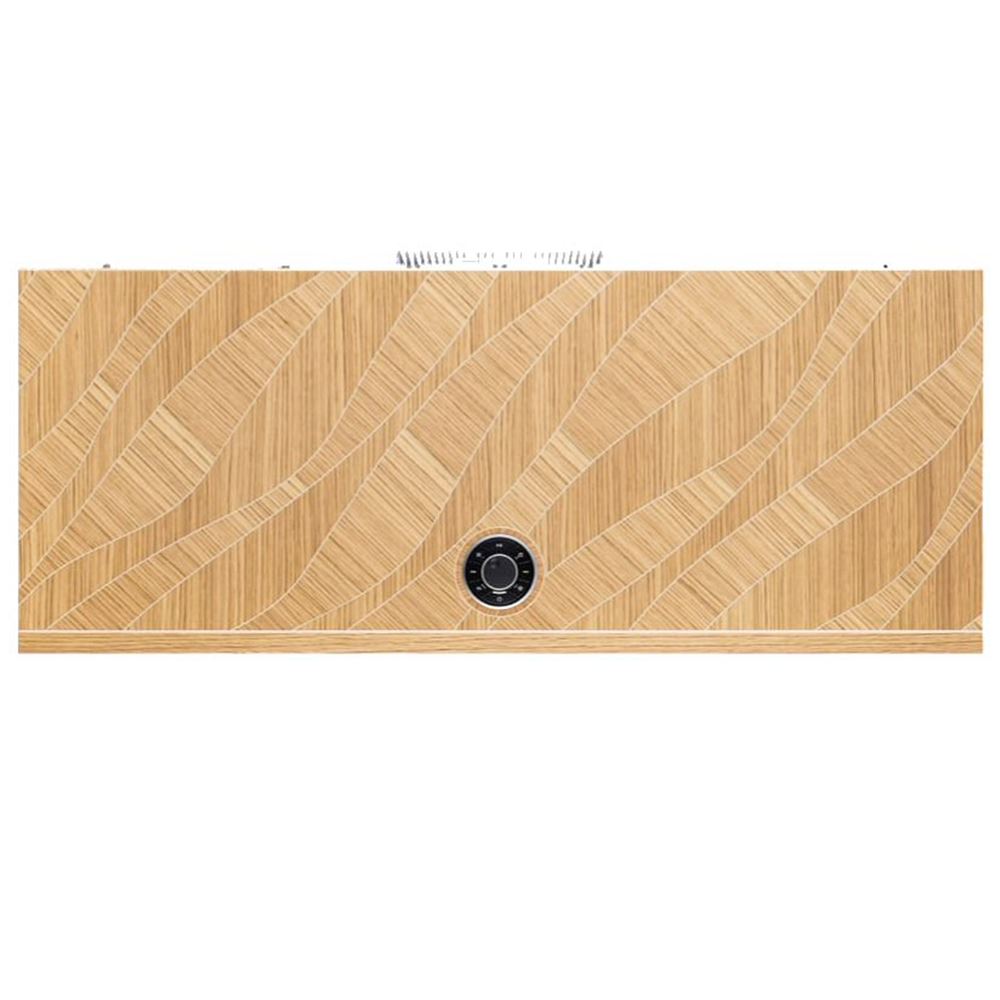

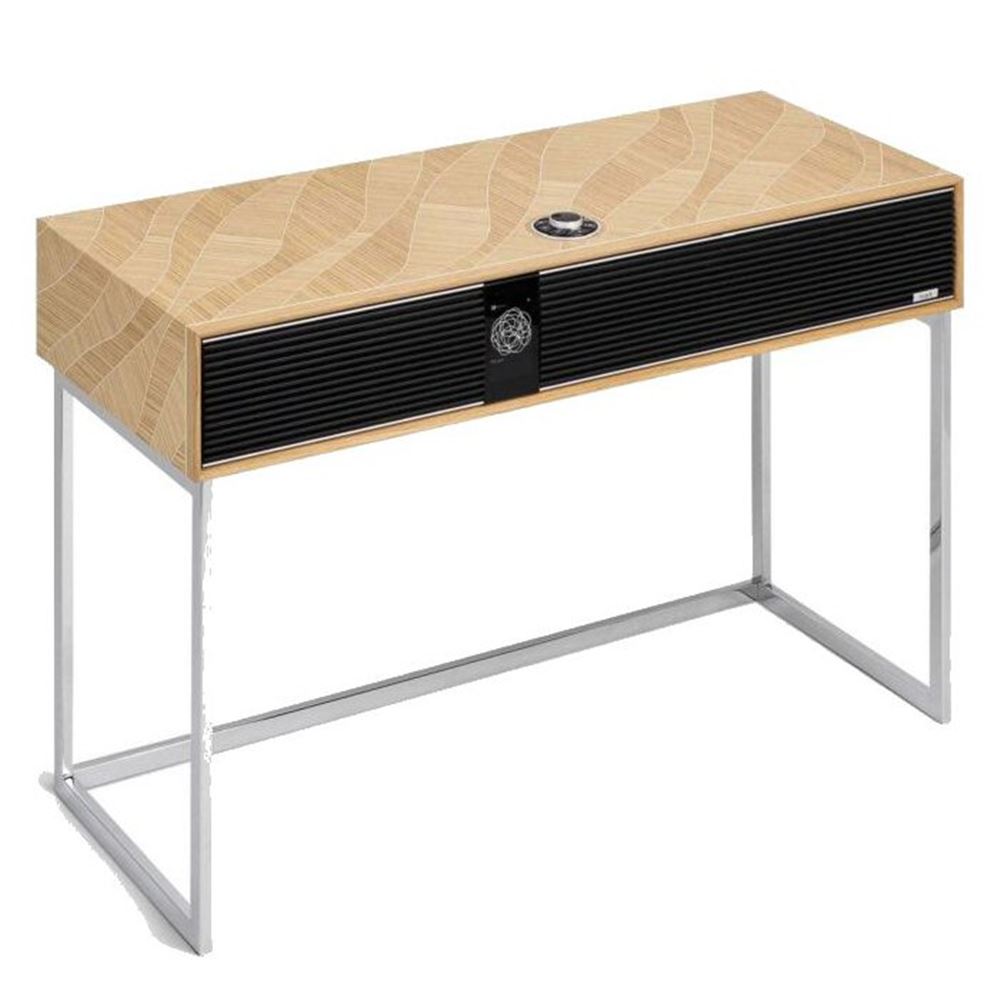

Leaf-Line Oak with Sycamore detailing

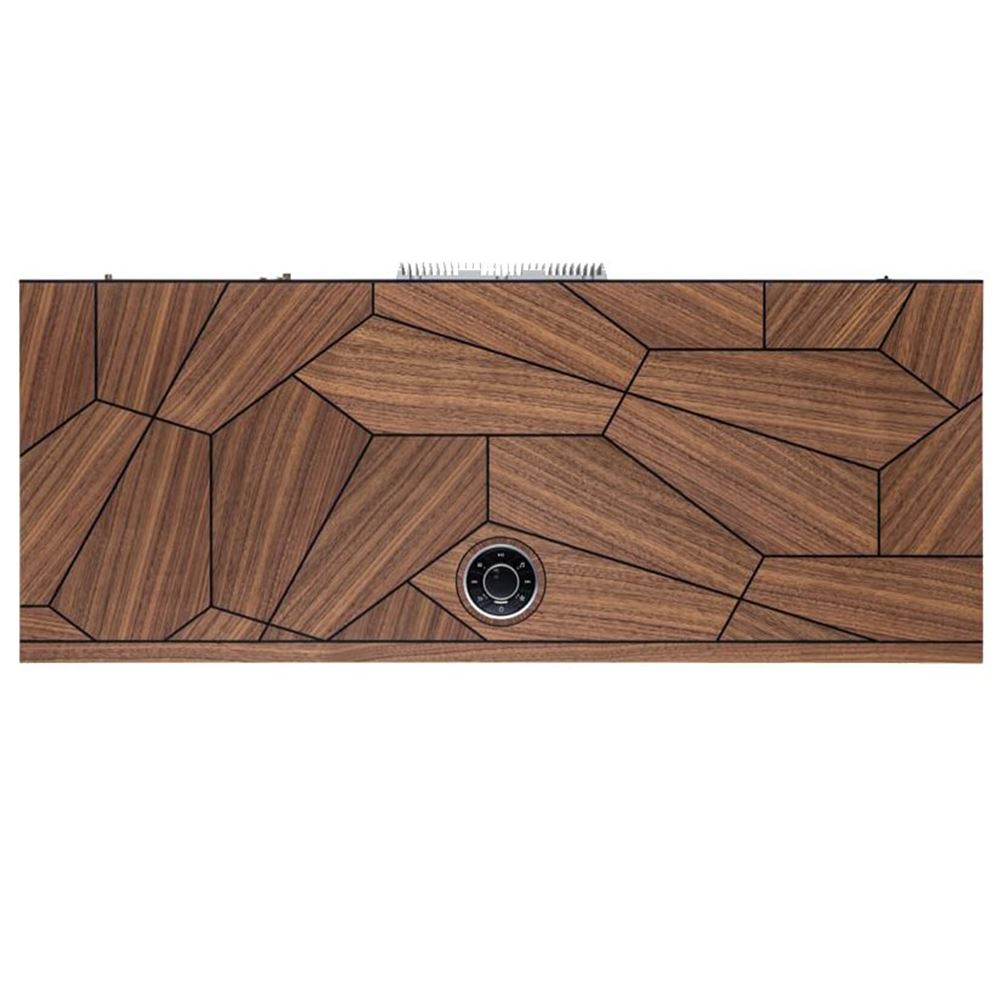

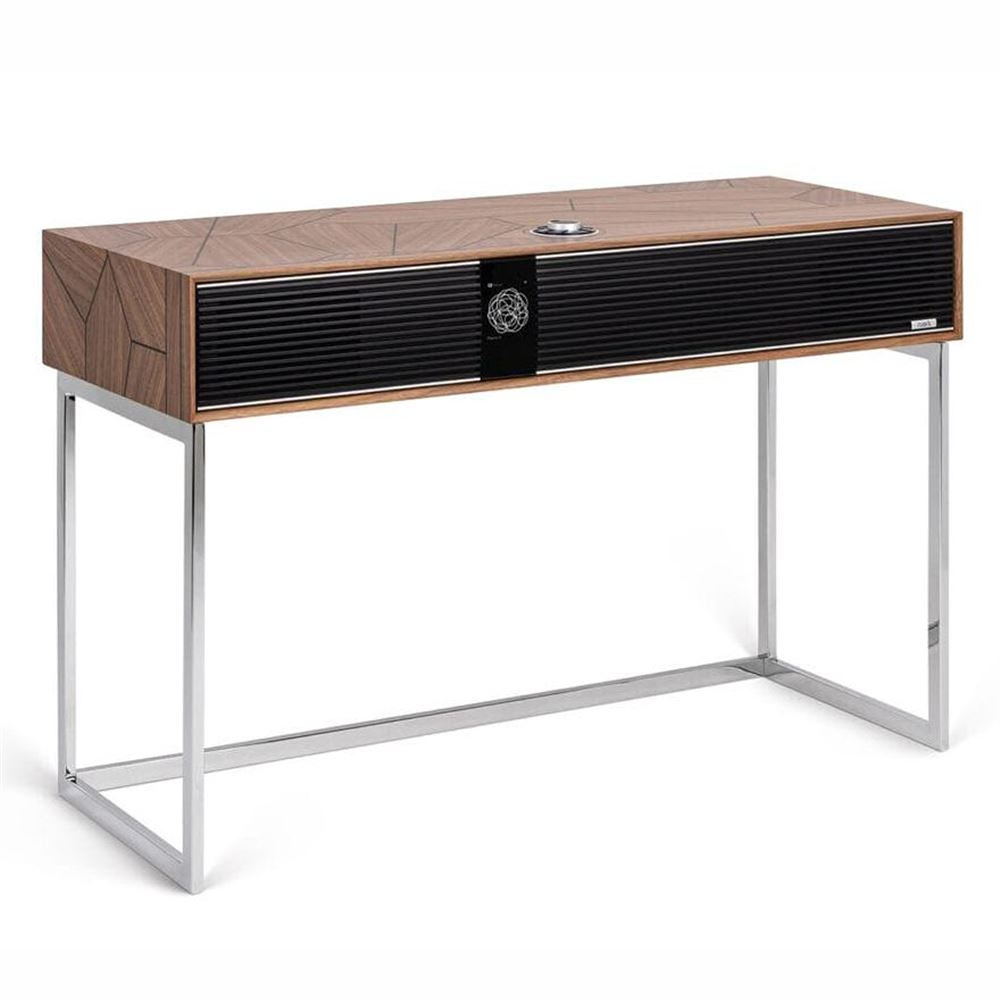

Penta-Chord Walnut with Ebony detailing

Built by hand
The cabinet and grille components are crafted exclusively for us by Storm Furniture, an artisan maker based in Norfolk and proud member of the Guild of Master Craftsmen. Their bespoke work graces fine properties nationwide. After manufacture, each element is carefully transported to our Southend HQ where each R810 MiE is individually assembled by hand and signed-off before testing, and packing.

Sound that elevates you
We’ve made R810 MiE for people who want unmatched exclusivity and the very best in design, but sound-wise R810 MiE is equally beautiful, opening up a world of musical discovery. Whether you want to stream music over the internet, connect with your TV or enjoy your CD or Vinyl collection, R810 offers it all, but most importantly it provides sound quality that you, your family and friends will enjoy endlessly.

Specifications
Audio
Frequency response (typical in-room) - 30Hz - 22kHz
Speaker units
2 × Ruark 28mm silk dome tweeters,
2 × Ruark 100mm NS+ woofers,
1 × Ruark 200mm long-throw subwoofer
Amplifier - Fully active Class AB (180W Total)
Enhancements - Adjustable bass, treble and subwoofer (-6dB to +6dB),
Switchable Stereo+
Cabinet type - Twin bass reflex with infinite baffle subwoofer
Digital to Analogue Converter (DAC) - Burr-Brown 32-bit 192kHz
Analogue to Digital Converter (ADC) - Burr-Brown 32-bit 192kHz
Features
Adjustable input levels - Line in, phono, HDMI and optical
Alarms - 8 × daily, weekdays, weekends and custom (coming via an over-the-air update early in 2026)
Auto standby
Adjustable power saving mode
Daylight Saving Time (DST) - Automatic
Display - High-contrast 4" colour TFT with auto dimming
Presets - 20 global presets
Remote control - Rechargeable wireless remote
Snooze function - Yes
Software updates - Over-the-air, LAN and USB
User interface languages - EN, DA, DE, ES, EL, FR, IT, JP, KO, NL, NO, PL, TR, ZH
Connectivity
Aerial connector - 75Ω F-type connector
Apple AirPlay 2 - Yes
Google Cast - Yes
Bluetooth (version & codecs) - V5.1, aptX HD, SBC, AAC
Bluetooth headphone support - Yes (coming via an over-the-air update early in 2026)
Built-in music streaming services - Spotify Connect, TIDAL Connect and Qobuz Connect
CD player - CD playback via optional R-CD100 CD Player
UPnP™ DLNA media server compatible - Yes
Ethernet - RJ45 connector 10/100 Mbps
HDMI input - ARC and eARC
Line in - Stereo RCA input (up to 2.3Vrms)
Turntable input - RCA input with MM phono stage with adjustable gain (2-7mv)
Multiroom capable - Yes with Apple AirPlay 2 and Google Cast
Optical input - Up to 24-bit 96kHz PCM
Radio - Internet Radio, DAB/DAB+, FM with RDS (Multi region 76.0-108MHz)
USB-C port - USB 2.0, FAT, FAT32, exFAT, NTFS, ext2/3/4, 5V, 5W max, charging and multi-format audio file playback
Wi-Fi - 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Supported audio formats - MP3 up to 48kHz 320kbps,
                                           AAC up to 96kHz 320kbps,
                                           FLAC, AIFF, ALAC and WAV up to 32-bit 192kHz
General specifications
Finishes - Leaf-Line Oak with Sycamore detailing and Ebonised Wood grille,
                Penta-Chord Walnut with Ebony detailing and Ebonised Wood grille
Product dimensions (cabinet) - H150 × W1000 × D400mm
Product dimensions (max – inc. feet, controls and cables etc.) - H660 × W1000 × D435mm (on chrome stand)
Product weight - 27kg
Product power input - 100-240VAC 50-60Hz 4.0A
Power inlet connector - IEC C8 cloverleaf AC socket
Power consumption - 2W standby 25W typical
In the box
R810 MiE
2m AC power cable (IEC C7 figure of 8)
Quick Start Guide
Telescopic aerial and spanner
Rechargeable wireless remote
Polished chrome frame stand
Polished chrome bar legs
Carton
Carton dimensions - H580 × W1130 × D370mm
Packaged weight - 41kg (including chrome stand)
