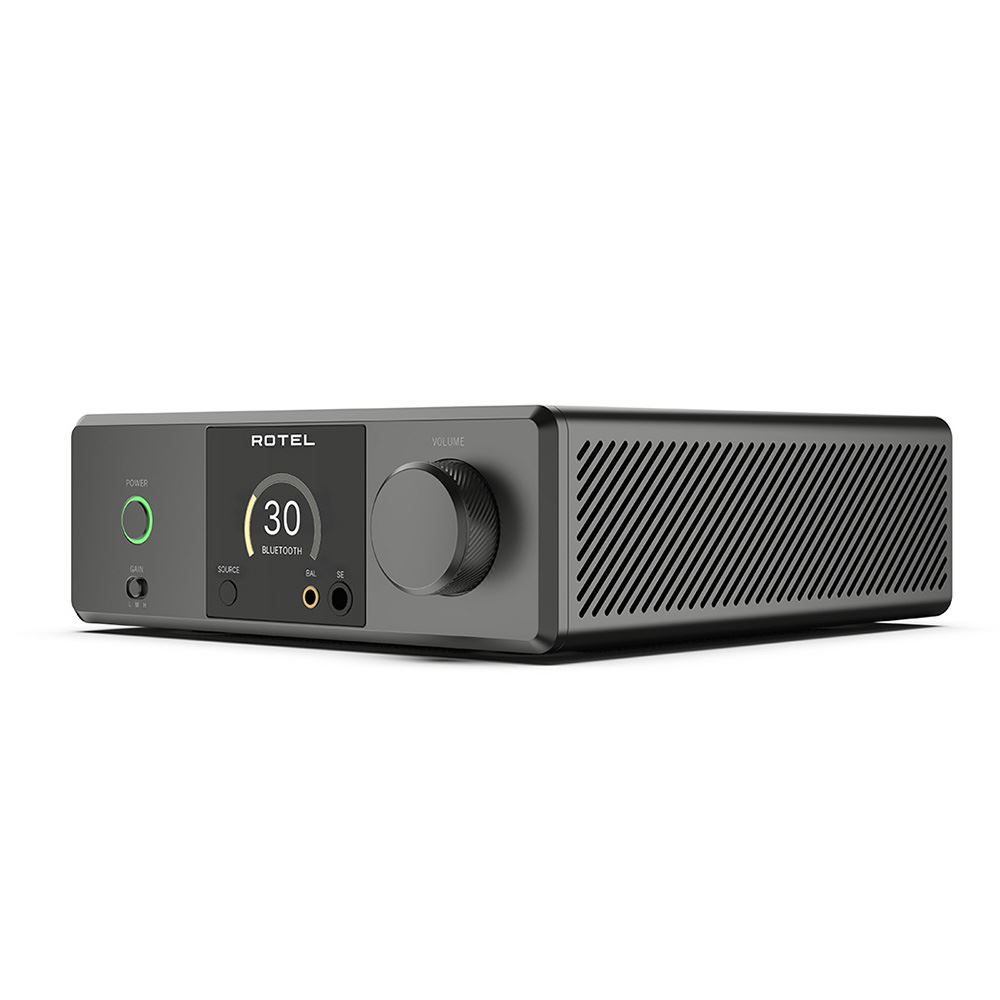

Rotel DX-3 Headphone and DAC
The Rotel DX-3 is a stylish headphone amplifier and DAC designed for personal audio. With support for Bluetooth, USB, and legacy inputs, it delivers powerful, detailed sound whether you're using headphones or powered speakers.

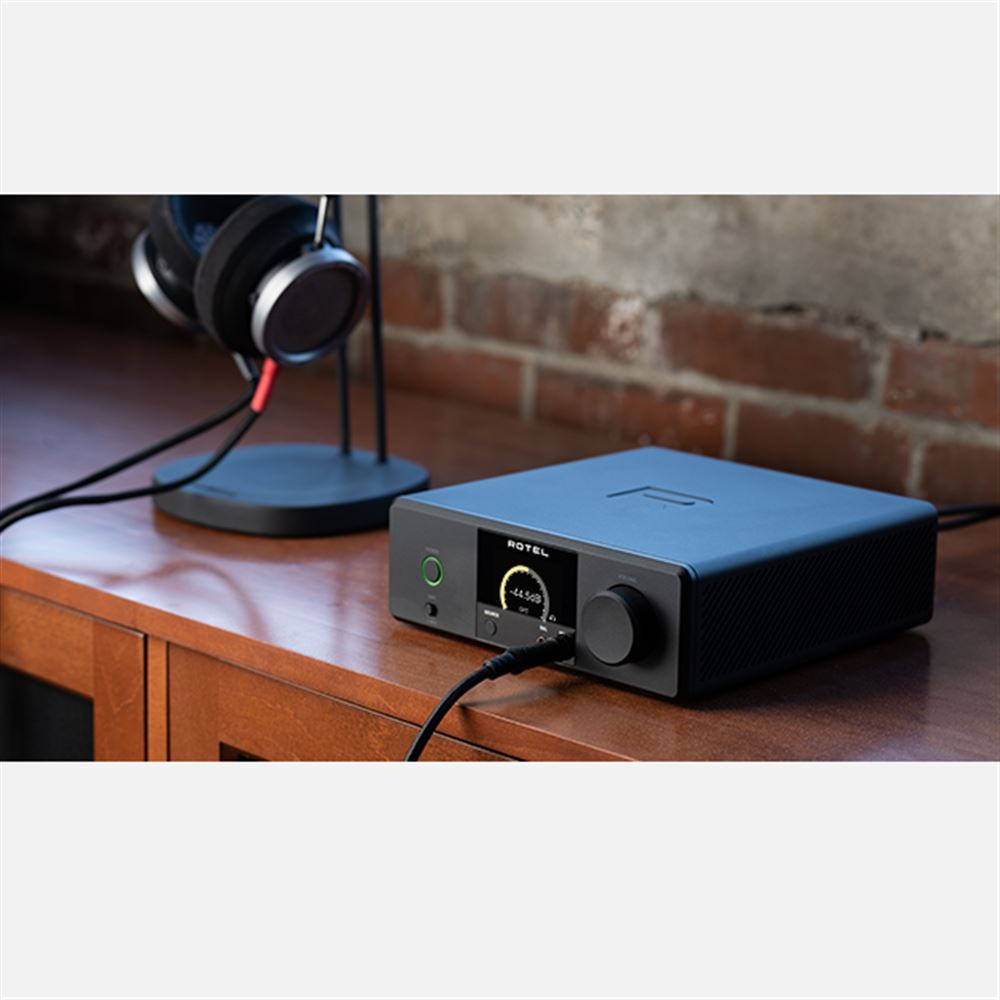

Designed for Personal Listening

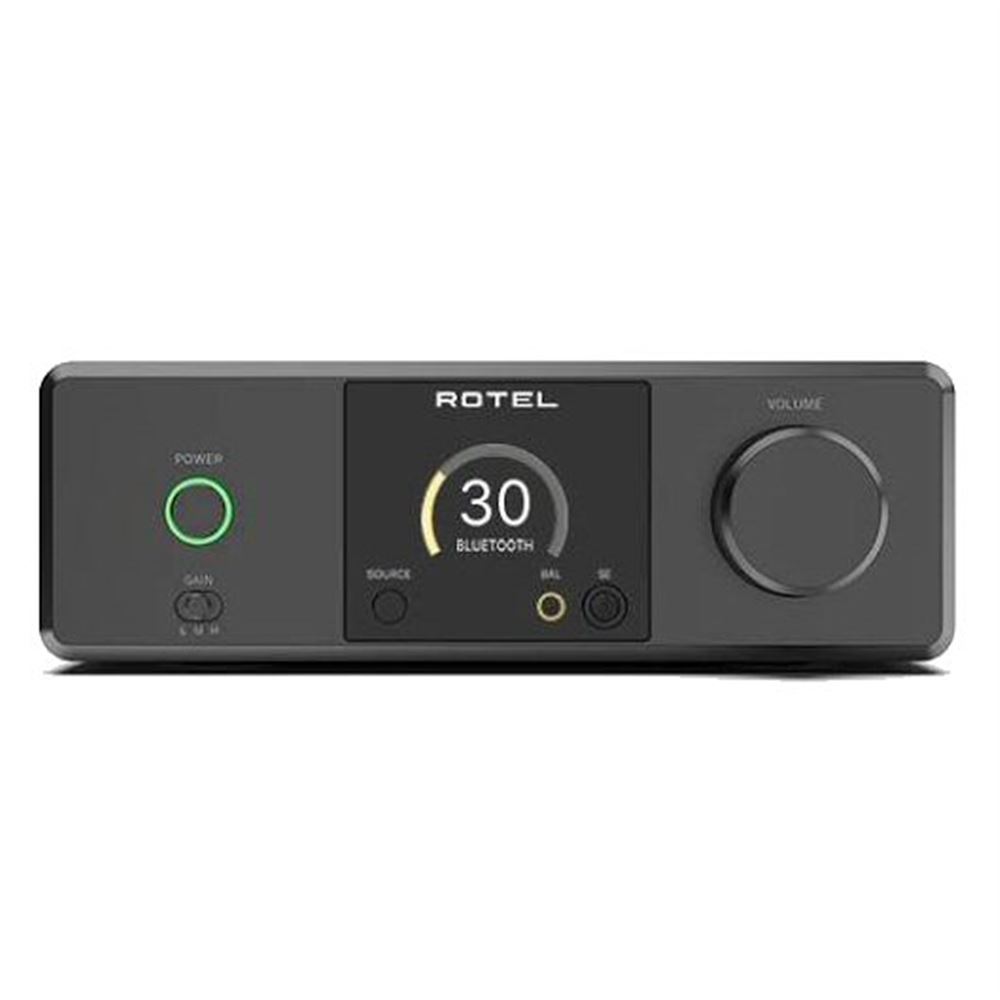

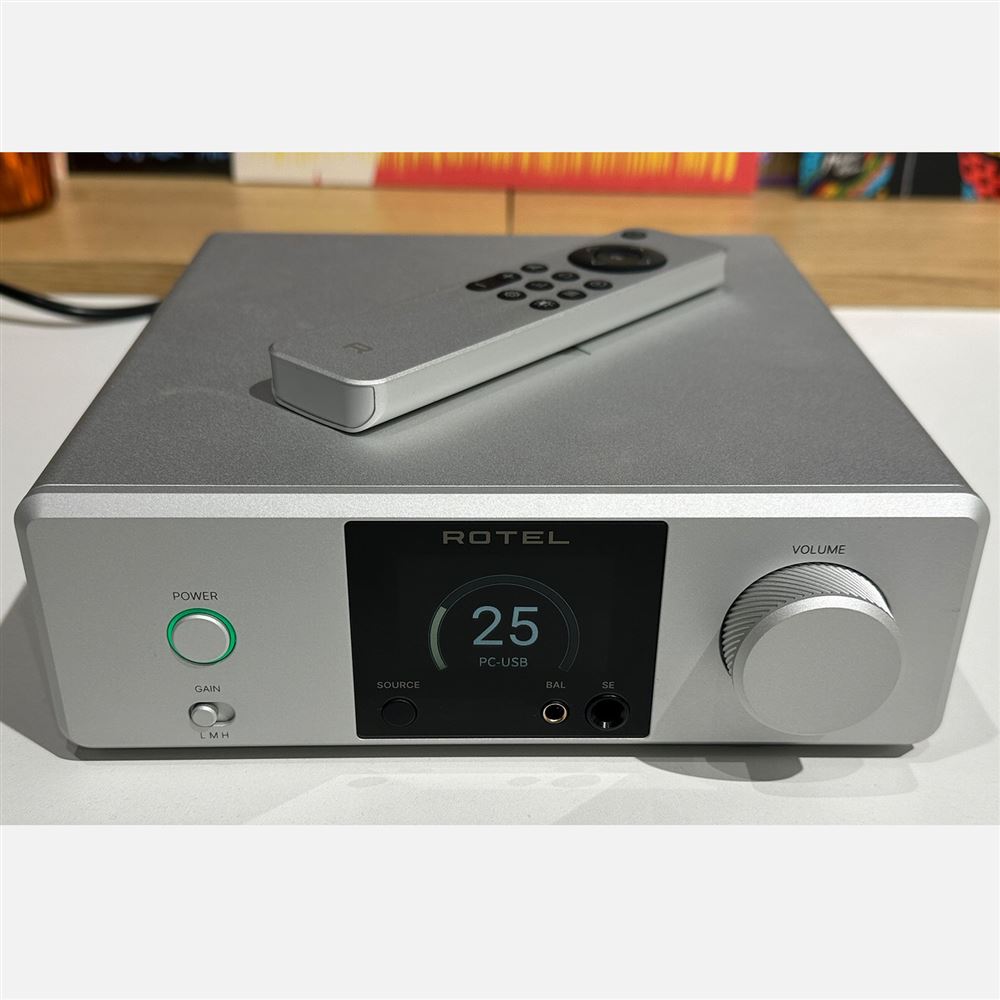

The DX-3 combines sleek industrial design with intuitive controls, making it a perfect fit for any desktop or hi-fi setup. Its full-colour display and aluminium remote offer easy navigation, while the compact form factor suits both private listening and speaker-based setups.
Powerful and Versatile Performance
Whether you're using balanced or single-ended headphones, or connecting to active speakers, the DX-3 delivers clear, dynamic sound. Powered by Rotel’s custom toroidal transformer, it ensures low noise and consistent performance across all listening scenarios.
Connect Your Favourite Devices

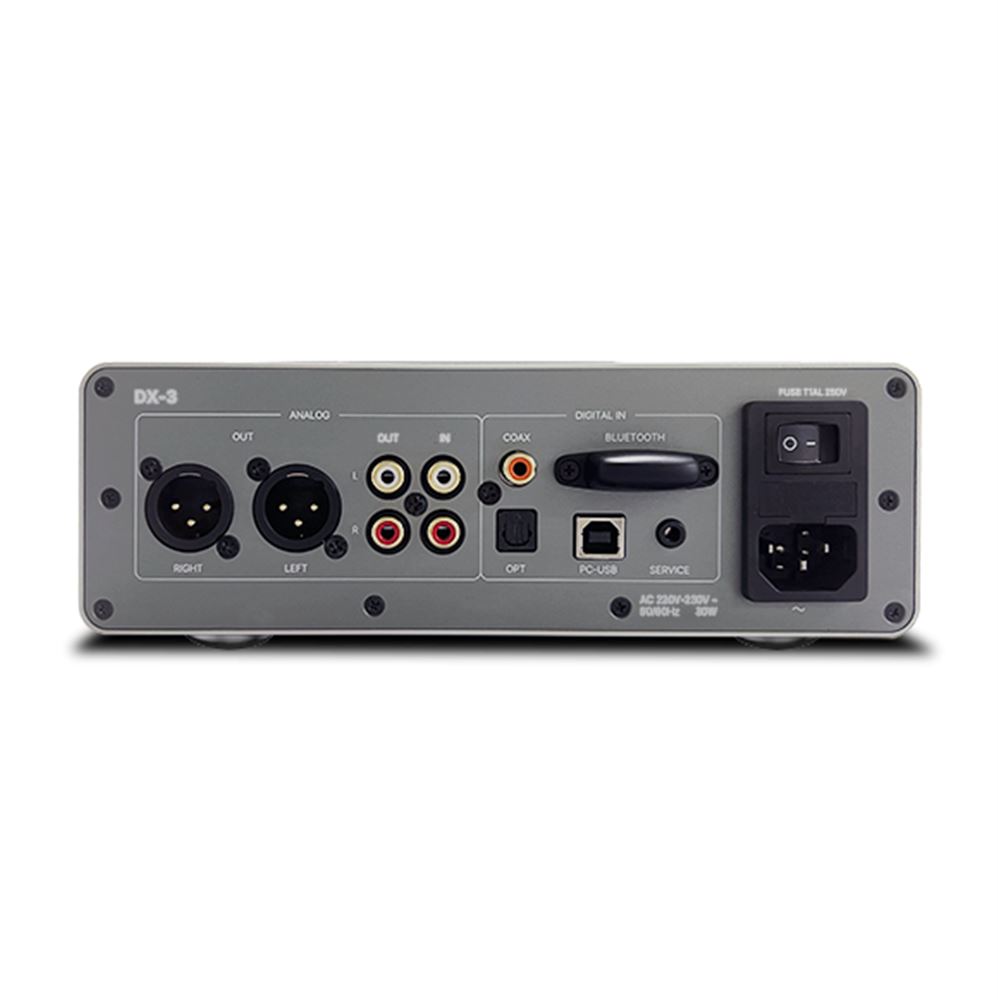

The DX-3 supports a wide range of inputs including PC-USB (up to 32-bit/384kHz), Coaxial and Optical (up to 24-bit/192kHz), aptX™ HD Bluetooth, and AUX RCA for legacy gear. It even plays MP3, WMA, and AAC files from USB drives, making it easy to enjoy music from any source.
Premium Sound with Everyday Usability
At the heart of the DX-3 is a high-performance ESS Sabre ES9028PRO DAC, delivering rich, detailed audio with precision. Whether you're streaming wirelessly or listening through headphones, the DX-3 offers a refined experience with the convenience of plug-and-play simplicity.
Specifications
Roon Support - Roon Tested
Amplifier Class - A
RCA Input(s) - 1 Stereo Pair
Bluetooth Input - Yes - aptX HD and AAC
Optical Input(s) - 1 (24-bit, 192kHz)
Coaxial Input(s) - 1 (24-bit, 192kHz)
USB Digital Input - 1 x USB Type-B
DAC Chip - ES9028 PRO
File Limit Support (PCM) - 32-bit, 768kHz
Headphone Amp Output Power - 765mW (16Ω - Unbalanced) / 2.8W (16Ω - Balanced)
Headphone Amp Signal-to-Noise Ratio - (Balanced) > 110dB dB
Headphone Amp THD - (Balanced) < 0.004 %
Headphone Amp Frequency Response - 20 - 20,000Hz (+ 0dB, - 0.2dB)
Headphone Amp Channel Separation - > 86dB
Fixed Analogue Output(s) - 1 x RCA Pair, 1 x XLR Pair
Maximum Power Consumption - 30 W
Dimensions (W x H x D) - 215 x 73 x 247 mm
Headphone Impedance - 16 - 300 Ω
Weight - 3.2 kg
