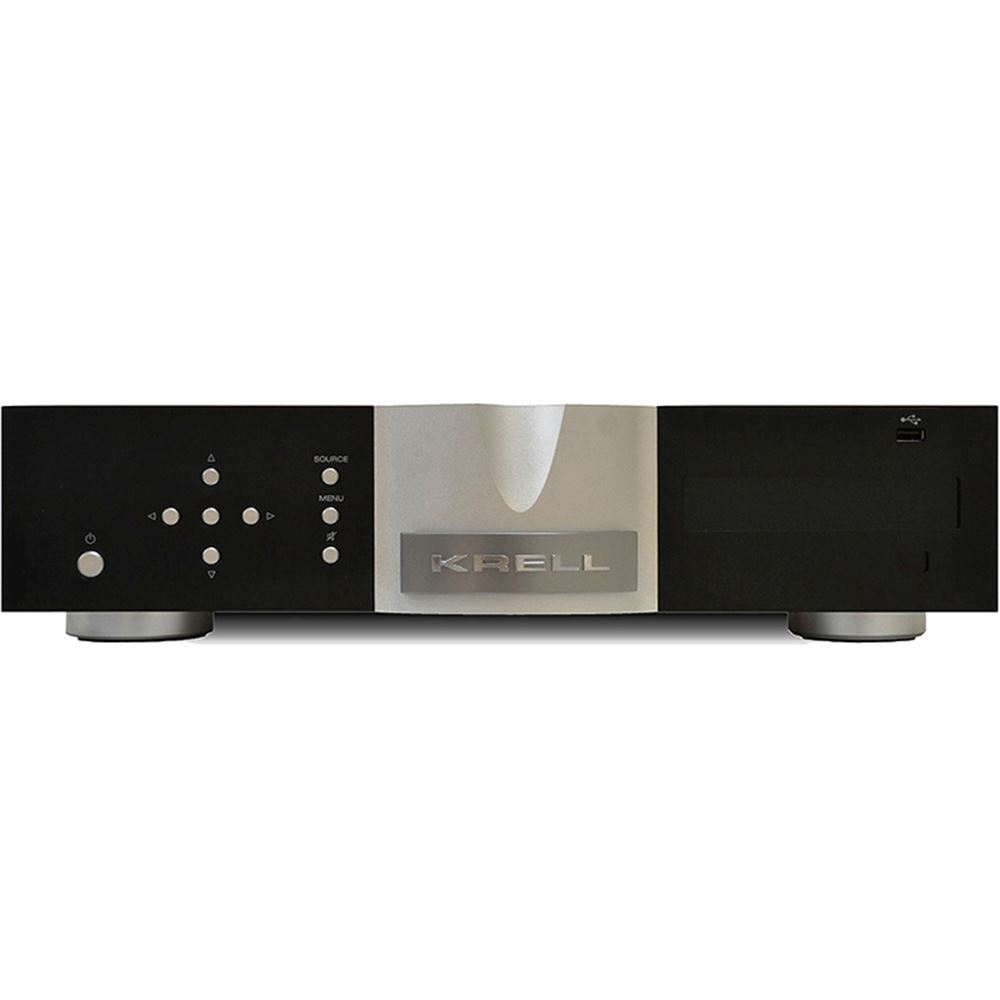

Krell Digital Vanguard SS 400w Amplifier ...Upgraded Digital Model with USB, Ethernet Streaming and Bluetooth
The Krell Digital Vanguard’s amplifier section incorporates a massive power supply with a 750 VA toroidal transformer and 80,000 microfarads of storage capacitance. The tremendous amount of energy on tap provides 200 watts per channel into 8 ohms and 400 watts into 4 ohms. Two quiet, thermostatically controlled fans permit the use of a surprisingly compact chassis.
The preamplifier section of the Vanguard borrows its balanced, fully discrete Class A circuit concepts from Krell’s top-of-the-line Illusion preamplifiers. Krell’s Current Mode technology is employed to assure unequalled signal bandwidth, easily enough to handle the latest high-resolution PCM and DSD audio sources without impacting high-frequency response and detail.
Packed with many of Krell’s most musical-sounding technologies, the elegant chassis is living-room-friendly. Yet it has enough power to achieve incredible, lifelike dynamics with any speaker.
The front-panel menu system provides configuration features such as input naming and input trim. Theatre Throughput mode lets the Vanguard serve as the core of a surround-sound system without sacrificing two-channel sound quality. Analog Inputs include three stereo RCA and one stereo balanced XLR. High-quality WBT speaker cable terminals provide a secure, electrically ideal connection.
A key feature for the Digital Vanguard is its digital module, which includes USB, HDMI inputs and output, coax and optical digital inputs; Ethernet music streaming controlled through dedicated iOS and Android apps; and Bluetooth wireless for convenient streaming from phones, tablets and computers.
The Vanguard also offers features that make it perfect for custom installation, such as 3.5mm jacks for IR input and 12-volt trigger input and output, as well as optional rack-mount ears. Additionally, the unit can be controlled with home automation systems or the Krell web server through its Ethernet connection.
Digital Vanguard Specifications
Digital Upgrade Module Adds...
1) Coaxial and HDMI inputs support PCM up to 24-bit/192kHz. optical input up to 24-bit/96kHz
2) USB and Network streaming support MP3, AAC, WMA, WAV(PCM), FLAC, ALAC up to 192kHz
3) Bluetooth streaming supports A2DP, AVRCP, HFP, HSP
1 pr. balanced via XLR connectors
3 pr. single-ended via RCA connectors
1 pr. speaker outputs via WBT gold-plated binding posts
1 remote IR detector input via 3-conductor 3.5 mm connector
1 12 VDC trigger input via 2-conductor 3.5 mm connector
1 programmable 12 VDC trigger output (300 mA maximum current) via 2-conductor 3.5 mm connector
Balanced: 95 kO
Single-ended: 47.5 kO
20 Hz to 20 kHz +0, –0.01 dB
<2 Hz to 150 kHz +0, –3 dB
>90 dB, wideband, unweighted, at maximum gain, referred to full power output
>97 dB, “A”-weighted
Single-ended or balanced: 160 mV RMS
Total harmonic distortion
<0.015% at 1 kHz, at 200 W, 8 O load
<0.13% at 20 kHz, at 200 W, 8 O load
200 W RMS per channel at 8 O
400 W RMS per channel at 4 O
113 V peak to peak
40 V RMS
16 A peak
<0.066 O at 20 Hz
<0.075 O, 20 Hz to 20 kHz
>121 at 20 Hz, referred to 8 O
>106, 20 Hz to 20 kHz, referred to 8 O
Standby: 12 W
Idle: 70 W
Maximum: 1300 W
Standby: 41 BTU/hr
Idle: 239 BTU/hr
Maximum: 4436 BTU/hr
17.1 in W x 4.15 in H x 17.5 in D
434 mm W x 105 mm H x 445 mm D
Unit only: 39 lb [17.7 kg]
As shipped: 47 lb [21.3 kg]
