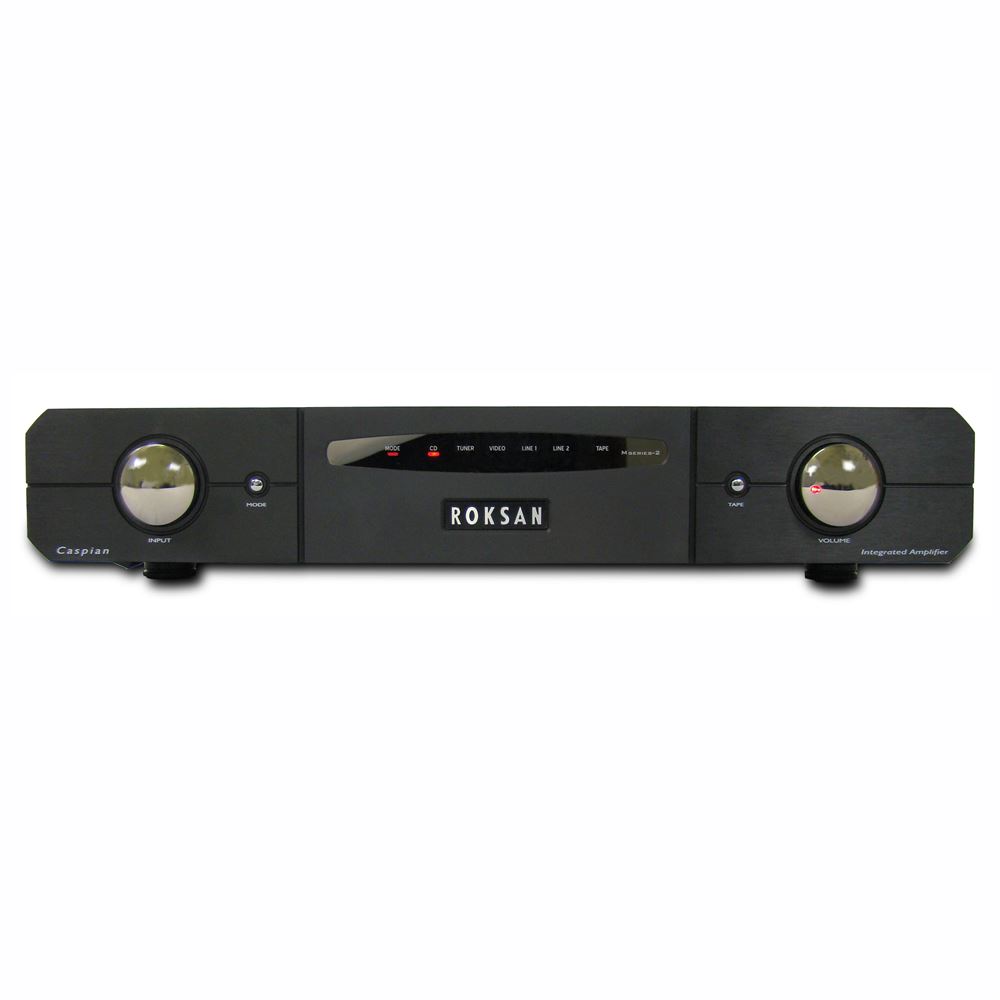

Ex Display Roksan Caspian M2 Integrated HiFi Amplifier.
The Roksan M2 Integrated Amplifier advances the performance of its class of amplifier to a new level. The ease with which the M2 negotiates the loudspeaker load through even the most delicate yet demanding musical passages is almost unbelievable from such an elegant, pure looking amplifier. Its control and authority appears to be backed by a state of the art power house!
Resolution of detail is so harmonic and full of emotion that is reminiscent of our world acclaimed Roksan L1.5 reference preamplifier. Of course pedigree has played an important role but the relentless refinements, tests and never ending demands are what made this project come to life and result in such success.
We are proud to present the M2 Integrated Amplifier alongside the M2 CD Player; together these two are perhaps the most iconoclastic electronic components from Roksan yet.
The M2 Integrated Amplifier is also available in a limited 'Black Edition'. The controls have been changed to an attractive black finish, and the red LEDs to blue - further adding to the elegance and beauty of this fantastic sounding amplifier.
Independent Analogue Output stage Power Supply
Output protection with high current relays
Independent Preamplifier stage Power Supply
Supplied with the Roksan Remote Control
Thermally controlled fan assisted heat-sink cooling
-20dB mute function
350VA ultra low noise, Power section Toroidal transformer
60VA ultra low noise, Pre section Toroidal transformer
The M2 Integrated amplifier’s independent power supplies combined with fully symmetrical complimentary circuit design ensure the amplifier uncovers even the most delicate detail and presents it majestically.
5 Line & Tape, RCA Gold-Plated
(CD Input Switchable to Gold-Plated XLR)
Input Impedance: 47 kO
Input Sensitivity (85W): Line 240mV
Gold Plated RCA Tape
Gold Plated RCA Preamplifier
240mV (Tape Out)
700mV (Pre Out)
Power Outputs: Loudspeaker, L & R
85 Watts Into 8O, Both Channels Driven
125 Watts Into 4O, Both Channels Driven
350VA Ultra Low Noise Toroidal Transformer,
60VA Ultra Low Noise Transformer
Preamp Section Toroidal,
5 Regulated Supply Rails
Current Output: 60 Amps Peak to Peak
Damping Factor: 160 (8O)
Frequency Response: -3dB, <1Hz – 90kHz
40dB Overall (Pre & Power)
30.7dB Power Amplifier
Harmonic Distortion: 0.002% 1kHz, 0.015% 20kHz 10W - 8O
0.0025% 1kHz, 0.03% 20kHz 50W - 8O
Signal-to-Noise: Line 108dBa (ref. 500mV) 85dBa (ref. 1W, 8O)
Power Source: 220V – 240V 50Hz / 60Hz
(via Mains Inlet Filter)
Power Usage: <230 W
432 x 330 x 70mm (W x D x H)
432 x 330 x 80mm (Incl. Feet)
Weight: 13 kg
