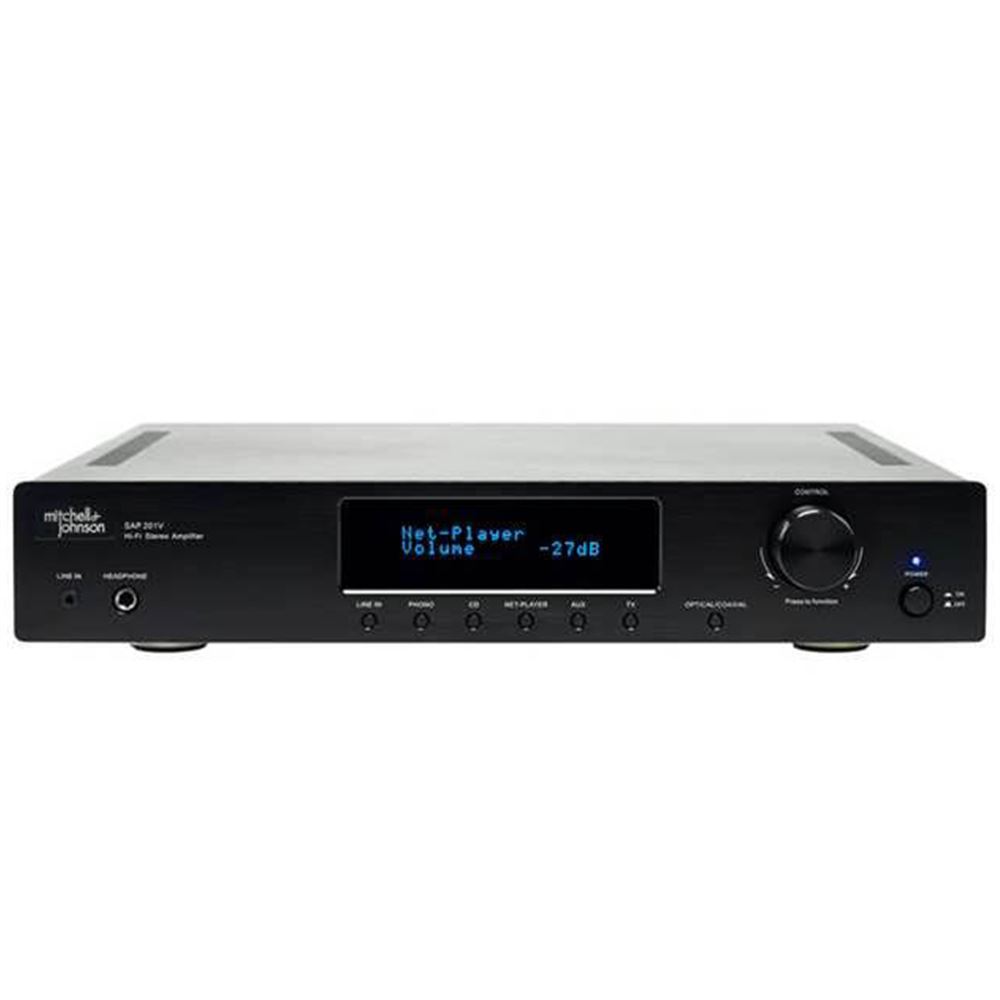

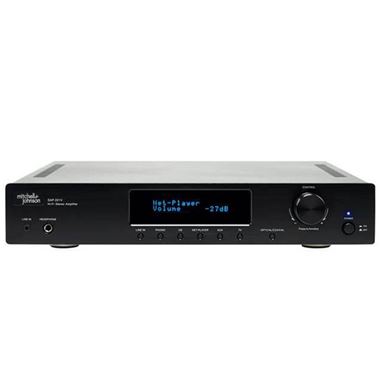

Mitchell and Johnson SAP-201V Digital Amplifier.
Mitchell & Johnson SAP-201V Digital Amplifier - A solidly built stereo amplifier featuring audiophile grade components throughout including a toroidal transformer, a feature not usually found in budget amps. It also has a built-in Wolfson Micro WM8761 chip making this amp one of the first in its price category to offer a built in DAC. This amplifier performs well above what would usually be expected from a product of this price. Needs to be heard to be believed!
Rated Output Power
40 W at 8 ohms, 2 ch driven, 1 kHz, 0.8 % THD (IEC)
50 W at 4 ohms, 2 ch driven, 1 kHz, 0.8 % THD (IEC)
Dynamic Power
150W
THD (Total Harmonic Distortion)
0.08 % (1 kHz 1 W)
Damping Factor
60 (Front'1 kHz'8 )
Input Sensitivity and Impedance
250 mV/47 k(LINE)
6.5 mV/47 k(PHONO)
Output Level and Impedance
250 mV/47k(REC OUT)
Phono Overload
60 mV (MM 1 kHz 0.5 %)
Frequency Response
20 Hz-50 kHz/+1 dB-3 dB (LINE)
+14 dB, -14 dB, 100 Hz (BASS)
Power Consumption
Max 250W
Dimensions
(WxHxD) : 430 x 80 x 283 mm
Weight
6.3 kg
Go Back Download Spec Sheet
Tone Control
+14 dB, -14dB, 10 kHz (TREBLE)
+0 dB, -14 dB (BALANCE)
Signal to Noise Ratio
>85dB (LINE, IHF-A) 61 dB (PHONO, IHF-A)
Speaker Impedance
4 ohm, 8 ohm, 16 ohm
Digital Inputs
OPTICAL 1 (Rear), COAXIAL 1 (Rear)
Digital to Analog Converter
Wolfson Micro WM8761 upto 24 bit 192kHz sampling rate
Analog Inputs
PHONO/CD/NET-PLAYER/AUX/TV (REAR) LINE-IN (FRONT)
Analog Outputs
REC OUT
Headphones
1 x 1/4" (FRONT)
Power Supply
AC 230V, 50/60 Hz toroidal audio grade PSU
