Roksan RPM Reference Speed Control for Xerxes 20 Plus turntable. Available with Online Finance and Free Delivery.

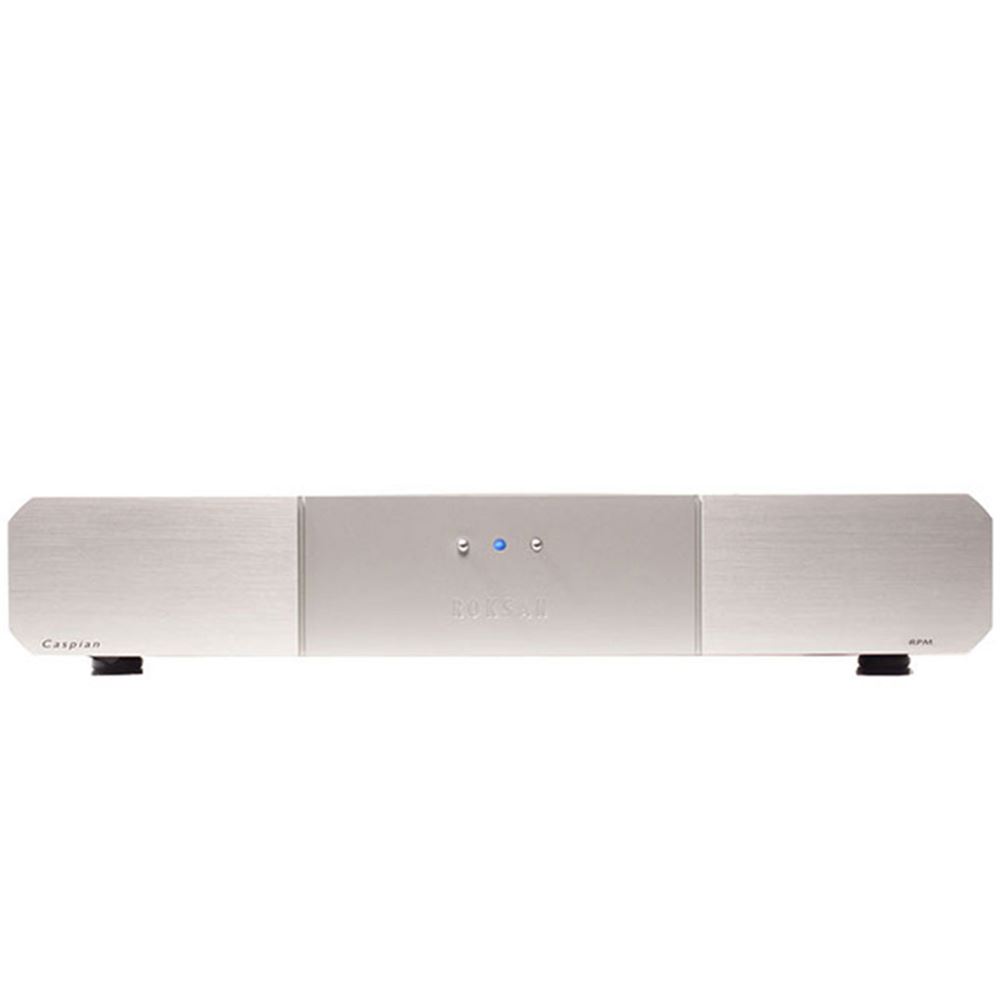

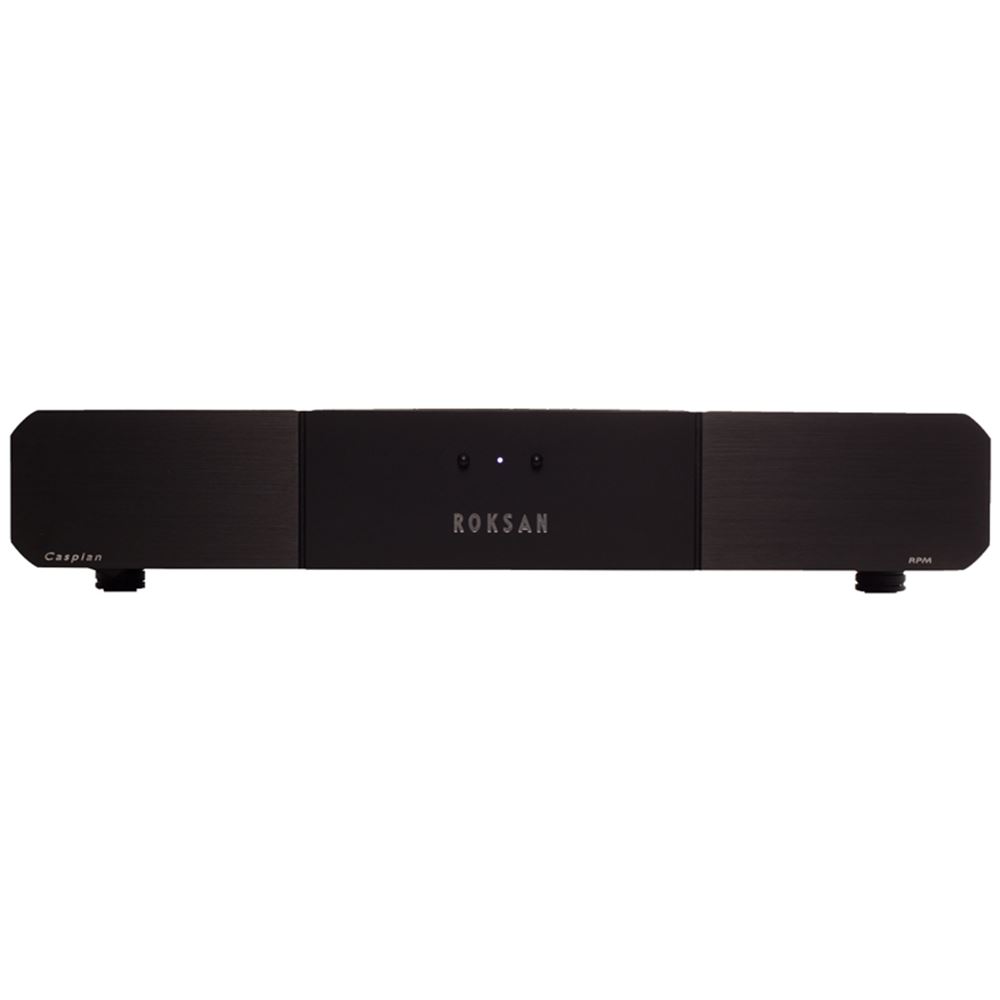

The RPM is the reference class high-specification, ultra-accurate statement speed control for use with the Xerxes 20+. Consisting of an entirely new and highly advanced digital speed control PCB and audiophile-grade components, The RPM represents a signi cant upgrade from the previous and long-established reference speed control as featured in the discontinued DX2.
Featuring a very high quality crystal speed control system, it maintains pitch perfect speed stability for both 33/45rpm. One new feature of the RPM is its ability – thanks to the new advanced digital speed control PCB – to either increase or decrease the speed (up to 6.25% either way). This is a very useful addition for customers in areas or countries for unstable or poor currency voltage to attain the exact, correct speed.
FEATURES
Compatible with both Moving Magnet and Moving Coil cartridge designs.
Three switchable gain level settings.
Top-level audiophile grade components used throughout.
Features dedicated DS1.5 power supply module to feed a smooth, high-quality DC signal to the phono ampli er module.
High quality Caspian M Series chassis and front plate design
SPECIFICATIONS
Output voltage (33rpm)
16Vrms
Output voltage (45 rpm)
16Vrms
Phase
0 and 90 deg
DC offset
<10mV
THD + N
<0.1%
Output impedance
<0.1 Ohms
Voltage Supply
Requires +26, 0, -26 Vdc (internal DS1.5 power supply)
