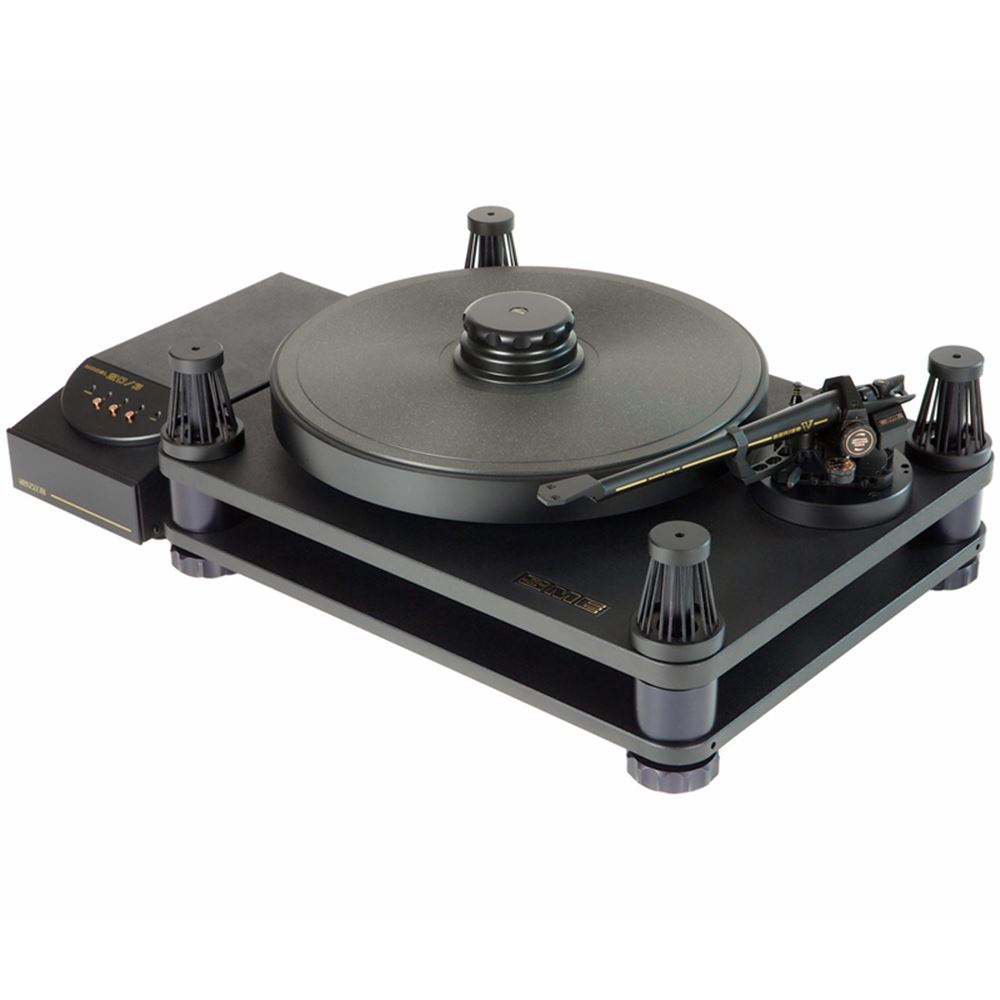

The SME Model 20/3 turntable is available with or without the matching SME series V GPD tonearm.
A turntable should address the problems of extraneous vibrations. These emanate from numerous sources including air and structural vibration from loudspeakers, groove modulation, stray electrical fields and mechanical imperfections in moving parts. In the SME Model 20/3, superb instrument quality machining is allied with fundamental physics. The higher the mass and stiffness of a body the less it will flex and vibrate; the duration of a vibration can be shortened by suitable damping.
The SME Model 20/3 weighs approximately 28.6Kg (63lb), significant in relation to its size because it is density that matters. For example, the same weight of metal spread over a large enough area would be aluminium foil! The sub-chassis measures only 440mm (17 5/16”) by 350mm (13 ¾”) but weighs 11Kg (24lb). Its thickness 16mm (5/8”) resists flexing at low frequencies whilst high frequency resonance is attenuated by efficient extensional damping.
No sonic footprint, the sub-chassis is hung on 80 strands of rubber in the form of 40 purpose moulded ‘O’ rings. An ingenious method of anchorage allows them to be removed or replaced instantly.
A large centrally placed fluid-damper disciplines sub-chassis movement with a pleasing sense of security when handling records on and off the platter, offering a resistive ground-path for acoustic signals.
In addition to a cartridge’s electrical output, mirror image acoustic signals reacted in the arm and record, will pass into the sub-chassis in the course of dissipation. However the usual closed loop design does not address the problem of their differing phase so in the Model 20/12 the structural interfaces concerned have received special attention to provide paths of the required impedance.
This control of vibration is fundamental to the design of the player and goes much of the way to explaining the stunning tonal and dynamic neutrality that it exhibits.
The turntable is driven by a 3 phase, brushless outrunner motor with 8-pole Neodymium magnets and 3 integrated Hall effect sensors and virtually vibrationless by reason of its 2.5 kg (5.5 lbs) weight as well as being isolated on urethane mounts that are adjustable for accurate belt positioning.
The electronic controller uses a high performance microprocessor, optimised for motor control. Closed loop speed control is implemented using a proportional plus integral (PI) algorithm. Fine pitch speed adjustment allows increments/decrements of +/-0.01% of selected speed. Speed ranges: 33.3, 45 & 78 rpm.
Dimensions: 440 x 350 x 172mm
Net weight: 31kg (68lb)
Shipping weight: 45kg (100 lbs)
